Thin Flat Vacuum Suction Cups ZP2
As a leading China manufacturer, our factory offers Customized Thin Flat Vacuum Suction Cups ZP2 (ø10-30mm). Featuring a grooved "MT" structure, Commaelec supplier-direct solution prevents deformation of films and thin sheets. We stock NBR and conductive silicone, with all-stainless steel parts available for the lithium battery industry.
Click and Start the Selection
》Return to Product Information

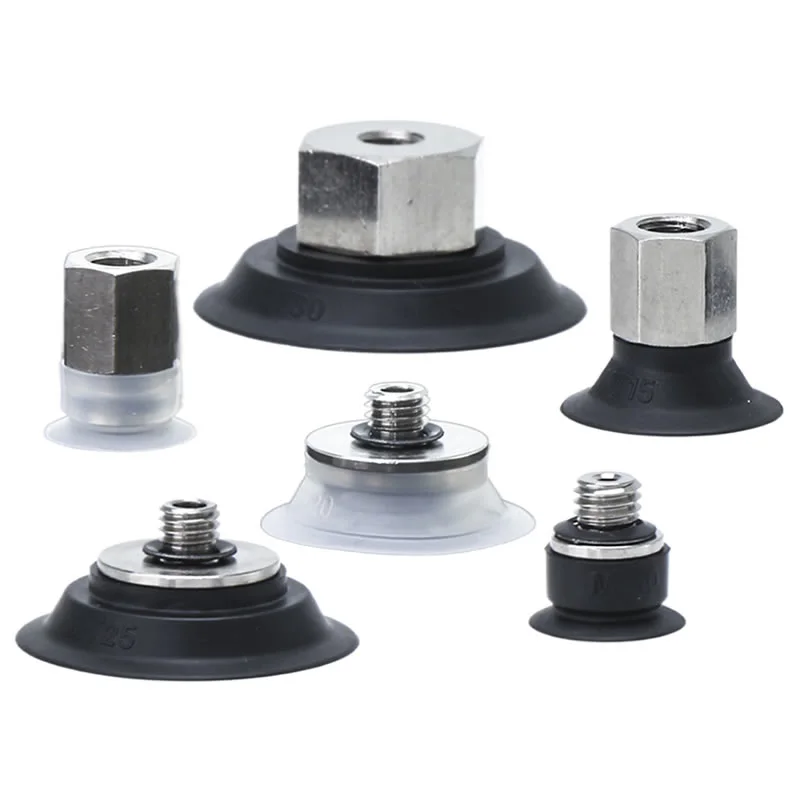

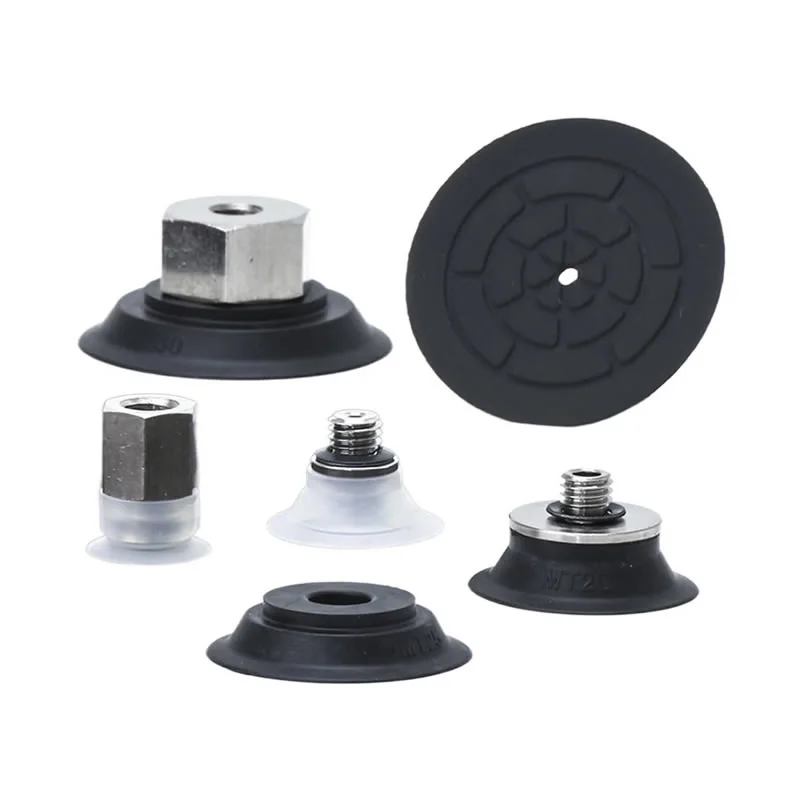

Thin Flat Vacuum Suction Cups ZP2

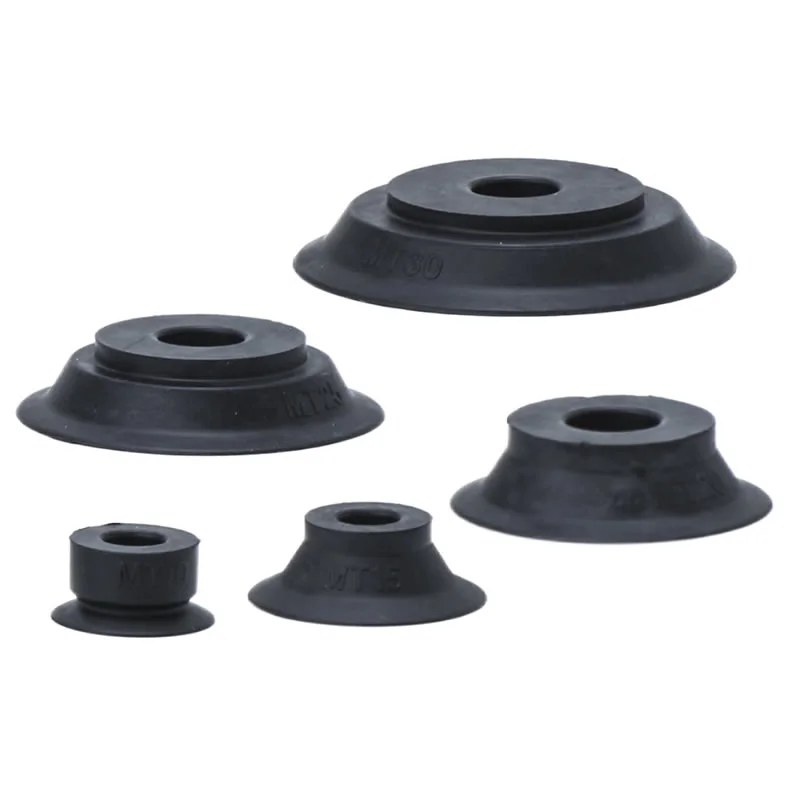

ZP2 Series Thin Flat Vacuum Pad Unit
ZP2-T Series With Adapter Thin Flat Vacuum Pad
Description
How to Order
Specifications / Material
Applications
Resource
The Thin Flat Vacuum Suction Cups ZP2 are precision components within pneumatic gripping systems, specifically designed for handling thin and easily deformable workpieces. In industrial specifications, they typically bear the structural code "MT, " signifying the incorporation of a specialized grooved design within their internal structure.
Product features: This suction cup effectively prevents deformation of flat workpieces during adsorption, making it ideal for thin sheets, films, and other easily deformable materials.
Specifications: The suction cup is available in various diameters, including φ10, φ15, φ20, φ25, and φ30.
Suction cup materials: Common options include NNBR (nitrile rubber) and GS (conductive silicone rubber), with each material tailored to specific working environments and part requirements.
Application fields: Thin Flat Vacuum Suction Cups ZP2 is widely used in manufacturing, automated production lines, robotics and logistics, etc. It can be used to carry light or medium weight flat objects such as glass, plastic and metal.
FAQ
What materials are available and what are their differences?
Thin Flat Vacuum Suction Cups ZP2 are available in several materials to match real working conditions:
NBR: cost-effective, good wear resistance for general use
Silicone: excellent heat resistance and non-marking, ideal for sensitive surfaces
PU (Polyurethane): high durability for high-cycle operations
FKM (Fluororubber): strong chemical and oil resistance
EPR: suitable for specific environmental requirements
Commaelec ensures consistent material quality and supports customization for special applications (e.g., anti-static).
What workpieces are thin flat suction cups best suited for?
Smooth, flat surfaces such as metal sheets, glass, plastic panels
Thin or lightweight workpieces requiring stable, uniform contact
Applications where minimal deformation and precise positioning are needed
The thin flat design increases contact area, improving sealing and reducing air leakage.
What is the temperature resistance range?
Typical ranges (depending on material):
NBR: -10°C to 80°C
Silicone: -40°C to 200°C
PU: -20°C to 80°C
FKM: up to ~200°C with strong chemical stability
Commaelec can recommend suitable materials based on your actual temperature and environment.
Can they be used with vertical or horizontal vacuum entry?
Yes. Thin Flat Vacuum Suction Cups ZP2 support flexible installation:
Vertical vacuum entry (standard for compact setups)
Horizontal/lateral entry for space-limited systems
Compatible with adapters and buffer brackets
Commaelec provides multiple connection options to fit different equipment layouts.
How to properly maintain them to extend lifespan?
Regularly check for wear, cracks, or deformation on the sealing lip
Keep surfaces clean to avoid dust affecting sealing performance
Avoid excessive vacuum pressure or misalignment
Use buffering mounts to reduce impact in high-speed operations
Replace worn cups in time to maintain system stability

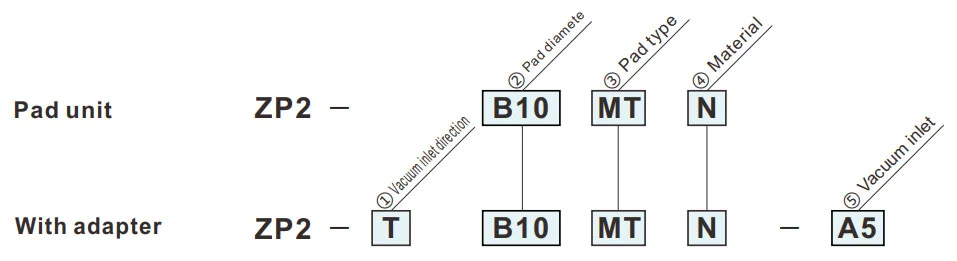

How to Order
- For adsorption of thin sheets or film. Adsorption surface with groove.
- Deformation of the flat surface during adsorption is reduced.
- Not suitable for transferring work pieces which apply a load.
- Wrinkling may be generated depending on the sheet thickness.
- Confirm the thickness before use.
| ①Vacuum inlet direction | |
| T | Vertical |
| ③Pad type | |
| MT | Thin flat (With groove) |
| ②Pad diameter(mm) | |
| B10 | ø10 |
| B15 | ø15 |
| B20 | ø20 |
| B25 | ø25 |
| B30 | ø30 |
| ④Material | |
| N | NBR |
| S | Silicone rubber |
| U | Urethane rubber |
| F | FKM |
| GN | Conductive NBR |
| GS | Conductive silicone rubber |
Green symbol is customized models.
| ⑤Vacuum inlet | |
| H5 | M5x0.8 (Male) |
| B5 | M5x0.8 (Female) |
Dimensions(mm)
Green symbol is customized models.
MT
Thin flat (With groove)
| Model | øA | øB | øC | øD | øE | |||
|
② Pad dia. |
③ Pad type |
④ Pad Material |
||||||
| ZP2 | B10 | MT |
N S U F GN GS |
10 | 11 | 8.5 | 6 | 4 |
| B15 | 15 | 16 | ||||||
| B20 | 20 | 21 | 13.5 | 10 | 6 | |||
| B25 | 25 | 26 | 15 | |||||
| B30 | 30 | 31 | 18 | |||||
Model for refer: ZP2-B10MTN
Adapter Mounting Dimensions
Applicable pad: B10MT/B15MT
Applicable pad: B20MT/B25MT/B30MT
ZP2-T
Vertical
H5
| Model | øA | øB | øC | D | Adapter | |||||
|
① Vacuum inlet direction |
② Pad dia. |
③ Pad type |
④ Pad Material |
⑤ Vacuum inlet |
||||||
| ZP2 | T | B10 | MT |
N S U F GN GS |
H5 | 10 | 11 | 8 | 1.5 | ZP2A-M02P |
| B15 | 15 | 16 | ||||||||
| B20 | 20 | 21 | 14 | 2.5 | ZP2A-M03P | |||||
| B25 | 25 | 26 | ||||||||
| B30 | 30 | 31 | ||||||||
Model for refer: ZP2-TB10MTGS-H5
ZP2-T
Vertical
B5
| Model | øA | øB | C | Adapter | |||||
|
① Vacuum inletdirection |
② Pad dia. |
③ Pad type |
④ Pad Material |
⑤ Vacuum inlet |
|||||
| ZP2 | T | B10 | MT |
N S U F GN GS |
B5 | 10 | 11 | 8 | ZP2A-M04 |
| B15 | 15 | 16 | |||||||
| B20 | 20 | 21 | 14 | ZP2A-M07 | |||||
| B25 | 25 | 26 | |||||||
| B30 | 30 | 31 | |||||||
Model for refer: ZP2-TB10MTGS-B5
Pad Material and Characteristics
⚪:Little or no influence △:Can be used depending on conditions X:Not suitable
|
Material
Characteristics
|
Symbol |
Durometer HS (±5°) |
Color of rubber |
Operating temperature range (°C) |
Oil resistance gasoline |
Oil resistance benzol |
Base resistance |
Acid resistance |
Weatherability |
Ozone resistance |
Abrasion resistance |
Waterproof |
Solvent resistance (Benzene, toluene) |
Application |
| NBR | N | 50 | Black | 0 ~ 120 | ⚪ | X | △ | △ | X | X | ⚪ | △ | X | Transfer of general work, Corrugated board, Veneer plate, Iron plate and others |
| Silicone rubber | S | 45 ~ 50 | White | -30 ~ 200 | X | X | △ | X | ⚪ | ⚪ | X | △ | X | Semiconductor, Removing from die-casting, Thin work, Food processor |
| Urethane rubber | U | 50 ~ 60 | Brown | 0 ~ 60 | ⚪ | X | X | X | △ | ⚪ | ⚪ | X | X | Corrugated board, Iron plate, Veneer plate |
| FKM | F | 60 | Black | 0 ~ 250 | ⚪ | ⚪ | X | ⚪ | ⚪ | ⚪ | △ | ⚪ | ⚪ | Chemical work |
| Conductive NBR | GN | 50 ~ 65 | 0 ~ 100 | △ | X | △ | X | △ | X | △ | △ | X | General work of semiconductor (Static electricity resistance) | |
| Conductive silicone rubbe | GS | 50 ~ 60 | -10 ~ 200 | X | X | △ | X | ⚪ | ⚪ | X | △ | X | Semiconductor (Static electricity) |
The above table covers only general characteristics of subject rubber materials. Blue symbol is customized models .
Application outline of pneumatic components (vacuum suction cup) in various industrial fields
I. Core strengths
II. Extraction of applications by industry
A. Medicine and medical industry
A.1：Core requirements: Clean and pollution-free (FDA/GMP compliant), gentle and non-damaging, and cross-contamination prevention
A.2 Key scenarios:
1. Pharmaceutical packaging: drug bottle / pharmaceutical plate / infusion bag pickup (food grade silicone suction cup, no particle shedding)
2. Medical device assembly: surgical instruments/medical catheters/pieces of prosthesis handling (adjustable negative pressure, deformation protection)
3. Biological laboratory: petri dish/centrifuge tube/reagent card transfer (chemical resistant, sterile compatible)
B. Electronics and semiconductor industry
B.1 Core requirements: anti-static (10⁶-10¹¹Ω), precision positioning (error ≤0.01mm), scratch resistance
B.2 Key scenarios:
1. Chip/Semiconductor: wafer handling, chip packaging (porous ceramic/anti-static silicone suction cup, uniform negative pressure to prevent rupture)
2. PCB/Components: Flexible PCB, micro components (0402 resistors) surface-mounted (thin silicone/gel/micro suction cups to prevent wrinkling/tearing)
3. Display: LCD/OLED panel, touch glass grab (high transparent material, no stains and scratches)
C. Automobile and auto parts industry
C.1 Core requirements: large suction (single suction disk ≥500N), multi-specification adaptation (metal/plastic/glass), non-slip
C.2 Key scenarios:
4. Body manufacturing: steel plate / door frame handling welding (large diameter rubber / multi-suction cup array, anti-slip texture)
5. Glass / Interior: Windscreen installation, leather seat surface transfer (temperature resistant silicone / sponge suction cups, deformation protection)
6. Parts: engine cylinder body / gearbox housing grab (vacuum + mechanical lock, anti-fall)
D. Food and packaging industry
D.1 Core requirements: Food grade material (FDA certified), easy to clean, crush resistant
D.2 Key scenarios:
1. Food handling: baked goods / fresh meat / fruit sorting (low suction sponge suction cup, odorless and easy to wash)
2. Packaging automation: packaging bag opening, sterile carton molding (static elimination/ multi-point suction, suitable for thin/hard packaging)
E. Logistics and warehousing industry
E.1 Core requirements: efficient adaptation (multiple specifications of goods), stable pressure, anti-fall
E.2 Key scenarios:
1. Carton handling: e-commerce carton sorting (adjustable suction array, vacuum pressure)
2. Plate/roll: Wood board/plastic film roll transfer (long strip/annular suction cup, uniform adsorption to prevent offset)
F. New energy and special industries
F.1 New energy (lithium battery/pv):
1. Lithium battery plate (anti-static porous suction cup, anti-dust), photovoltaic glass (large suction silicone suction cup, no scratch)
F.2 Printing and paper
1. Paper/printed matter capture (absorbent paper material, slight negative pressure to prevent tearing and ink contamination)
III. Summary of core adaptation logic
| Workpiece characteristics | Pipette adaptation programme | Corresponding industry scenarios |
| Thin / Fragile / Precision | Silicone/ceramic material, micro negative pressure, micro suction nozzle | Electronic semiconductors, pharmaceuticals |
| Heavy items / Large size | Rubber material, large diameter suction cup, multi-suction cup array | Automobiles, logistics panels |
| Health/Prevention of pollution | Food/medical grade silicone, easy to clean structure | Medicine, food |
| Soft / irregular surfaces | Sponge material, deformable suction cup | Car interiors, food |
| Antistatic requirements | Antistatic silicone, ion wind assisted | electronic semi-conductor |
