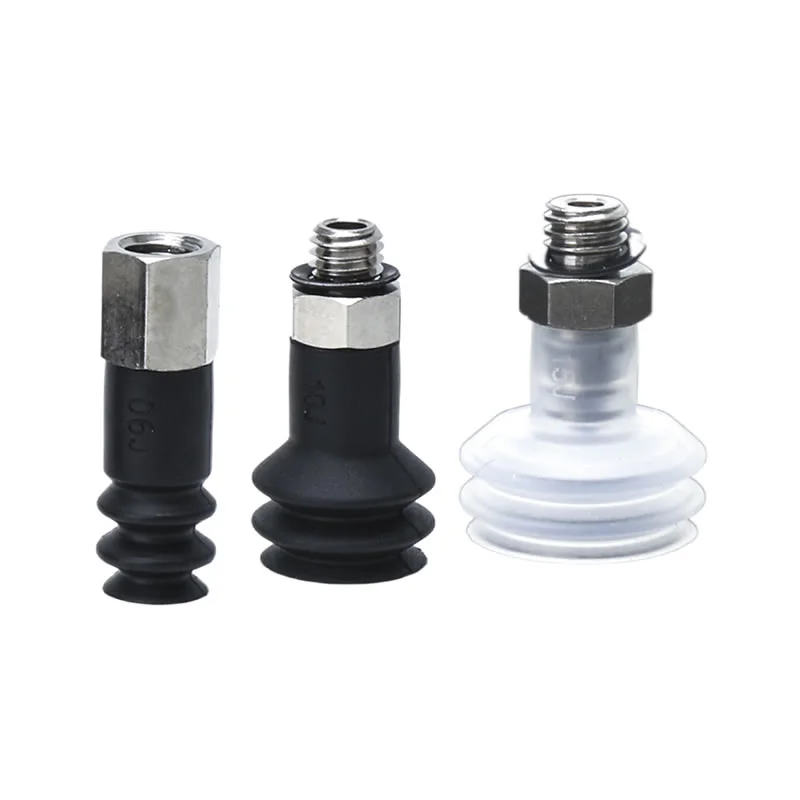

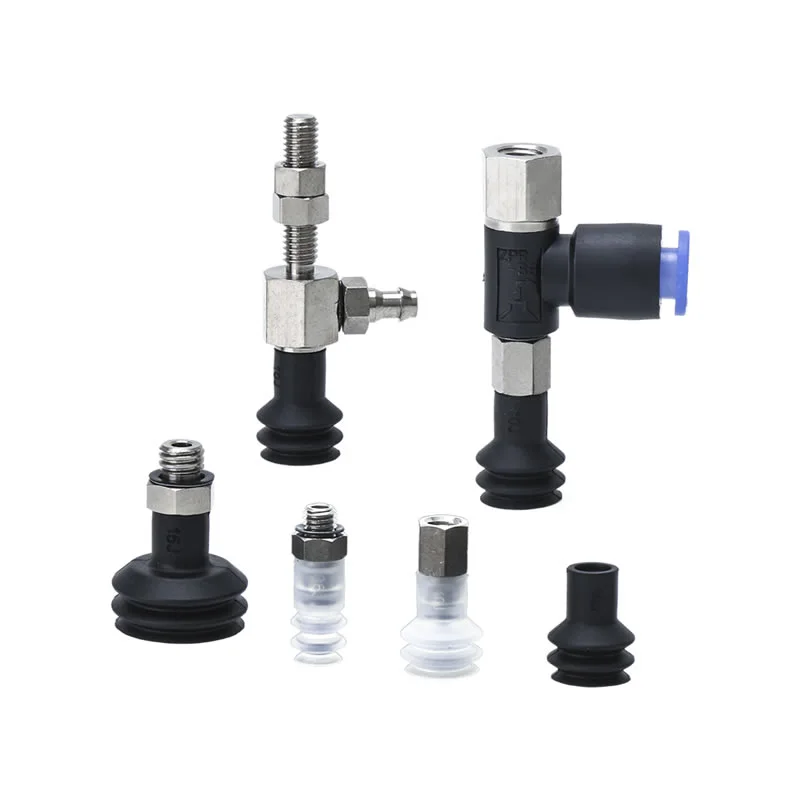

The Bellows Without Lock Ring Vacuum Suction Cups ZP2-J are designed for compact, precise, and adaptable automation applications. They are ideal for small components, irregular parts, and production lines with limited space.
Key Features of ZP2-J Bellows Cups Without a Lock Ring
High Flexibility
Multi-stage accordion design (2.5-layer or 3.5-layer) allows vertical stroke absorption, compensating for height differences and minor misalignments.
Ensures stable gripping on uneven or inclined surfaces.
Supports delicate or irregularly shaped workpieces without causing damage.
No Lock Ring Needed
2.5-layer models do not require a lock ring, simplifying installation and reducing assembly time.
Available in φ6mm, φ10mm, and φ15mm diameters to match different suction requirements.
Maintains reliable adhesion despite the absence of locking hardware.
Mounting Type
Designed for direct or modular integration into robotic arms and automated stations.
Compact structure fits tight spaces on production lines.
Supports efficient material handling in electronics, injection molding, and small metalworking industries.
Material Variety
The Bellows Without Lock Ring Vacuum Suction Cups ZP2-J is manufactured using high-quality silicone, rubber, or polyurethane (PU), offering a combination of exceptional abrasion resistance and flexibility.
Compatible with cleanroom or anti-static environments for electronics manufacturing.
Ensures long-term durability under frequent cycles, maintaining consistent vacuum performance.
What is the difference between ZP2-J and ZP2-ZJ?
ZP2-J
Type: Multi-bellows Bellows Without Lock Ring Vacuum Suction Cups ZP2-J
Lock Ring: Optional; 2.5-layer models do not require a lock ring
Sizes: 2.5-layer (φ6mm, φ10mm, φ15mm), 3.5-layer (φ9mm, φ14mm, φ16mm, φ25mm, φ30mm)
Applications: Works well on inclined surfaces or limited buffer space; ideal for small electronics, injection-molded parts, and compact metal components
Flexibility: High vertical stroke absorption due to accordion design
Mounting: Compact, easy integration into robotic arms and automated stations
ZP2-ZJ
Type: Single-stage or double-stage bellows vacuum cup with a lock ring
Lock Ring: Required for secure mounting
Sizes: Typically larger diameters than ZP2-J; designed for heavier or larger workpieces
Applications: Suitable for slightly larger, heavier, or more rigid objects; commonly used in industrial automation where stability and secure attachment are critical
Flexibility: Moderate stroke absorption; focus on reliable holding rather than extreme vertical compensation
Mounting: Requires lock ring for secure attachment, compatible with standard mounting hardware

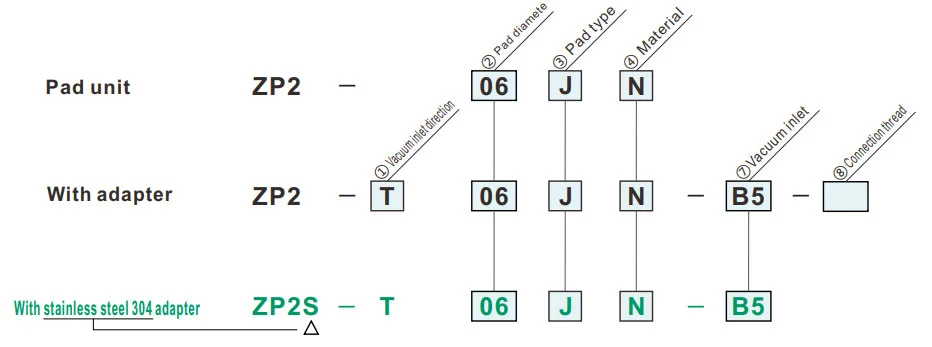

How to Order
- For use where there is no space for the buffer (spring type).
- Work pieces with inclined adsorption surface.
- Applicable for the ZP series adapter.
| ①Vacuum inlet direction | ⑦Vacuum inlet | ⑧Connection thread | ||
| T | Vertical |
|
A5A6 |
— |
|
B4B5 |
— | ||
| R | Lateral |
|
0406 |
A5A6 |
|
B4B5 |
|||
| Y |
|
U4N4U6N6B5 |
A5A6 |
|
|
B5B6 |
|||
| ②Pad diameter(mm) | |
| 06 | ø6 |
| B10 | ø10 |
| B15 | ø15 |
| ③Pad type | |
| J | Bellows (2.5-Stage) |
| ⑦Vacuum inlet | |||
| Male thread | A5 | M5 x0.8 | |
| A6 | M6 x1.0 | ||
| Female thread | B4 | M4 x0.7 | |
| B5 | M5 x0.8 | ||
| Barb fitting | U4 | For ø4 soft tubing | M-5AU-4 |
| N4 | For ø4 nylon tubing | M-5AN-4 | |
| U6 | For ø6 soft tubing | M-5AU-6 | |
| N6 | For ø6 nylon tubing | M-5AN-6 | |
| One-touch fitting | 04 | ø4 | |
| 06 | ø6 | ||
| ④Material | |
| N | NBR |
| S | Silicone rubber |
| U | Urethane rubber |
| F | FKM |
| GN | Conductive NBR |
| GS | Conductive silicone rubber |
reen symbol is customized models.
| ⑧Connection thread | ||
| Male thread | A5 | M5 x0.8 |
| A6 | M6 x1.0 | |
| Female thread | B4 | M4 x0.7 |
| B5 | M5 x0.8 | |

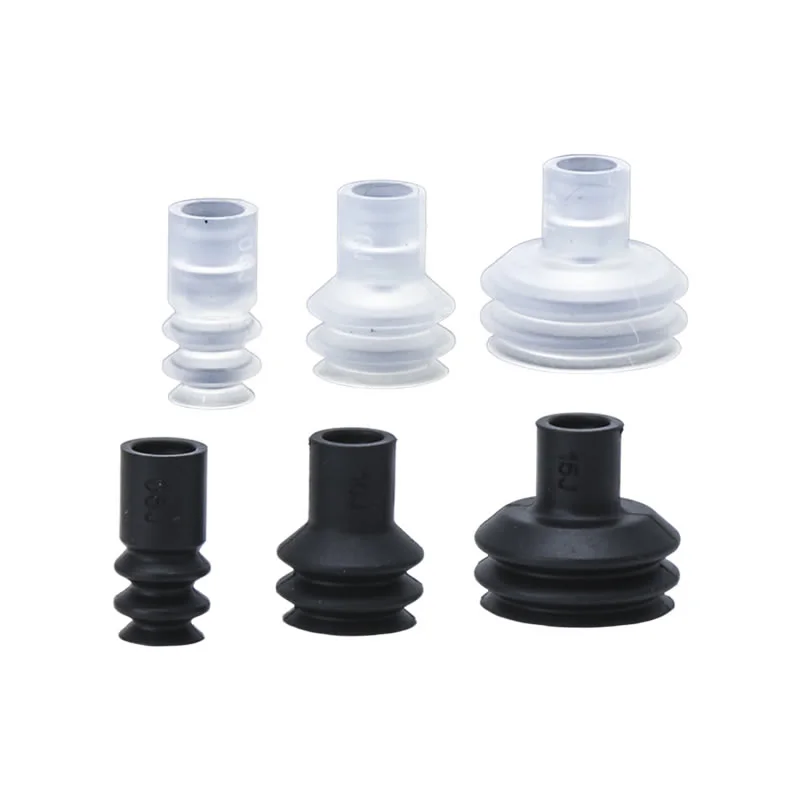

Dimensions(mm)
Green symbol is customized models.
J
Bellows
| Model | øA | øB | øC | |||
|
② Pad dia. |
③ Pad type |
④ Pad Material |
||||
| ZP2 | 06 | J |
N S U F GN GS |
6 | 7 | 8 |
| B10 | 10 | 11 | 12 | |||
| B15 | 15 | 16 | 17 | |||
Model for refer: ZP2-06JN

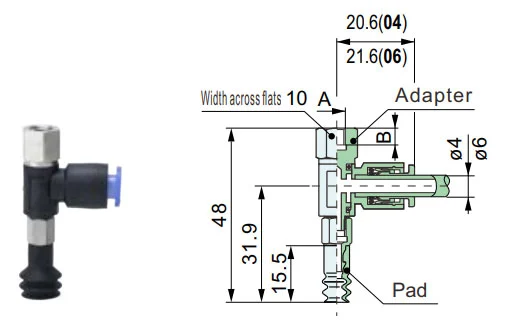

Adapter Mounting Dimensions

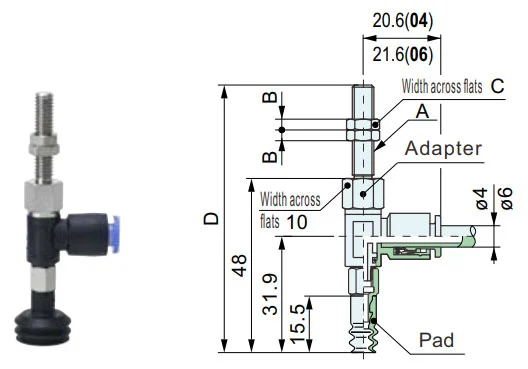

ZP2-T
Vertical
A5, A6
| Model | A | B | C | D | Adapt | |||||
|
① Vacuum inlet direction |
② Pad dia. |
③ Pad type |
④ Pad Material |
⑦ Vacuum inlet |
||||||
|
ZP2 ZP2S |
T |
06 B10 B15 |
J |
N S U F GN GS |
A5 | M5x0.8 | 7 | 3.5 | 22.5 |
ZPT1-A5 ZPST1-A5 |
| A6 | M6x1.0 | 8 | 4.5 | 23.5 |
ZPT1-A6 ZPST1-A6 |
|||||
Model for refer: ZP2-TB10JGN-A5
ZP2-T
Vertical
B4, B5
| Model | A | B | Adapt | |||||
|
① Vacuum inlet direction |
② Pad dia. |
③ Pad type |
④ Pad Material |
⑦ Vacuum inlet |
||||
|
ZP2 ZP2S |
T |
06 B10 B15 |
J |
N S U F GN GS |
B4 | M5x0.8 | 4 |
ZPT1-B4 ZPST1-B4 |
| B5 | M6x1.0 | 5 |
ZPT1-B5 ZPST1-B5 |
|||||
Model for refer: ZP2-TB15JN-B5

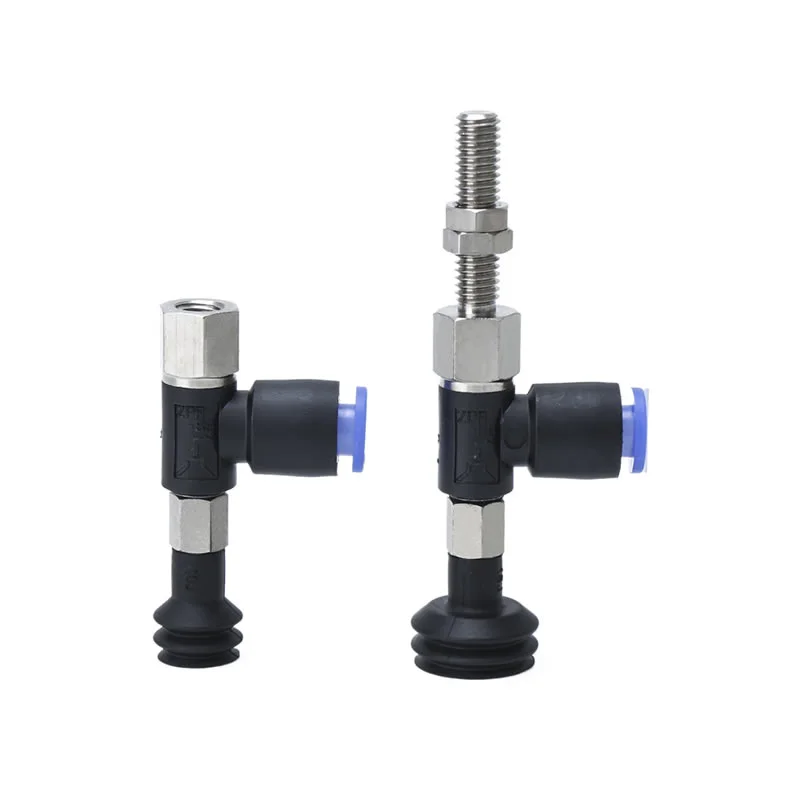

ZP2-R
Lateral
A5, A6
| Model | A | B | C | D | Adapt | ||||||||
|
① Vacuum inlet direction |
② Pad dia. |
③ Pad type |
④ Pad Material |
⑦ Vacuum inlet |
⑧ Connection thread |
⑦ Vacuum inlet |
⑧ Connection thread |
||||||
| ZP2 | R |
06 B10 B15 |
J |
N S U F GN GS |
04 06 |
A5 | M5x0.8 | 4 | 7 | 69 | ZPY1 |
04 06 |
A5 |
| A6 | M6x1.0 | 3 | 8 | 74 | A6 | ||||||||
Model for refer: ZP2-R06JGN-04-A5 Adapter for refer:ZPR1-04-A5
ZP2-R
Lateral
B4, B5
| Model | A | B | Adapt | ||||||||
|
① Vacuum inlet direction |
② Pad dia. |
③ Pad type |
④ Pad Material |
⑦ Vacuum inlet |
⑧ Connection thread |
⑦ Vacuum inlet |
⑧ Connection thread |
||||
| ZP2 | R |
06 B10 B15 |
J |
N S U F GN GS |
04 06 |
B4 | M4x0.7 | 4 | ZPY1 |
04 06 |
B4 |
| B5 | M5x0.8 | 5 | B5 | ||||||||
Model for refer: ZP2-RB10JN-06-B5 Adapter for refer:ZPR1-06-B5

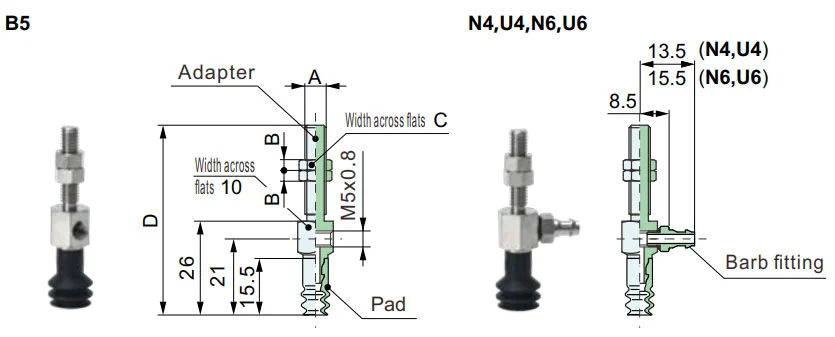

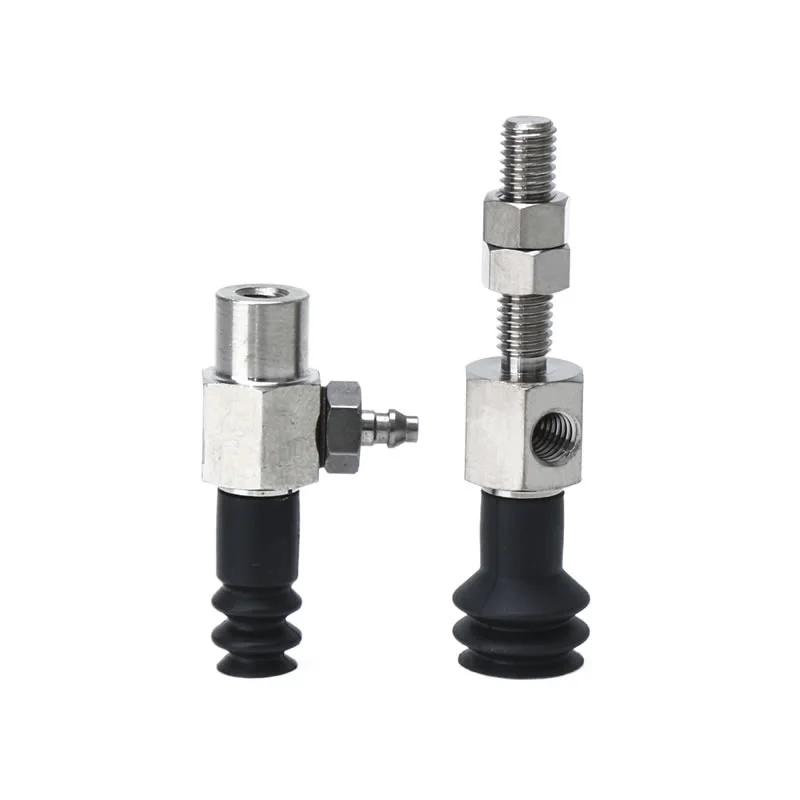

ZP2-Y
Lateral
A5, A6
| Model | A | B | C | D | Adapt | ||||||||
|
① Vacuum inlet direction |
② Pad dia. |
③ Pad type |
④ Pad Material |
⑦ Vacuum inlet |
⑧ Connection thread |
⑦ Vacuum inlet |
⑧ Connection thread |
||||||
| ZP2 | Y |
06 B10 B15 |
J |
N S U F GN GS |
B5 N4 U4 N6 U6 |
A5 | M5x0.8 | 4 | 7 | 47.5 | ZPY1 |
B5 N4 U4 N6 U6 |
A5 |
| A6 | M6x1.0 | 3 | 8 | 53 | A6 | ||||||||
Model for refer: ZP2-YB15JGN-U4-A6 Adapter for refer:ZPY1-U4-A6

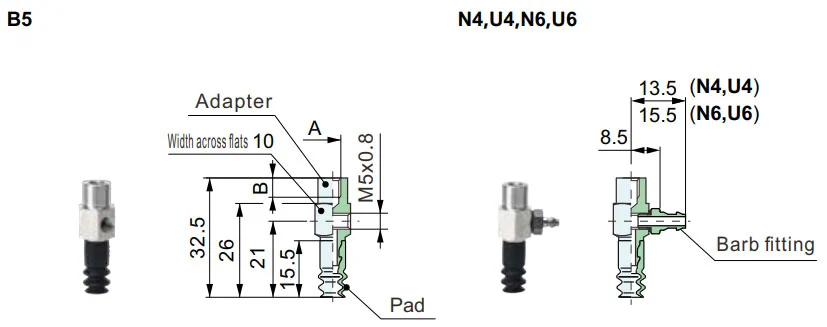

ZP2-Y
Lateral
B4, B5
| Model | A | B | Adapt | ||||||||
|
① Vacuum inlet direction |
② Pad dia. |
③ Pad type |
④ Pad Material |
⑦ Vacuum inlet |
⑧ Connection thread |
⑦ Vacuum inlet |
⑧ Connection thread |
||||
| ZP2 | Y |
06 B10 B15 |
J |
N S U F GN GS |
B5 N4 U4 N6 U6 |
B4 | M4x0.7 | 4 | ZPY1 |
B5 N4 U4 N6 U6 |
B4 |
| B5 | M5x0.8 | 5 | B5 | ||||||||
Model for refer: ZP2-Y06JS-N4-B4 Adapter for refer:ZPY1-N4-B4
Pad Material and Characteristics
⚪:Little or no influence △:Can be used depending on conditions X:Not suitable
|
Material
Characteristics
|
Symbol |
Durometer HS (±5°) |
Color of rubber |
Operating temperature range (°C) |
Oil resistance gasoline |
Oil resistance benzol |
Base resistance |
Acid resistance |
Weatherability |
Ozone resistance |
Abrasion resistance |
Waterproof |
Solvent resistance (Benzene, toluene) |
Application |
| NBR | N | 50 | Black | 0 ~ 120 | ⚪ | X | △ | △ | X | X | ⚪ | △ | X | Transfer of general work, Corrugated board, Veneer plate, Iron plate and others |
| Silicone rubber | S | 45 ~ 50 | White | -30 ~ 200 | X | X | △ | X | ⚪ | ⚪ | X | △ | X | Semiconductor, Removing from die-casting, Thin work, Food processor |
| Urethane rubber | U | 50 ~ 60 | Brown | 0 ~ 60 | ⚪ | X | X | X | △ | ⚪ | ⚪ | X | X | Corrugated board, Iron plate, Veneer plate |
| FKM | F | 60 | Black | 0 ~ 250 | ⚪ | ⚪ | X | ⚪ | ⚪ | ⚪ | △ | ⚪ | ⚪ | Chemical work |
| Conductive NBR | GN | 50 ~ 65 | 0 ~ 100 | △ | X | △ | X | △ | X | △ | △ | X | General work of semiconductor (Static electricity resistance) | |
| Conductive silicone rubbe | GS | 50 ~ 60 | -10 ~ 200 | X | X | △ | X | ⚪ | ⚪ | X | △ | X | Semiconductor (Static electricity) |
The above table covers only general characteristics of subject rubber materials. Blue symbol is customized models .
Application outline of pneumatic components (vacuum suction cup) in various industrial fields
I. Core strengths
II. Extraction of applications by industry
A. Medicine and medical industry
A.1：Core requirements: Clean and pollution-free (FDA/GMP compliant), gentle and non-damaging, and cross-contamination prevention
A.2 Key scenarios:
1. Pharmaceutical packaging: drug bottle / pharmaceutical plate / infusion bag pickup (food grade silicone suction cup, no particle shedding)
2. Medical device assembly: surgical instruments/medical catheters/pieces of prosthesis handling (adjustable negative pressure, deformation protection)
3. Biological laboratory: petri dish/centrifuge tube/reagent card transfer (chemical resistant, sterile compatible)
B. Electronics and semiconductor industry
B.1 Core requirements: anti-static (10⁶-10¹¹Ω), precision positioning (error ≤0.01mm), scratch resistance
B.2 Key scenarios:
1. Chip/Semiconductor: wafer handling, chip packaging (porous ceramic/anti-static silicone suction cup, uniform negative pressure to prevent rupture)
2. PCB/Components: Flexible PCB, micro components (0402 resistors) surface-mounted (thin silicone/gel/micro suction cups to prevent wrinkling/tearing)
3. Display: LCD/OLED panel, touch glass grab (high transparent material, no stains and scratches)
C. Automobile and auto parts industry
C.1 Core requirements: large suction (single suction disk ≥500N), multi-specification adaptation (metal/plastic/glass), non-slip
C.2 Key scenarios:
4. Body manufacturing: steel plate / door frame handling welding (large diameter rubber / multi-suction cup array, anti-slip texture)
5. Glass / Interior: Windscreen installation, leather seat surface transfer (temperature resistant silicone / sponge suction cups, deformation protection)
6. Parts: engine cylinder body / gearbox housing grab (vacuum + mechanical lock, anti-fall)
D. Food and packaging industry
D.1 Core requirements: Food grade material (FDA certified), easy to clean, crush resistant
D.2 Key scenarios:
1. Food handling: baked goods / fresh meat / fruit sorting (low suction sponge suction cup, odorless and easy to wash)
2. Packaging automation: packaging bag opening, sterile carton molding (static elimination/ multi-point suction, suitable for thin/hard packaging)
E. Logistics and warehousing industry
E.1 Core requirements: efficient adaptation (multiple specifications of goods), stable pressure, anti-fall
E.2 Key scenarios:
1. Carton handling: e-commerce carton sorting (adjustable suction array, vacuum pressure)
2. Plate/roll: Wood board/plastic film roll transfer (long strip/annular suction cup, uniform adsorption to prevent offset)
F. New energy and special industries
F.1 New energy (lithium battery/pv):
1. Lithium battery plate (anti-static porous suction cup, anti-dust), photovoltaic glass (large suction silicone suction cup, no scratch)
F.2 Printing and paper
1. Paper/printed matter capture (absorbent paper material, slight negative pressure to prevent tearing and ink contamination)
III. Summary of core adaptation logic
| Workpiece characteristics | Pipette adaptation programme | Corresponding industry scenarios |
| Thin / Fragile / Precision | Silicone/ceramic material, micro negative pressure, micro suction nozzle | Electronic semiconductors, pharmaceuticals |
| Heavy items / Large size | Rubber material, large diameter suction cup, multi-suction cup array | Automobiles, logistics panels |
| Health/Prevention of pollution | Food/medical grade silicone, easy to clean structure | Medicine, food |
| Soft / irregular surfaces | Sponge material, deformable suction cup | Car interiors, food |
| Antistatic requirements | Antistatic silicone, ion wind assisted | electronic semi-conductor |
