Short-type Vacuum Suction Cups ZP2-EU
ZP2 Series Short-type Vacuum Pad Unit
ZP2-T Series With Adapter Short-type Vacuum Pad
Description
How to Order
Specifications / Material
Applications
Resource

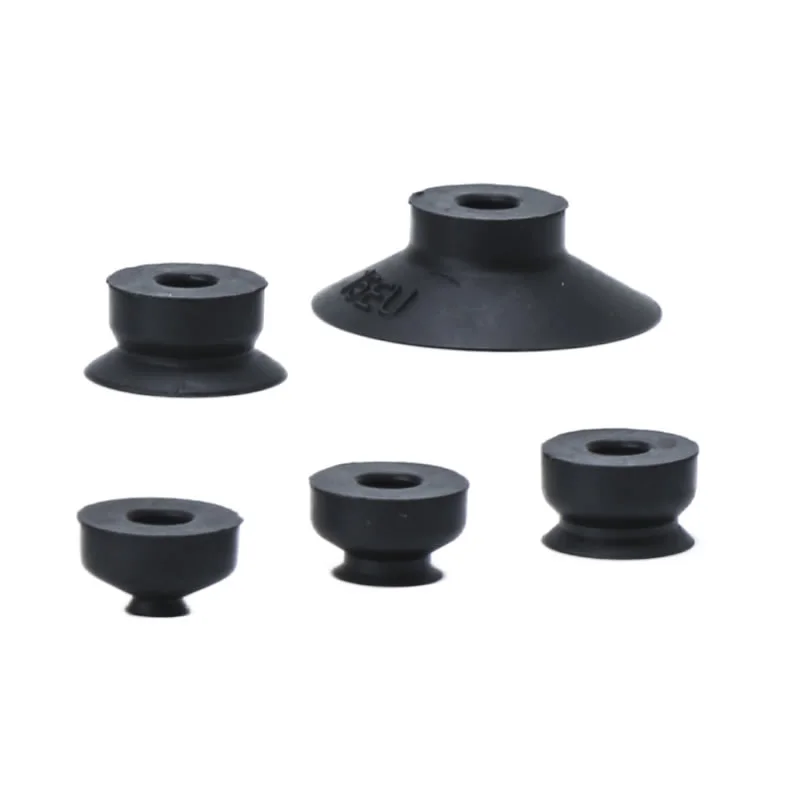

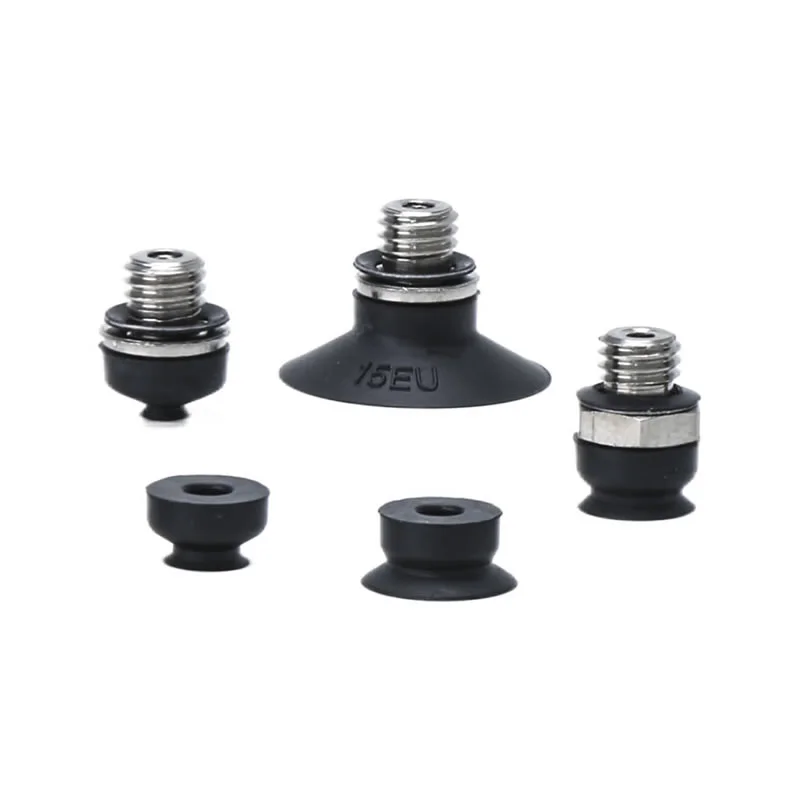

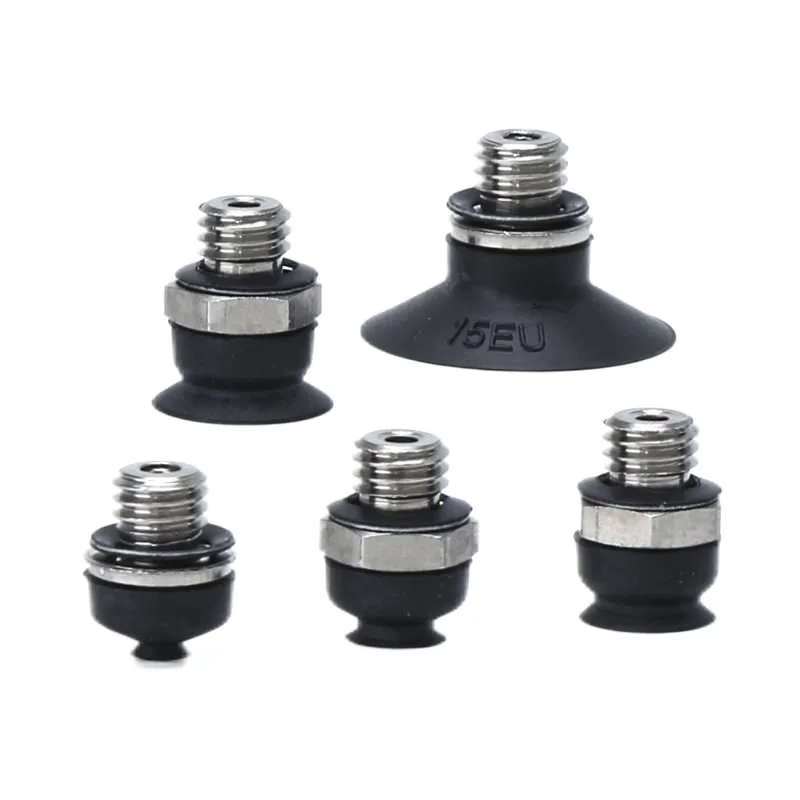

The Short-type Vacuum Suction Cups ZP2-EU is produced by Zhejiang Comma Electric Co., Ltd.; we are one of the leading manufacturers and suppliers in China. ZP2 EU low-profile flat suction cup has the characteristics of small volume and stable adsorption.
Product Features: This compact suction cup features a low profile for space-saving design, ideal for tight spaces. Its flat surface ensures a snug fit against workpiece surfaces, delivering stable adhesion while effectively preventing deformation during operation, making it perfect for precision handling. Select models include anti-static capabilities, meeting the operational requirements of sensitive environments like the electronics industry.
Specifications: The Short-type Vacuum Suction Cups ZP2-EU is available in various diameters, including φ2, φ4, φ6, φ8, and φ15.
Suction cup materials: Commonly used materials include nitrile rubber (NNBR), imported silicone, and anti-static silicone rubber, with each material tailored to specific working environments and part requirements.
Connection options: Available in various types including external threads (A5) and external threads (H5).
FAQ
What are the sizes available?
Short-type Vacuum Suction Cups ZP2-EU are typically available in standard diameters such as φ40, φ50, φ63, φ80, φ100, and φ125.
Smaller sizes: suitable for compact equipment and light parts
Larger sizes: provide stronger suction for bigger workpieces
Comma factory maintains stable stock and also supports customized sizes based on project requirements.
What is the "Short-type"?
The "Short-type" refers to a low-profile, compact structure:
Reduced overall height for space-limited installations
Faster response in high-speed pick-and-place systems
Better stability when mounted in tight robotic or automated setups
This design is especially useful where installation space is restricted but performance cannot be compromised.
What is the difference between EU and other ZP2 types?
ZP2-EU (Short-type): more compact, optimized for European-style equipment and space-saving layouts
Standard ZP2: more general-purpose, with wider structural configurations
EU type often focuses on compactness, standardized interfaces, and quick integration
Comma ensures compatibility and consistent quality across different configurations to meet diverse market needs.
How are they mounted?
Short-type Vacuum Suction Cups ZP2-EU support flexible mounting options:
Internal or external thread connections
Compatible with adapters and buffer brackets
Vertical or lateral vacuum port options
Why Choose Comma?
Strong R&D Capability: Professional team supports customized solutions for different automation needs
One-Stop Supply: Wide product range simplifies procurement and system integration
Flexible Customization: The dimensions, materials, and structure of Short-type Vacuum Suction Cups ZP2-EU can all be customized according to your specific requirements.
Fast Response: Quick technical support and delivery from a trusted

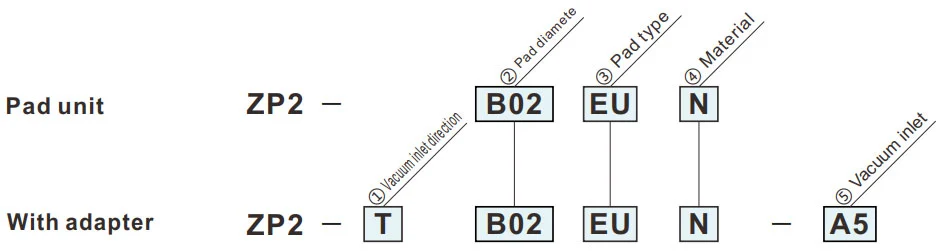

How to Order
- Space-saving in the height direction.
| ①Vacuum inlet direction | |
| T | Vertical |
| ③Pad type | |
| EU | Flat type |
| ②Pad diameter(mm) | |
| B02 | ø2 |
| B04 | ø4 |
| B06 | ø6 |
| 08 | ø8 |
| 15 | ø15 |
| ④Material | |
| N | NBR |
| S | Silicone rubber |
| U | Urethane rubber |
| F | FKM |
| GN | Conductive NBR |
| GS | Conductive silicone rubber |
Green symbol is customized models.
| ⑤Vacuum inlet | |
| A5 |
M5x0.8 (Hexagon O.D.) |
| H5 |
M5x0.8 (Hexagon socket head) |
Dimensions(mm)
Green symbol is customized models.
EU
Flat type
| Model | øA | øB | øC | D | Y | |||
|
② Pad dia. |
③ Pad type |
④ Pad Material |
||||||
| ZP2 | B02 | EU |
N S U F GN GS |
2 | 2.6 | 1.2 | 4 | 0.5 |
| B04 | 4 | 4.8 | 1.5 | |||||
| B06 | 6 | 6.7 | ||||||
| 08 | 8 | 9 | ||||||
| 15 | 15 | 15.7 | 2 | 5 | 1.5 | |||
Model for refer: ZP2-B02EUS
Adapter Mounting Dimensions
ZP2-T
Vertical
A5
| Model | øA | øB | øC | D | E | Y | Adapter | |||||
|
① Vacuum inlet direction |
② Pad dia. |
③ Pad type |
④ Pad Material |
⑤ Vacuum inlet |
||||||||
| ZP2 | T | B02 | EU |
N S U F GN GS |
A5 | 2 | 2.6 | 1.2 | 10 | 6.5 | 0.5 | ZP2A-Z01P |
| B04 | 4 | 4.8 | 1.5 | |||||||||
| B06 | 6 | 6.7 | ||||||||||
| 08 | 8 | 9 | ||||||||||
| 15 | 15 | 15.7 | 2 | 11 | 7.5 | 1.5 | ||||||
Model for refer: ZP2-TB06EUGS-A5
ZP2-T
Vertical
H5
| Model | øA | øB | øC | D | E | Y | Adapter | |||||
|
① Vacuum inletdirection |
② Pad dia. |
③ Pad type |
④ Pad Material |
⑤ Vacuum inlet |
||||||||
| ZP2 | T | B02 | EU |
N S U F GN GS |
H5 | 2 | 2.6 | 1.2 | 9 | 5.5 | 0.5 | ZP2A-Z02P |
| B04 | 4 | 4.8 | 1.5 | |||||||||
| B06 | 6 | 6.7 | ||||||||||
| 08 | 8 | 9 | ||||||||||
| 15 | 15 | 15.7 | 2 | 10 | 6.5 | 1.5 | ||||||
Model for refer: ZP2-TB06EUGS-H5
Pad Material and Characteristics
⚪:Little or no influence △:Can be used depending on conditions X:Not suitable
|
Material
Characteristics
|
Symbol |
Durometer HS (±5°) |
Color of rubber |
Operating temperature range (°C) |
Oil resistance gasoline |
Oil resistance benzol |
Base resistance |
Acid resistance |
Weatherability |
Ozone resistance |
Abrasion resistance |
Waterproof |
Solvent resistance (Benzene, toluene) |
Application |
| NBR | N | 50 | Black | 0 ~ 120 | ⚪ | X | △ | △ | X | X | ⚪ | △ | X | Transfer of general work, Corrugated board, Veneer plate, Iron plate and others |
| Silicone rubber | S | 45 ~ 50 | White | -30 ~ 200 | X | X | △ | X | ⚪ | ⚪ | X | △ | X | Semiconductor, Removing from die-casting, Thin work, Food processor |
| Urethane rubber | U | 50 ~ 60 | Brown | 0 ~ 60 | ⚪ | X | X | X | △ | ⚪ | ⚪ | X | X | Corrugated board, Iron plate, Veneer plate |
| FKM | F | 60 | Black | 0 ~ 250 | ⚪ | ⚪ | X | ⚪ | ⚪ | ⚪ | △ | ⚪ | ⚪ | Chemical work |
| Conductive NBR | GN | 50 ~ 65 | 0 ~ 100 | △ | X | △ | X | △ | X | △ | △ | X | General work of semiconductor (Static electricity resistance) | |
| Conductive silicone rubbe | GS | 50 ~ 60 | -10 ~ 200 | X | X | △ | X | ⚪ | ⚪ | X | △ | X | Semiconductor (Static electricity) |
The above table covers only general characteristics of subject rubber materials. Blue symbol is customized models .
Application outline of pneumatic components (vacuum suction cup) in various industrial fields
I. Core strengths
II. Extraction of applications by industry
A. Medicine and medical industry
A.1：Core requirements: Clean and pollution-free (FDA/GMP compliant), gentle and non-damaging, and cross-contamination prevention
A.2 Key scenarios:
1. Pharmaceutical packaging: drug bottle / pharmaceutical plate / infusion bag pickup (food grade silicone suction cup, no particle shedding)
2. Medical device assembly: surgical instruments/medical catheters/pieces of prosthesis handling (adjustable negative pressure, deformation protection)
3. Biological laboratory: petri dish/centrifuge tube/reagent card transfer (chemical resistant, sterile compatible)
B. Electronics and semiconductor industry
B.1 Core requirements: anti-static (10⁶-10¹¹Ω), precision positioning (error ≤0.01mm), scratch resistance
B.2 Key scenarios:
1. Chip/Semiconductor: wafer handling, chip packaging (porous ceramic/anti-static silicone suction cup, uniform negative pressure to prevent rupture)
2. PCB/Components: Flexible PCB, micro components (0402 resistors) surface-mounted (thin silicone/gel/micro suction cups to prevent wrinkling/tearing)
3. Display: LCD/OLED panel, touch glass grab (high transparent material, no stains and scratches)
C. Automobile and auto parts industry
C.1 Core requirements: large suction (single suction disk ≥500N), multi-specification adaptation (metal/plastic/glass), non-slip
C.2 Key scenarios:
4. Body manufacturing: steel plate / door frame handling welding (large diameter rubber / multi-suction cup array, anti-slip texture)
5. Glass / Interior: Windscreen installation, leather seat surface transfer (temperature resistant silicone / sponge suction cups, deformation protection)
6. Parts: engine cylinder body / gearbox housing grab (vacuum + mechanical lock, anti-fall)
D. Food and packaging industry
D.1 Core requirements: Food grade material (FDA certified), easy to clean, crush resistant
D.2 Key scenarios:
1. Food handling: baked goods / fresh meat / fruit sorting (low suction sponge suction cup, odorless and easy to wash)
2. Packaging automation: packaging bag opening, sterile carton molding (static elimination/ multi-point suction, suitable for thin/hard packaging)
E. Logistics and warehousing industry
E.1 Core requirements: efficient adaptation (multiple specifications of goods), stable pressure, anti-fall
E.2 Key scenarios:
1. Carton handling: e-commerce carton sorting (adjustable suction array, vacuum pressure)
2. Plate/roll: Wood board/plastic film roll transfer (long strip/annular suction cup, uniform adsorption to prevent offset)
F. New energy and special industries
F.1 New energy (lithium battery/pv):
1. Lithium battery plate (anti-static porous suction cup, anti-dust), photovoltaic glass (large suction silicone suction cup, no scratch)
F.2 Printing and paper
1. Paper/printed matter capture (absorbent paper material, slight negative pressure to prevent tearing and ink contamination)
III. Summary of core adaptation logic
| Workpiece characteristics | Pipette adaptation programme | Corresponding industry scenarios |
| Thin / Fragile / Precision | Silicone/ceramic material, micro negative pressure, micro suction nozzle | Electronic semiconductors, pharmaceuticals |
| Heavy items / Large size | Rubber material, large diameter suction cup, multi-suction cup array | Automobiles, logistics panels |
| Health/Prevention of pollution | Food/medical grade silicone, easy to clean structure | Medicine, food |
| Soft / irregular surfaces | Sponge material, deformable suction cup | Car interiors, food |
| Antistatic requirements | Antistatic silicone, ion wind assisted | electronic semi-conductor |
