High Rigidity Ball Joint Vacuum Suction Cups ZP2
As a professional manufacturer, we are dedicated to providing you with high-quality, High Rigidity Ball Joint Vacuum Suction Cups ZP2. Our products feature exceptional stability, making them particularly well-suited for handling heavy workpieces and those with uneven surfaces. The unique ball-joint design automatically adapts to tilted surfaces, thereby significantly enhancing suction reliability. This product series is available in a wide range of sizes and materials—including NBR, silicone, PU, FKM, and EPR—and can be customized to meet your specific application requirements. Furthermore, an optional buffer design is available to provide comprehensive surface protection for fragile workpieces.
Click and Start the Selection
》Return to Product Information

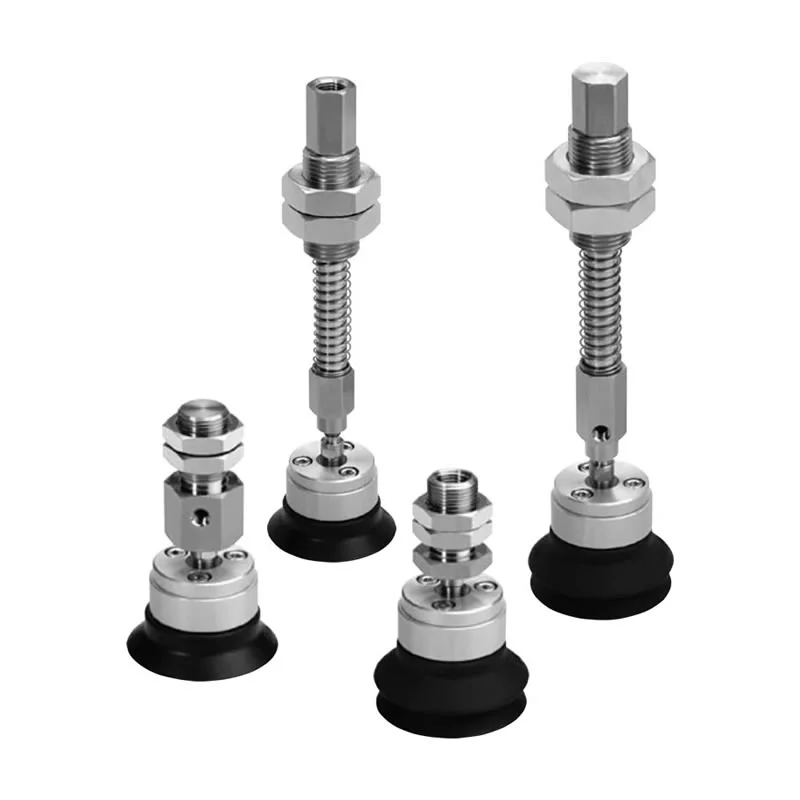

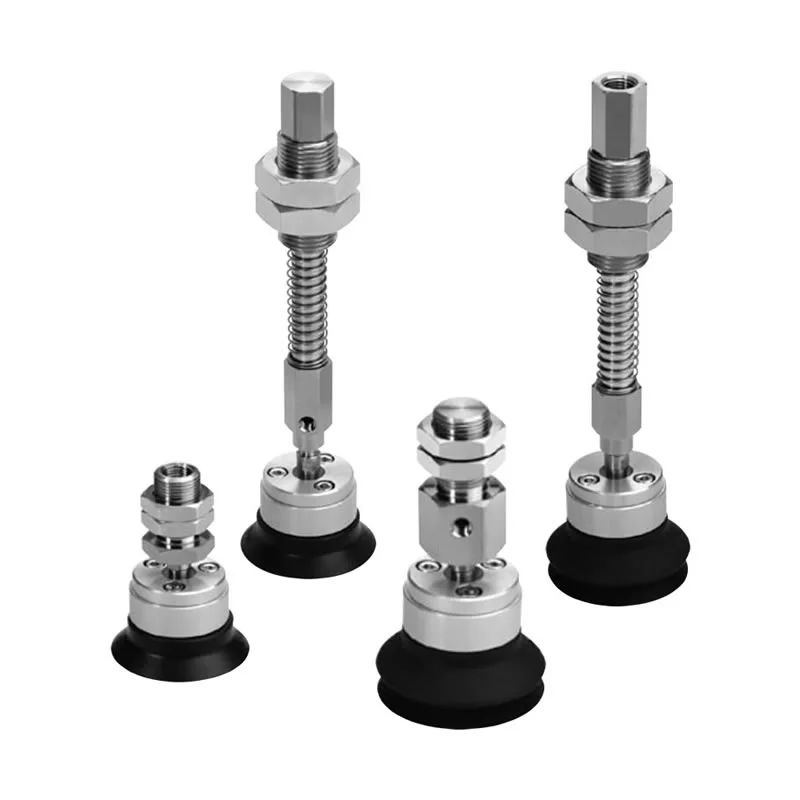

High Rigidity Ball Joint Vacuum Suction Cups ZP2
ZP2-TF Series Heavy-duty Ball Joint Type With Adapter Vacuum Pads
ZP2-TF Series Heavy-duty Ball Joint Type With Buffer Vacuum Pads
ZP2-XF Series Heavy-duty Ball Joint Type With Adapter Vacuum Pads
ZP2-XF Series Heavy-duty Ball Joint Type With Buffer Vacuum Pads
Description
How to Order
Specifications / Material
Applications
Resource
As a manufacturer of cost-effective, high-rigidity ZP2 ball-joint vacuum suction cups, Commaelec employs advanced vacuum sealing and pressure-holding technologies. The High Rigidity Ball Joint Vacuum Suction Cups ZP2 is a heavy-duty vacuum gripper designed for industrial automation handling applications. It is specifically engineered to grasp workpieces that are heavy, have uneven surfaces, or are positioned at an incline. By combining a high-rigidity structural framework with a ball-joint mechanism, this suction cup ensures powerful gripping force while automatically adjusting its angle to optimally conform to the workpiece surface, thereby enhancing both suction stability and operational safety.
Key Features
High-Rigidity Structure: The High Rigidity Ball Joint Vacuum Suction Cups ZP2 is ideal for heavy-duty workpiece handling and is highly resistant to deformation
Ball-Joint Swivel Design: Adapts to uneven or inclined surfaces.
Powerful Suction: Ensures stable and reliable handling operations.
Multiple Sizes and Materials: Accommodates diverse operating conditions.
Optional Cushioning Mechanism: Minimizes contact impact and protects the workpiece.
Advantages
High Rigidity & Heavy Duty
Reinforced structure designed for handling heavy workpieces without deformation
Maintains stable suction force during continuous industrial operation
Manufactured by Commaelec with strict quality control for long service life
Ball Joint / Swivel Design
Allows angular adjustment to fit uneven or inclined surfaces
Improves sealing performance and reduces air leakage
Enhances gripping stability in real production environments
Diverse Pad Types
Multiple pad structures available to match different workpiece conditions
Supports both smooth and slightly textured surfaces
Flexible selection based on application needs
Flat with Rib
The High Rigidity Ball Joint Vacuum Suction Cups ZP2 is suitable for flat and smooth surfaces, such as metal sheets and glass
Ribbed design improves sealing and prevents slipping
Provides consistent suction in high-speed automation
Bellows
Suitable for curved or uneven surfaces
Offers cushioning effect and height compensation
Reduces positioning errors during pick-and-place tasks
Wide Range of Materials
NBR: Cost-effective and wear-resistant for general use
Silicone: Suitable for high-temperature environments
PU: High durability for frequent operations
FKM: Excellent chemical resistance
Custom materials (e.g., anti-static) available from Commaelec
Large Diameters
The High Rigidity Ball Joint Vacuum Suction Cups ZP2 is available in a wide range of diameters—from φ40 to φ125—to accommodate diverse load requirements
Larger diameters provide stronger gripping force for heavy parts
Easy selection based on weight and surface condition
Flexible Mounting
Supports internal and external thread connections
Compatible with adapters and buffer brackets
Vertical or lateral vacuum inlet options for different layouts
Buffering Options
Optional cushioning structure reduces impact during contact
Protects fragile surfaces like glass or coated materials
Improves handling safety and product quality
Applications
Automated production lines and robotic arms
Metal sheets, glass panels, and large components handling
Lithium battery and electronics industries (stainless steel options available)
Any scenario requiring stable gripping of heavy or uneven workpieces

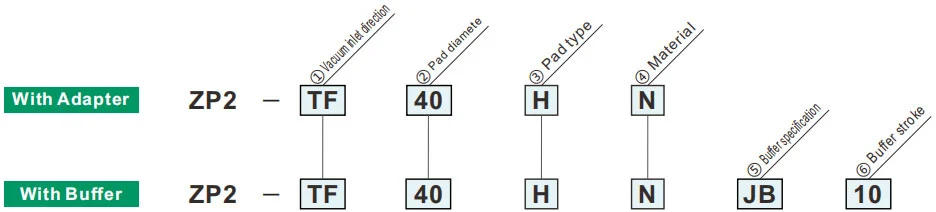

How to Order
| ①Vacuum inlet direction | |
| TF | Vertical |
| XF | Lateral |
| ②Pad diameter | |
| 40 | ø40 |
| 50 | ø50 |
| 63 | ø63 |
| 80 | ø80 |
| 100 | ø100 |
| 125 | ø125 |
| ④Material | |
| N | NBR |
| S | Silicone rubber |
| U | Urethane rubber |
| F | FKM |
Green symbol is customized models
| ⑥Buffer stroke | Pad diameter | ||||||
| 40 | 50 | 63 | 80 | 100 | 125 | ||
| 10 | 10mm | ● | ● | ||||
| 25 | 25mm | ● | ● | ||||
| 30 | 30mm | ● | ● | ||||
| 50 | 50mm | ● | ● | ||||
| 75 | 75mm | ● | ● | ||||
| 100 | 100mm | — | ● | ||||
| ③Pad type | |
| H | Flat with rib |
| HB | Bellows type |
| ⑤ Buffer specification | |
| JB | Rotating(Brass, With Bushing) |
| JF | Rotating(Steel, With Bushing) |
Spring reactive force
| Connection thread | Tightening torque ±5%[N·m] | Buffer stroke(mm) | Spring reactive force[N] | ||
| Brass, With Bushing(JB) | Steel, With Bushing(JF) | At 0 stroke | At full stroke | ||
| M18x1.5 | 30 | 50 | 10 | 5 | 6.5 |
| 25 | 6.9 | 11.8 | |||
| 30 | 5 | 8.5 | |||
| 50,75 | 6.9 | 11.8 | |||
| M22x1.5 | 45 | 75 | 10 | 10 | 11.5 |
| 25 | 15 | ||||
| 30 | 13.5 | ||||
| 50,75,100 | 15 | ||||
Pad Material and Characteristics
⚪:Little or no influence △:Can be used depending on conditions X:Not suitable
|
Material
Characteristics
|
Symbol |
Durometer HS (±5°) |
Color of rubber |
Operating temperature range (°C) |
Oil resistance gasoline |
Oil resistance benzol |
Base resistance |
Acid resistance |
Weatherability |
Ozone resistance |
Abrasion resistance |
Waterproof |
Solvent resistance (Benzene, toluene) |
Application |
| NBR | N | 50 | Black | 0 ~ 120 | ⚪ | X | △ | △ | X | X | ⚪ | △ | X | Transfer of general work, Corrugated board, Veneer plate, Iron plate and others |
| Silicone rubber | S | 45 ~ 50 | White | -30 ~ 200 | X | X | △ | X | ⚪ | ⚪ | X | △ | X | Semiconductor, Removing from die-casting, Thin work, Food processor |
| Urethane rubber | U | 50 ~ 60 | Brown | 0 ~ 60 | ⚪ | X | X | X | △ | ⚪ | ⚪ | X | X | Corrugated board, Iron plate, Veneer plate |
| FKM | F | 60 | Black | 0 ~ 250 | ⚪ | ⚪ | X | ⚪ | ⚪ | ⚪ | △ | ⚪ | ⚪ | Chemical work |
| Conductive NBR | GN | 50 ~ 65 | 0 ~ 100 | △ | X | △ | X | △ | X | △ | △ | X | General work of semiconductor (Static electricity resistance) | |
| Conductive silicone rubbe | GS | 50 ~ 60 | -10 ~ 200 | X | X | △ | X | ⚪ | ⚪ | X | △ | X | Semiconductor (Static electricity) |
The above table covers only general characteristics of subject rubber materials. Blue symbol is customized models .
Application outline of pneumatic components (vacuum suction cup) in various industrial fields
I. Core strengths
II. Extraction of applications by industry
A. Medicine and medical industry
A.1：Core requirements: Clean and pollution-free (FDA/GMP compliant), gentle and non-damaging, and cross-contamination prevention
A.2 Key scenarios:
1. Pharmaceutical packaging: drug bottle / pharmaceutical plate / infusion bag pickup (food grade silicone suction cup, no particle shedding)
2. Medical device assembly: surgical instruments/medical catheters/pieces of prosthesis handling (adjustable negative pressure, deformation protection)
3. Biological laboratory: petri dish/centrifuge tube/reagent card transfer (chemical resistant, sterile compatible)
B. Electronics and semiconductor industry
B.1 Core requirements: anti-static (10⁶-10¹¹Ω), precision positioning (error ≤0.01mm), scratch resistance
B.2 Key scenarios:
1. Chip/Semiconductor: wafer handling, chip packaging (porous ceramic/anti-static silicone suction cup, uniform negative pressure to prevent rupture)
2. PCB/Components: Flexible PCB, micro components (0402 resistors) surface-mounted (thin silicone/gel/micro suction cups to prevent wrinkling/tearing)
3. Display: LCD/OLED panel, touch glass grab (high transparent material, no stains and scratches)
C. Automobile and auto parts industry
C.1 Core requirements: large suction (single suction disk ≥500N), multi-specification adaptation (metal/plastic/glass), non-slip
C.2 Key scenarios:
4. Body manufacturing: steel plate / door frame handling welding (large diameter rubber / multi-suction cup array, anti-slip texture)
5. Glass / Interior: Windscreen installation, leather seat surface transfer (temperature resistant silicone / sponge suction cups, deformation protection)
6. Parts: engine cylinder body / gearbox housing grab (vacuum + mechanical lock, anti-fall)
D. Food and packaging industry
D.1 Core requirements: Food grade material (FDA certified), easy to clean, crush resistant
D.2 Key scenarios:
1. Food handling: baked goods / fresh meat / fruit sorting (low suction sponge suction cup, odorless and easy to wash)
2. Packaging automation: packaging bag opening, sterile carton molding (static elimination/ multi-point suction, suitable for thin/hard packaging)
E. Logistics and warehousing industry
E.1 Core requirements: efficient adaptation (multiple specifications of goods), stable pressure, anti-fall
E.2 Key scenarios:
1. Carton handling: e-commerce carton sorting (adjustable suction array, vacuum pressure)
2. Plate/roll: Wood board/plastic film roll transfer (long strip/annular suction cup, uniform adsorption to prevent offset)
F. New energy and special industries
F.1 New energy (lithium battery/pv):
1. Lithium battery plate (anti-static porous suction cup, anti-dust), photovoltaic glass (large suction silicone suction cup, no scratch)
F.2 Printing and paper
1. Paper/printed matter capture (absorbent paper material, slight negative pressure to prevent tearing and ink contamination)
III. Summary of core adaptation logic
| Workpiece characteristics | Pipette adaptation programme | Corresponding industry scenarios |
| Thin / Fragile / Precision | Silicone/ceramic material, micro negative pressure, micro suction nozzle | Electronic semiconductors, pharmaceuticals |
| Heavy items / Large size | Rubber material, large diameter suction cup, multi-suction cup array | Automobiles, logistics panels |
| Health/Prevention of pollution | Food/medical grade silicone, easy to clean structure | Medicine, food |
| Soft / irregular surfaces | Sponge material, deformable suction cup | Car interiors, food |
| Antistatic requirements | Antistatic silicone, ion wind assisted | electronic semi-conductor |
