Cube Vacuum Suction Cups ZP2
ZP2 Series Cube Vacuum Pad Unit
ZP2-T Series With Adapter Cube Vacuum Pad
Description
How to Order
Specifications / Material
Applications
Resource

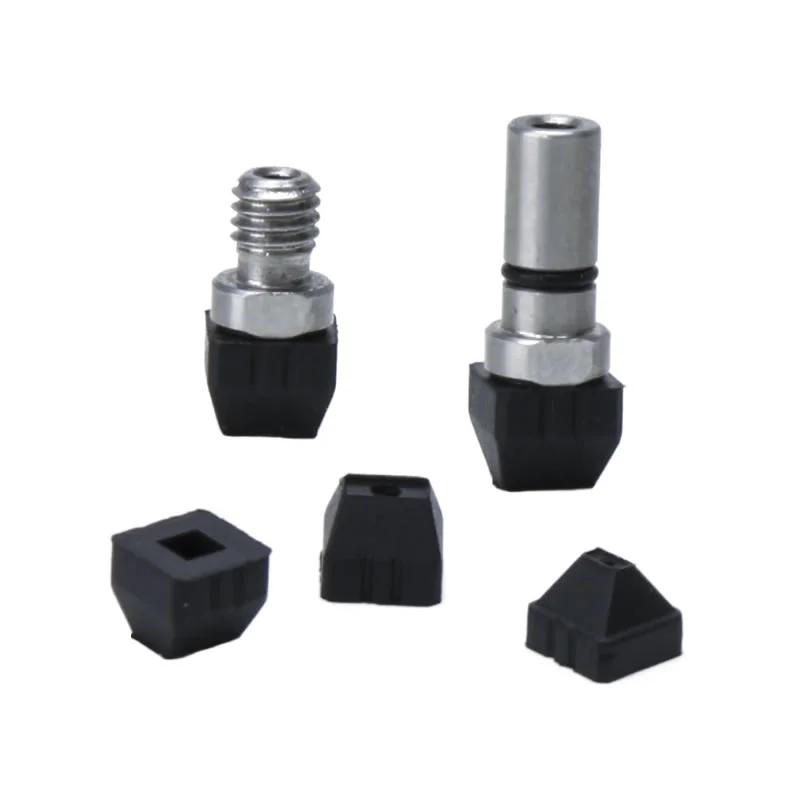

The Cube Vacuum Suction Cups ZP2 are ultra-compact square-shaped vacuum cups engineered for micro and square/rectangular workpieces. Featuring ultra-compact dimensions and precision gripping, they are ideal for handling delicate components in precision automated production lines. As the core component for microelectronics and precision hardware, these cups are extremely lightweight, effectively reducing the load on robotic end-effectors. They are particularly suited for high-speed, high-frequency handling of small workpieces.
Typical application scenarios:
1.Electronic manufacturing, including chip assembly, micro-resistors/condensers, and PCB micro-soldered components handling.
2.Precision hardware: automated loading and handling of ultra-compact components including micro screws, square metal spring plates, and miniature bearings.
3.Optical Devices: Dust-free Grabbing and Positioning of Micro Lenses and Square Optical Glass Slips, Silicone Material Can Avoid Leaving Imprints.
Key Aspects of Cube Vacuum Suction Cups ZP2
Pad Varieties
Flat type: Ideal for smooth, rigid surfaces with stable suction
Flat with ribs: Provides extra sealing on slightly textured surfaces
Bellows type: Adapts to uneven surfaces and reduces impact during contact
Multiple pad types allow flexible selection for different industrial automation needs
Materials
NBR: Cost-effective, wear-resistant for general handling
Silicone: High-temperature resistant and gentle on delicate surfaces
Polyurethane (PU): Durable for high-cycle operations
FKM / EPR: Chemical-resistant for specialized environments
Custom material options available from Commaelec to match specific workpiece requirements
FAQ
What is the difference between ZP and ZP2?
ZP series: Standard suction cups for general applications with simpler structure
ZP2 series: High-rigidity, ball-joint design allows better adaptability to uneven or inclined surfaces
ZP2 provides stronger stability, heavier load handling, and more material options compared to ZP
What are the common types of ZP2 pads?
Flat type, Flat with ribs, and Bellows type
Each type is optimized for surface condition, workpiece size, and handling requirements
Commaelec provides multiple sizes and configurations to ensure precise application
Do ZP2 cups come with adapters?
Yes, Cube Vacuum Suction Cups ZP2 can be used with adapters or buffer brackets
Supports both vertical and lateral vacuum inlet connections
Facilitates flexible integration into automated systems and robotic arms

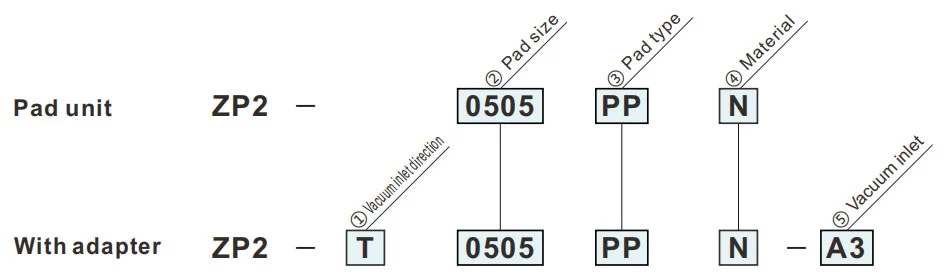

How to Order

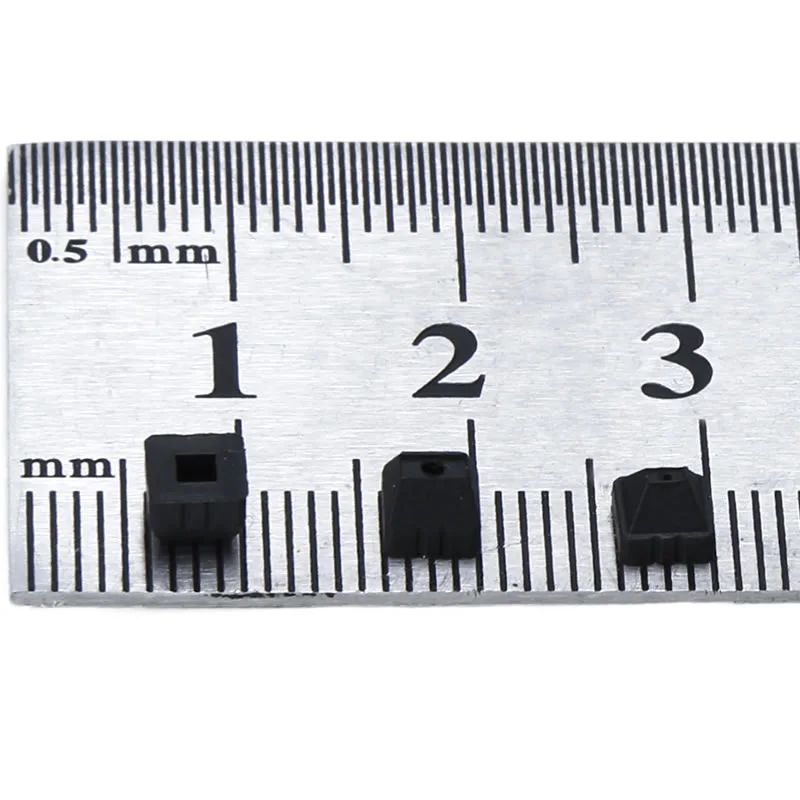

- Super-small suction pads shaped square.
- 5 types of 0.5 x 0.5 to 2 x 2.8
- For small workpieces such as semiconductor chips.
| ①Vacuum inlet direction | |
| T | Vertical |
| ②Pad size | |
| 0505 | 0.5 x 0.5mm |
| 0513 | 0.5 x 1.3mm |
| 0816 | 0.8 x 1.6mm |
| 1328 | 1.3 x 2.8mm |
| 2028 | 2.0 x 2.8mm |
| ④Material | |
| N | NBR |
| S | Silicone rubber |
| U | Urethane rubber |
| F | FKM |
| GN | Conductive NBR |
| GS | Conductive silicone rubber |
Green symbol is customized models.
| ⑤Vacuum inlet | |
| 03 | ø3straight |
| A3 | M3x0.5(Male) |
| ③Pad type | |
| PP | Cube type |
Dimensions(mm)
Green symbol is customized models.
PP
Cube type

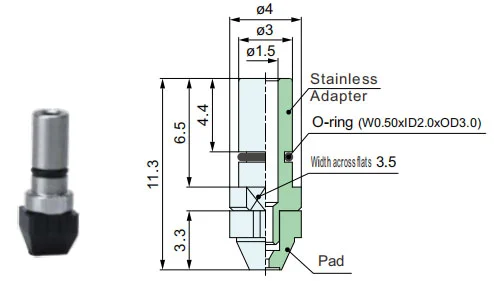

Adapter Mounting Dimensions
| Model | A | B | C | D | øE | |||
|
② Pad Size |
③ Pad type |
④ Pad Material |
||||||
| ZP2 | 0505 | PP |
N S U F GN GS |
0.5 | 0.75 | 0.5 | 0.75 | 0.4 |
| 0513 | 0.5 | 0.7 | 1.3 | 1.5 | ||||
| 0816 | 0.8 | 1 | 1.6 | 1.8 | ||||
| 1328 | 1.3 | 1.5 | 2.8 | 3 | 1 | |||
| 2028 | 2 | 2.2 | ||||||
Model for refer: ZP2-0505PPN
ZP2-T
Vertical
03
| Model | Adapter | |||||
|
① Vacuum inlet direction |
② Pad Size |
③ Pad type |
④ Pad Material |
⑤ Vacuum inlet |
||
| ZP2 | T |
0505 0513 0816 1328 2028 |
PP |
N S U F GN GS |
03 | PPH-001 |
ZP2-T
Vertical
A3
| Model | Adapter | |||||
|
① Vacuum inlet direction |
② Pad Size |
③ Pad type |
④ Pad Material |
⑤ Vacuum inlet |
||
| ZP2 | T |
0505 0513 0816 1328 2028 |
PP |
N S U F GN GS |
A3 | PPH-002 |
Pad Material and Characteristics
⚪:Little or no influence △:Can be used depending on conditions X:Not suitable
|
Material
Characteristics
|
Symbol |
Durometer HS (±5°) |
Color of rubber |
Operating temperature range (°C) |
Oil resistance gasoline |
Oil resistance benzol |
Base resistance |
Acid resistance |
Weatherability |
Ozone resistance |
Abrasion resistance |
Waterproof |
Solvent resistance (Benzene, toluene) |
Application |
| NBR | N | 50 | Black | 0 ~ 120 | ⚪ | X | △ | △ | X | X | ⚪ | △ | X | Transfer of general work, Corrugated board, Veneer plate, Iron plate and others |
| Silicone rubber | S | 45 ~ 50 | White | -30 ~ 200 | X | X | △ | X | ⚪ | ⚪ | X | △ | X | Semiconductor, Removing from die-casting, Thin work, Food processor |
| Urethane rubber | U | 50 ~ 60 | Brown | 0 ~ 60 | ⚪ | X | X | X | △ | ⚪ | ⚪ | X | X | Corrugated board, Iron plate, Veneer plate |
| FKM | F | 60 | Black | 0 ~ 250 | ⚪ | ⚪ | X | ⚪ | ⚪ | ⚪ | △ | ⚪ | ⚪ | Chemical work |
| Conductive NBR | GN | 50 ~ 65 | 0 ~ 100 | △ | X | △ | X | △ | X | △ | △ | X | General work of semiconductor (Static electricity resistance) | |
| Conductive silicone rubbe | GS | 50 ~ 60 | -10 ~ 200 | X | X | △ | X | ⚪ | ⚪ | X | △ | X | Semiconductor (Static electricity) |
The above table covers only general characteristics of subject rubber materials. Blue symbol is customized models .
Application outline of pneumatic components (vacuum suction cup) in various industrial fields
I. Core strengths
II. Extraction of applications by industry
A. Medicine and medical industry
A.1：Core requirements: Clean and pollution-free (FDA/GMP compliant), gentle and non-damaging, and cross-contamination prevention
A.2 Key scenarios:
1. Pharmaceutical packaging: drug bottle / pharmaceutical plate / infusion bag pickup (food grade silicone suction cup, no particle shedding)
2. Medical device assembly: surgical instruments/medical catheters/pieces of prosthesis handling (adjustable negative pressure, deformation protection)
3. Biological laboratory: petri dish/centrifuge tube/reagent card transfer (chemical resistant, sterile compatible)
B. Electronics and semiconductor industry
B.1 Core requirements: anti-static (10⁶-10¹¹Ω), precision positioning (error ≤0.01mm), scratch resistance
B.2 Key scenarios:
1. Chip/Semiconductor: wafer handling, chip packaging (porous ceramic/anti-static silicone suction cup, uniform negative pressure to prevent rupture)
2. PCB/Components: Flexible PCB, micro components (0402 resistors) surface-mounted (thin silicone/gel/micro suction cups to prevent wrinkling/tearing)
3. Display: LCD/OLED panel, touch glass grab (high transparent material, no stains and scratches)
C. Automobile and auto parts industry
C.1 Core requirements: large suction (single suction disk ≥500N), multi-specification adaptation (metal/plastic/glass), non-slip
C.2 Key scenarios:
4. Body manufacturing: steel plate / door frame handling welding (large diameter rubber / multi-suction cup array, anti-slip texture)
5. Glass / Interior: Windscreen installation, leather seat surface transfer (temperature resistant silicone / sponge suction cups, deformation protection)
6. Parts: engine cylinder body / gearbox housing grab (vacuum + mechanical lock, anti-fall)
D. Food and packaging industry
D.1 Core requirements: Food grade material (FDA certified), easy to clean, crush resistant
D.2 Key scenarios:
1. Food handling: baked goods / fresh meat / fruit sorting (low suction sponge suction cup, odorless and easy to wash)
2. Packaging automation: packaging bag opening, sterile carton molding (static elimination/ multi-point suction, suitable for thin/hard packaging)
E. Logistics and warehousing industry
E.1 Core requirements: efficient adaptation (multiple specifications of goods), stable pressure, anti-fall
E.2 Key scenarios:
1. Carton handling: e-commerce carton sorting (adjustable suction array, vacuum pressure)
2. Plate/roll: Wood board/plastic film roll transfer (long strip/annular suction cup, uniform adsorption to prevent offset)
F. New energy and special industries
F.1 New energy (lithium battery/pv):
1. Lithium battery plate (anti-static porous suction cup, anti-dust), photovoltaic glass (large suction silicone suction cup, no scratch)
F.2 Printing and paper
1. Paper/printed matter capture (absorbent paper material, slight negative pressure to prevent tearing and ink contamination)
III. Summary of core adaptation logic
| Workpiece characteristics | Pipette adaptation programme | Corresponding industry scenarios |
| Thin / Fragile / Precision | Silicone/ceramic material, micro negative pressure, micro suction nozzle | Electronic semiconductors, pharmaceuticals |
| Heavy items / Large size | Rubber material, large diameter suction cup, multi-suction cup array | Automobiles, logistics panels |
| Health/Prevention of pollution | Food/medical grade silicone, easy to clean structure | Medicine, food |
| Soft / irregular surfaces | Sponge material, deformable suction cup | Car interiors, food |
| Antistatic requirements | Antistatic silicone, ion wind assisted | electronic semi-conductor |
Installation Manual
PDF Download
Warning +Caution （Read Before Use）
PDF Download
