Vacuum suction is a core solution for "flexible grasping" in industrial automation with four core advantages: non-damaging grasping, adaptability to multi-material/irregular workpieces, clean and environmental protection, and flexible operation. It can be adapted to different industry characteristics of workpieces (thin/thick, precision/coarse, sanitary/standard).

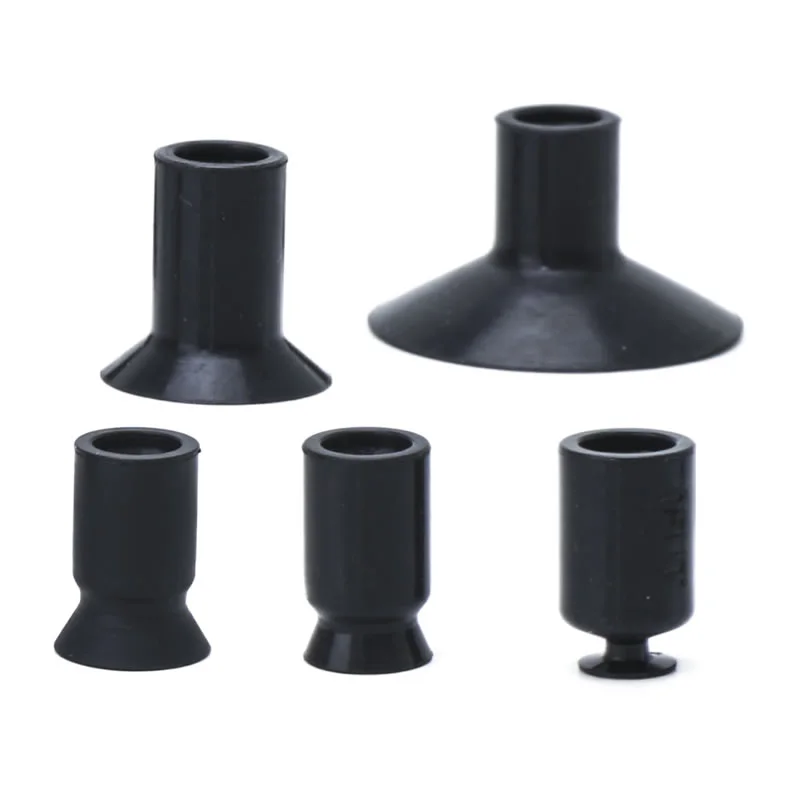

Compact Vacuum Suction Cups ZP2
As a professional China manufacturer, our factory offers Customized Compact Vacuum Suction Cups ZP2 (ø6-8) with rib reinforcement for high load-bearing and deformation resistance. We also provide the ZP2 thin UT series (ø5-20) with a slim skirt for wrinkle-free handling of fragile materials. We stock anti-static and stainless steel options for electronics and lithium battery lines.
Click and Start the Selection
》Return to Product Information
Compact Vacuum Suction Cups ZP2
ZP2 Series Compact Vacuum Pad Unit

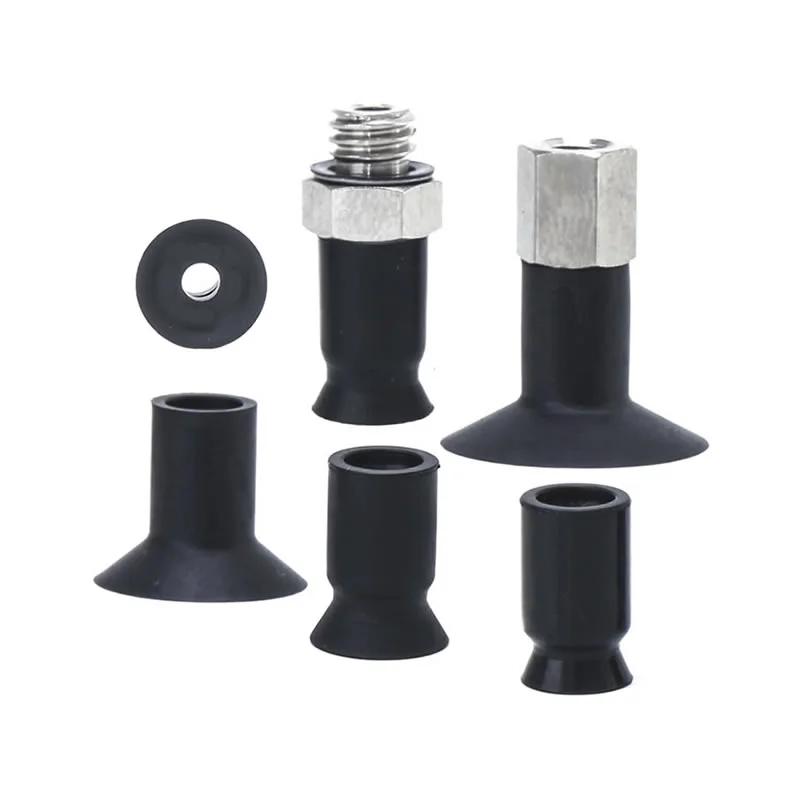

ZP2-T Series With Adapter Compact Vacuum Pad
Description
How to Order
Specifications / Material
Applications
Resource
As a leading Chinese manufacturer, our factory offers customized Compact Vacuum Suction Cups ZP2 solutions specifically designed for precision industries, featuring the following core advantages:
High Performance, Low Cost: Leveraging a mature domestic supply chain, we effectively control costs while ensuring exceptional suction performance, thereby reducing procurement expenses for our clients.
ZP2 Series High-Load Design: Our Compact Vacuum Suction Cups ZP2 (ø6–8) feature a unique rib-reinforced structure. Even at extremely small dimensions, they deliver exceptional resistance to deformation and load stability, making them the preferred choice for handling thin metal sheets and precision plastic components.
ZP2 Thin-Profile UT Series:Designed specifically for flexible workpieces (ø5–20), this series features an ultra-thin skirt structure. This low-profile design effectively prevents fragile materials—such as thin films and vinyl sheets—from wrinkling or deforming during the suction process.
Stable Supply: Supported by mature manufacturing processes, we utilize high-quality materials (such as silicone) in conjunction with advanced vacuum retention technology to ensure safe and stable gripping operations; furthermore, our substantial inventory allows for rapid delivery to meet customer demands.
FAQ
What are the different types of ZP2 pads?
Compact Vacuum Suction Cups ZP2 offer several pad structures to match real working conditions:
Flat type: for smooth, rigid surfaces with stable sealing
Flat with ribs: improves vacuum sealing on slightly rough surfaces
Bellows type: compensates height differences and provides cushioning
Commaelec provides multiple configurations to ensure better fit and performance in automation systems.
What size ranges are available?
Standard sizes include: φ40, φ50, φ63, φ80, φ100, φ125
Smaller diameters: suitable for precision or lightweight parts
Larger diameters: stronger suction for heavy or large workpieces
Commaelec factory maintains stable stock and supports customized sizes for project-based needs.
How do ZP2 cups compare to ZP3 or ZP?
ZP2 series: balanced design with higher rigidity and ball joint adaptability, suitable for general to heavy-duty use
ZP3 series: typically optimized for lighter, faster handling and more compact setups
ZP series (standard): basic applications with simpler structure
Compared to others, Compact Vacuum Suction Cups ZP2 provide better stability on uneven surfaces while maintaining flexibility in installation and material selection.
Are they suitable for delicate parts?
Yes, with the right configuration:
Use soft materials like silicone for gentle contact
Choose bellows or cushioned types to reduce impact force
Optional buffering mounts help protect fragile surfaces such as glass or coated parts
How to Order
- 8 types of ø6 to ø20 are added.
- C: For workpieces which are easily deformed. Workpieces can be removed easily thanks to the ribs.
- UT: For adsorption of soft work pieces such as thin sheets or vinyl. Wrinkling or deformation during adsorption is reduced.
- Applicable for the ZP series adapter.
|
③ Pad type
② Pad diameter(mm)
|
05 | 06 | B06 | 07 | B08 | 11 | 14 | 18 | 20 | |
| ø5 | ø6 | ø6 | ø7 | ø8 | ø11 | ø14 | ø18 | ø20 | ||
| C | Flat Type with Ribs | — | — | ● | ● | ● | — | — | — | — |
| UT | Thin Flat Type | ● | ● | — | — | — | ● | ● | ● | ● |
| ④Material | |
| N | NBR |
| S | Silicone rubber |
| U | Urethane rubber |
| F | FKM |
| GN | Conductive NBR |
| GS | Conductive silicone rubber |
Green symbol is customized models.
| Adapter Mounting Dimensions | |
| If an adapter will be made by the customer, design the adapter with the dimensions shown right. |
|
Dimensions(mm)
Green symbol is customized models.
HT
Thin Flat With Rib Type
| Model | øA | øB | |||
|
② Pad dia. |
③ Pad type |
④ Pad Material |
|||
| ZP2 | B06 | C | N | 6 | 7 |
| S | |||||
| 07 | U | 7 | 8 | ||
| F | |||||
| B08 | GN | 8 | 9 | ||
| GS | |||||
Model for refer: ZP2-B06CGN
HT
Thin Flat With Rib Type
| Model | øA | øB | øC | Y | |||
|
② Pad dia. |
③ Pad type |
④ Pad Material |
|||||
| ZP2 | 05 | UT | N | 5 | — | 1.2 | 0.3 |
| 06 | S | 6 | 0.8 | ||||
| 11 | U | 11.5 | 12.5 | 2.5 | 1.2 | ||
| 14 | F | 14.5 | 15.5 | 1.5 | |||
| 18 | GN | 18 | 19 | ||||
| 20 | GS | 20 | 21 | 1.8 | |||
Model for refer: ZP2-05UTN
Specifications
| Lock ring/ Pad type | Pad diameter/dimensions | Application | ||||||||||||||||
| 2×4 | 3.5×7 | 4×10 | ø2 | ø4 | ø6 | ø8 | ø10 | ø13 | ø16 | ø20 | ø25 | ø32 | ø40 | ø50 | ||||
| Without Lock Ring |
Flat Type (U) |
|
— | — | — | ● | ● | ● | ● | — | — | — | — | — | — | — | — | For workpieces with flat and undeformed surfaces |
|
Oval Type (U) |
|
● | ● | ● | — | — | — | — | — | — | — | — | — | — | — | — | For work pieces with limitations on the adsorptionsurface | |
|
Thin Flat Type (UT) |
|
— | — | — | — | — | — | — | ● | ● | ● | — | — | — | — | — | For soft workpieces such as thin sheets or vinyl. Wrinkling or deformation during adsorption can be reduced. | |
|
Thin Flat Type with Ribs (CT) |
|
— | — | — | — | — | — | — | ● | ● | ● | — | — | — | — | — | For soft workpieces such as thin sheets or vinyl. Workpieces can be removed easily thanks to the ribs | |
|
Bellows Type (B) |
|
— | — | — | — | — | ● | ● | — | — | — | — | — | — | — | — | For use where there is no space for a buffer or for workpieces with inclined surfaces | |
| With Lock Ring |
Flat Type (U) |
|
— | — | — | — | — | — | — | ● | ● | ● | ● | ● | ● | ● | ● | For workpieces with flat and undeformed surfaces |
|
Flat Type with Ribs (C) |
|
— | — | — | — | — | — | — | ● | ● | ● | ● | ● | ● | ● | ● | For workpieces which are easily deformed. Workpieces can be removed easily thanks to the ribs | |
|
Bellows Type (B) |
|
— | — | — | — | — | — | — | ● | ● | ● | ● | ● | ● | ● | ● | For use where there is no space for a buffer or for workpieces with inclined surfaces | |
|
Deep Type (D) |
|
— | — | — | — | — | — | — | ● | — | ● | — | ● | — | ● | — | For workpieces with curved surfaces or for spherical workpieces | |
Pad Material and Characteristics
⚪:Little or no influence △:Can be used depending on conditions X:Not suitable
|
Material
Characteristics
|
Symbol |
Durometer HS (±5°) |
Color of rubber |
Operating temperature range (°C) |
Oil resistance gasoline |
Oil resistance benzol |
Base resistance |
Acid resistance |
Weatherability |
Ozone resistance |
Abrasion resistance |
Waterproof |
Solvent resistance (Benzene, toluene) |
Application |
| NBR | N | 50 | Black | 0 ~ 120 | ⚪ | X | △ | △ | X | X | ⚪ | △ | X | Transfer of general work, Corrugated board, Veneer plate, Iron plate and others |
| Silicone rubber | S | 45 ~ 50 | White | -30 ~ 200 | X | X | △ | X | ⚪ | ⚪ | X | △ | X | Semiconductor, Removing from die-casting, Thin work, Food processor |
| Urethane rubber | U | 50 ~ 60 | Brown | 0 ~ 60 | ⚪ | X | X | X | △ | ⚪ | ⚪ | X | X | Corrugated board, Iron plate, Veneer plate |
| FKM | F | 60 | Black | 0 ~ 250 | ⚪ | ⚪ | X | ⚪ | ⚪ | ⚪ | △ | ⚪ | ⚪ | Chemical work |
| Conductive NBR | GN | 50 ~ 65 | 0 ~ 100 | △ | X | △ | X | △ | X | △ | △ | X | General work of semiconductor (Static electricity resistance) | |
| Conductive silicone rubbe | GS | 50 ~ 60 | -10 ~ 200 | X | X | △ | X | ⚪ | ⚪ | X | △ | X | Semiconductor (Static electricity) |
The above table covers only general characteristics of subject rubber materials. Blue symbol is customized models .
Application outline of pneumatic components (vacuum suction cup) in various industrial fields
I. Core strengths
II. Extraction of applications by industry
A. Medicine and medical industry
A.1：Core requirements: Clean and pollution-free (FDA/GMP compliant), gentle and non-damaging, and cross-contamination prevention
A.2 Key scenarios:
1. Pharmaceutical packaging: drug bottle / pharmaceutical plate / infusion bag pickup (food grade silicone suction cup, no particle shedding)
2. Medical device assembly: surgical instruments/medical catheters/pieces of prosthesis handling (adjustable negative pressure, deformation protection)
3. Biological laboratory: petri dish/centrifuge tube/reagent card transfer (chemical resistant, sterile compatible)
B. Electronics and semiconductor industry
B.1 Core requirements: anti-static (10⁶-10¹¹Ω), precision positioning (error ≤0.01mm), scratch resistance
B.2 Key scenarios:
1. Chip/Semiconductor: wafer handling, chip packaging (porous ceramic/anti-static silicone suction cup, uniform negative pressure to prevent rupture)
2. PCB/Components: Flexible PCB, micro components (0402 resistors) surface-mounted (thin silicone/gel/micro suction cups to prevent wrinkling/tearing)
3. Display: LCD/OLED panel, touch glass grab (high transparent material, no stains and scratches)
C. Automobile and auto parts industry
C.1 Core requirements: large suction (single suction disk ≥500N), multi-specification adaptation (metal/plastic/glass), non-slip
C.2 Key scenarios:
4. Body manufacturing: steel plate / door frame handling welding (large diameter rubber / multi-suction cup array, anti-slip texture)
5. Glass / Interior: Windscreen installation, leather seat surface transfer (temperature resistant silicone / sponge suction cups, deformation protection)
6. Parts: engine cylinder body / gearbox housing grab (vacuum + mechanical lock, anti-fall)
D. Food and packaging industry
D.1 Core requirements: Food grade material (FDA certified), easy to clean, crush resistant
D.2 Key scenarios:
1. Food handling: baked goods / fresh meat / fruit sorting (low suction sponge suction cup, odorless and easy to wash)
2. Packaging automation: packaging bag opening, sterile carton molding (static elimination/ multi-point suction, suitable for thin/hard packaging)
E. Logistics and warehousing industry
E.1 Core requirements: efficient adaptation (multiple specifications of goods), stable pressure, anti-fall
E.2 Key scenarios:
1. Carton handling: e-commerce carton sorting (adjustable suction array, vacuum pressure)
2. Plate/roll: Wood board/plastic film roll transfer (long strip/annular suction cup, uniform adsorption to prevent offset)
F. New energy and special industries
F.1 New energy (lithium battery/pv):
1. Lithium battery plate (anti-static porous suction cup, anti-dust), photovoltaic glass (large suction silicone suction cup, no scratch)
F.2 Printing and paper
1. Paper/printed matter capture (absorbent paper material, slight negative pressure to prevent tearing and ink contamination)
III. Summary of core adaptation logic
| Workpiece characteristics | Pipette adaptation programme | Corresponding industry scenarios |
| Thin / Fragile / Precision | Silicone/ceramic material, micro negative pressure, micro suction nozzle | Electronic semiconductors, pharmaceuticals |
| Heavy items / Large size | Rubber material, large diameter suction cup, multi-suction cup array | Automobiles, logistics panels |
| Health/Prevention of pollution | Food/medical grade silicone, easy to clean structure | Medicine, food |
| Soft / irregular surfaces | Sponge material, deformable suction cup | Car interiors, food |
| Antistatic requirements | Antistatic silicone, ion wind assisted | electronic semi-conductor |
Installation Manual
PDF Download
Warning +Caution （Read Before Use）
PDF Download
