Vacuum suction is a core solution for "flexible grasping" in industrial automation with four core advantages: non-damaging grasping, adaptability to multi-material/irregular workpieces, clean and environmental protection, and flexible operation. It can be adapted to different industry characteristics of workpieces (thin/thick, precision/coarse, sanitary/standard).
Oval Vacuum Suction Cups ZP2
As a leading China manufacturer, our factory offers Customized Oval Vacuum Suction Cups ZP2 for slender workpieces in confined spaces. Available in 12 specifications (e.g., 3.5×7 to 8×30mm), this supplier-direct solution ensures uniform pressure and grip stability. With optional 6-50mm buffers and anti-static materials, it's ideal for PCB, battery, and high-speed packaging lines.
Click and Start the Selection
》Return to Product Information

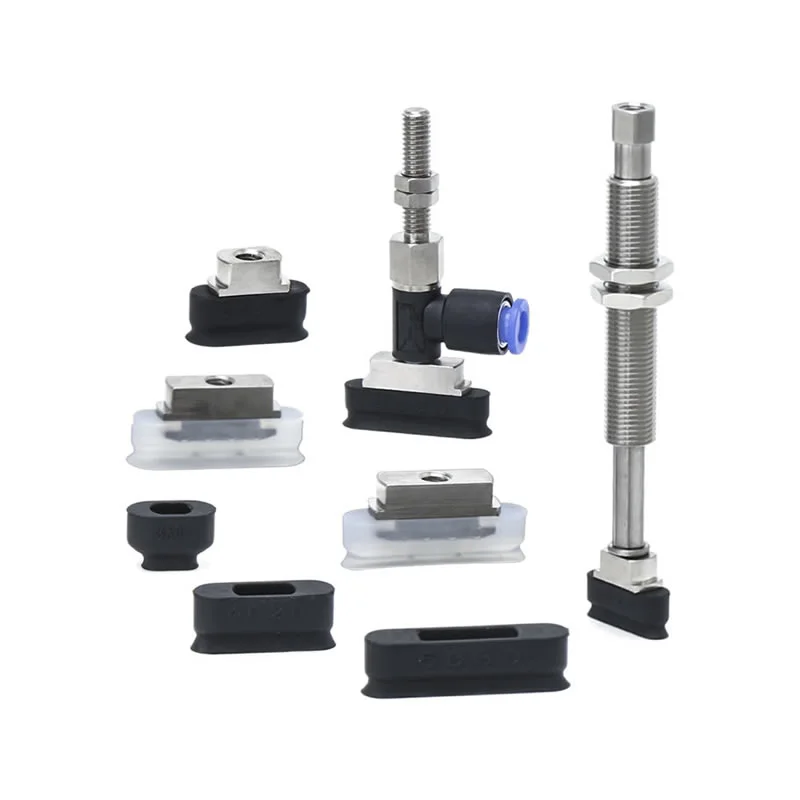

Oval Vacuum Suction Cups ZP2

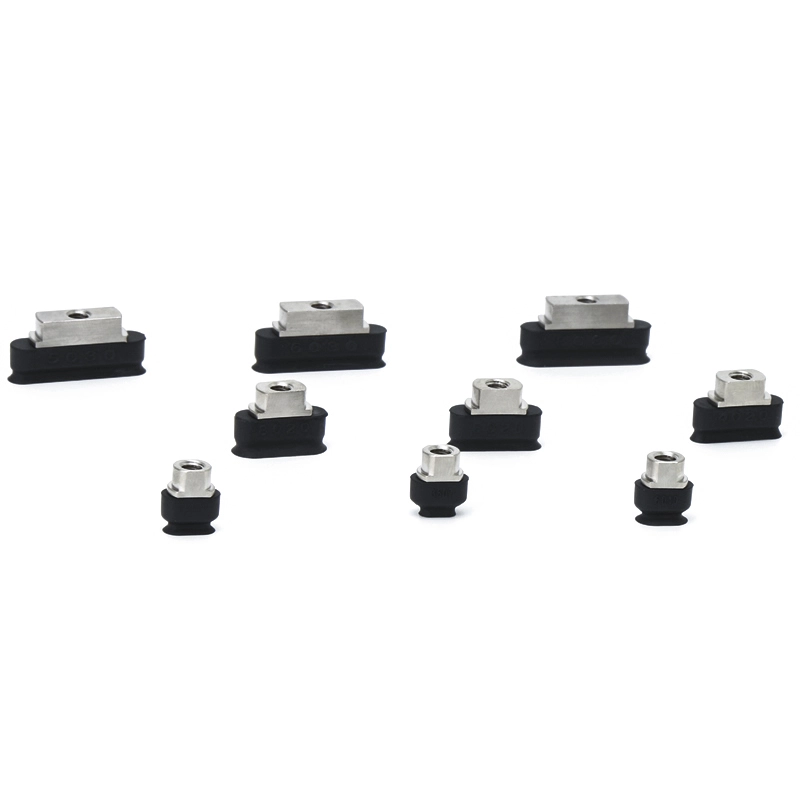

ZP2 Series Oval Vacuum Pad Unit

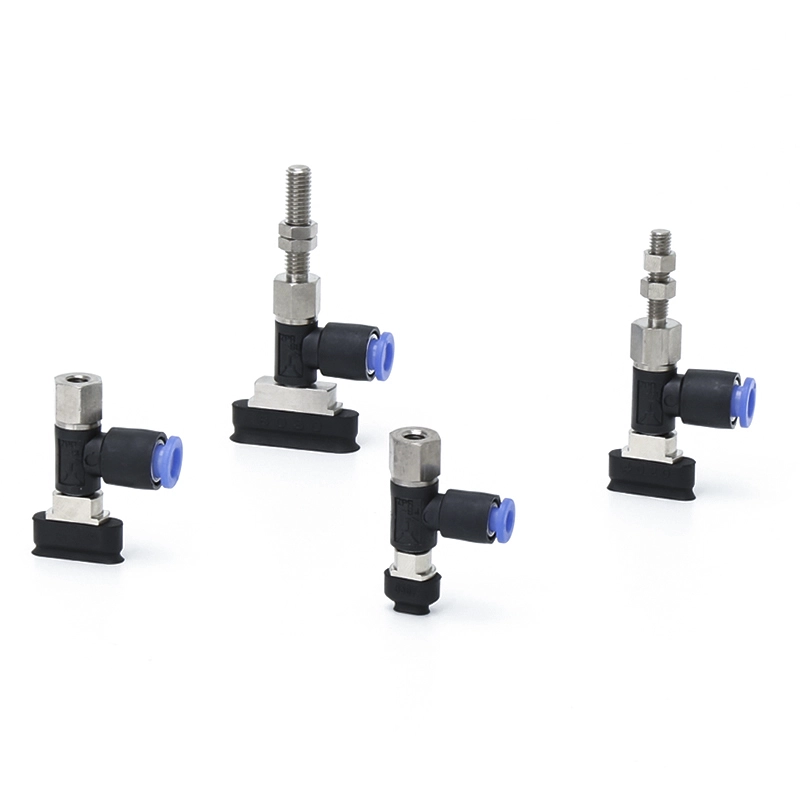

ZP2-T Series With Adapter Oval Vacuum Pad

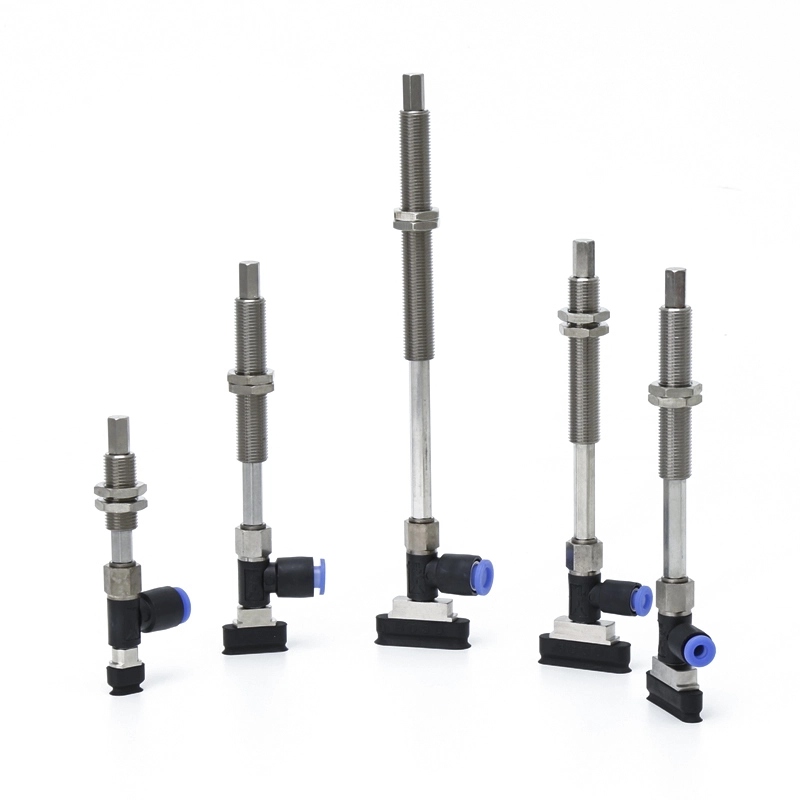

ZP2-T Series With Buffer Oval Vacuum Pad
ZP2-R Series With Adapter Oval Vacuum Pad

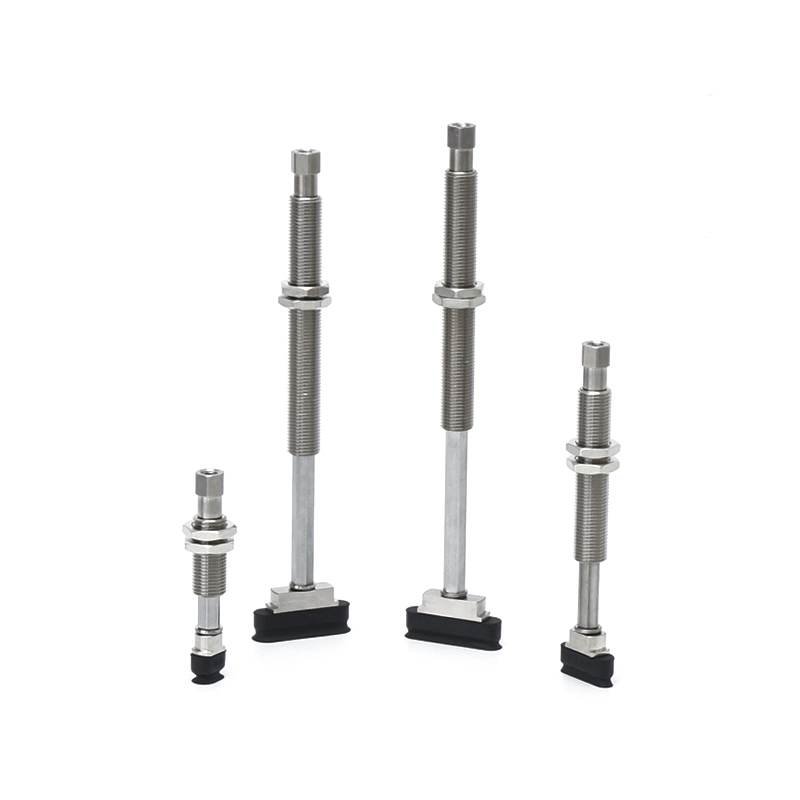

ZP2-R Series With Buffer Oval Vacuum Pad
Description
How to Order
Specifications / Material
Applications
Resource
As a leading China manufacturer, our factory provides customized Oval Vacuum Suction Cups ZP2 solutions tailored to the rigorous demands of the electronics and automotive sectors. Whether you are a high-volume supplier or an end-user, our ZP2 oval series delivers the reliability needed for precision handling.
Key Technical Features and Specifications
1. Extensive Range of Specifications
To ensure a perfect fit for every slender workpiece, we offer 12 standard specifications for the Oval Vacuum Suction Cups ZP2:
Compact Sizes: 3.5×7, 4×10, 5×10, 6×10mm.
Medium Lengths: 4×20, 5×20, 6×20, 8×20mm.
Extended Reach: 4×30, 5×30, 6×30, 8×30mm.
2. Industry-Specific Material Excellence
We utilize high-grade materials to match your working environment:
High-Quality Silicone & NBR: For general-purpose and high-temperature tasks.
Anti-static (ESD) Materials: Essential for PCB and semiconductor handling.
All-Stainless Steel Accessories: Specialized configurations optimized for the Lithium Battery Industry.
Core Advantages & Highlights
Optimized for Confined Spaces: The narrow profile of the Oval Vacuum Suction Cups ZP2 allows for high-density picking on crowded PCBs or narrow packaging profiles where circular cups simply won't fit.
Enhanced Grip Stability: The elongated suction area provides a larger "footprint" on slender items like pipes or sealing strips, significantly reducing the risk of the workpiece tilting or sliding.
Flexible Installation: Supports both vertical and lateral vacuum inlets. Each cup can be paired with an adapter or a buffer bracket (6mm–50mm stroke) to mitigate impact on fragile surfaces.
Factory-Direct Supply: Our China-based factory maintains a large volume of in-stock products, ensuring short lead times and competitive pricing for global procurement.
Typical Application Scenarios
Electronics & Semiconductors: PCB assembly, flexible circuit board fabrication, and battery electrode positioning.
Automotive Parts: Oval Vacuum Suction Cups ZP2 is frequently utilized for the handling and assembly of sealing strips, elongated trim pieces, and plastic profiles.
Packaging & Logistics: High-speed labeling, carton sealing, and sorting of elongated packages.

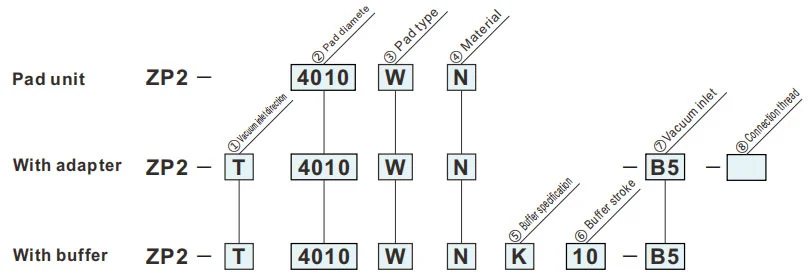

How to Order
- For work pieces with limitations on the adsorptionsurface.
| ①Vacuum inlet direction | ⑦Vacuum inlet | ⑧Connection thread | ||
| T | Vertical |
|
B5 |
— |
|
B50406 |
— | ||
| R | Lateral |
|
0406 |
B5 |
|
0406 |
A5 |
||
|
0406 |
— | ||
| ②Pad size | |
| 3507 | 3.5 x7 |
| 4010 | 4 x10 |
| 5010 | 5 x10 |
| 6010 | 6 x10 |
| 4020 | 4 x20 |
| 5020 | 5 x20 |
| 6020 | 6 x20 |
| 8020 | 8 x20 |
| 4030 | 4 x30 |
| 5030 | 5 x30 |
| 6030 | 6 x30 |
| 8030 | 8 x30 |
| ③Pad type | |
| W | Oval |
| ⑦Vacuum inlet | |
| B5 | M5x0.8(Female) |
| 04 | ø4One-touchfitting |
| 06 | ø6One-touchfitting |
| ④Material | |
| N | NBR |
| S | Silicone rubber |
| U | Urethane rubber |
| F | FKM |
| GN | Conductive NBR |
| GS | Conductive silicone rubber |
Green symbol is customized models.
| ⑤Buffer specification | |
| K | Non-rotating |
| ⑥Buffer stroke | |
| 10 | 10mm |
| 20 | 20mm |
| 30 | 30mm |
| 40 | 40mm |
| 50 | 50mm |
| ⑧Connection thread | |
| A5 | M5x0.8(Male) |
| B5 | M5x0.8(Female) |
Dimensions(mm)
Green symbol is customized models.
PP
Cube type
| Model | A | B | C | D | øE | Y | |||
|
② Pad Size |
③ Pad type |
④ Pad Material |
|||||||
| ZP2 | 3507 | W |
N S U F GN GS |
3.5 | 4.5 | 7 | 8 | 2×ø1.5 | 0.5 |
| 4010 | 4 | 5 | 10 | 11 | |||||
| 5010 | 4 | 6 | ø2.5 | ||||||
| 6010 | 6 | 7 | |||||||
| 4020 | 4 | 5 | 20 | 21 | 2×ø1.8 | 0.5 | |||
| 5020 | 5 | 6 | 2×ø2 | ||||||
| 6020 | 6 | 7 | ø2.5 | ||||||
| 8020 | 8 | 9 | ø3 | 0.8 | |||||
| 4030 | 4 | 5 | 30 | 31 | 2×ø1.8 | 0.5 | |||
| 5030 | 5 | 6 | ø2.5 | ||||||
| 6030 | 6 | 7 | |||||||
| 8030 | 8 | 9 | 0.8 | ||||||
Model for refer: ZP2-4030WS
Adapter Mounting Dimensions
Applicable pad: 3507W/4010W/5010W/6010W
Applicable pad: 4020W/5020W/6020W/8020W
Applicable pad: 4030W/5030W/6030W/8030W
Pad Material and Characteristics
⚪:Little or no influence △:Can be used depending on conditions X:Not suitable
|
Material
Characteristics
|
Symbol |
Durometer HS (±5°) |
Color of rubber |
Operating temperature range (°C) |
Oil resistance gasoline |
Oil resistance benzol |
Base resistance |
Acid resistance |
Weatherability |
Ozone resistance |
Abrasion resistance |
Waterproof |
Solvent resistance (Benzene, toluene) |
Application |
| NBR | N | 50 | Black | 0 ~ 120 | ⚪ | X | △ | △ | X | X | ⚪ | △ | X | Transfer of general work, Corrugated board, Veneer plate, Iron plate and others |
| Silicone rubber | S | 45 ~ 50 | White | -30 ~ 200 | X | X | △ | X | ⚪ | ⚪ | X | △ | X | Semiconductor, Removing from die-casting, Thin work, Food processor |
| Urethane rubber | U | 50 ~ 60 | Brown | 0 ~ 60 | ⚪ | X | X | X | △ | ⚪ | ⚪ | X | X | Corrugated board, Iron plate, Veneer plate |
| FKM | F | 60 | Black | 0 ~ 250 | ⚪ | ⚪ | X | ⚪ | ⚪ | ⚪ | △ | ⚪ | ⚪ | Chemical work |
| Conductive NBR | GN | 50 ~ 65 | 0 ~ 100 | △ | X | △ | X | △ | X | △ | △ | X | General work of semiconductor (Static electricity resistance) | |
| Conductive silicone rubbe | GS | 50 ~ 60 | -10 ~ 200 | X | X | △ | X | ⚪ | ⚪ | X | △ | X | Semiconductor (Static electricity) |
The above table covers only general characteristics of subject rubber materials. Blue symbol is customized models .
Application outline of pneumatic components (vacuum suction cup) in various industrial fields
I. Core strengths
II. Extraction of applications by industry
A. Medicine and medical industry
A.1：Core requirements: Clean and pollution-free (FDA/GMP compliant), gentle and non-damaging, and cross-contamination prevention
A.2 Key scenarios:
1. Pharmaceutical packaging: drug bottle / pharmaceutical plate / infusion bag pickup (food grade silicone suction cup, no particle shedding)
2. Medical device assembly: surgical instruments/medical catheters/pieces of prosthesis handling (adjustable negative pressure, deformation protection)
3. Biological laboratory: petri dish/centrifuge tube/reagent card transfer (chemical resistant, sterile compatible)
B. Electronics and semiconductor industry
B.1 Core requirements: anti-static (10⁶-10¹¹Ω), precision positioning (error ≤0.01mm), scratch resistance
B.2 Key scenarios:
1. Chip/Semiconductor: wafer handling, chip packaging (porous ceramic/anti-static silicone suction cup, uniform negative pressure to prevent rupture)
2. PCB/Components: Flexible PCB, micro components (0402 resistors) surface-mounted (thin silicone/gel/micro suction cups to prevent wrinkling/tearing)
3. Display: LCD/OLED panel, touch glass grab (high transparent material, no stains and scratches)
C. Automobile and auto parts industry
C.1 Core requirements: large suction (single suction disk ≥500N), multi-specification adaptation (metal/plastic/glass), non-slip
C.2 Key scenarios:
4. Body manufacturing: steel plate / door frame handling welding (large diameter rubber / multi-suction cup array, anti-slip texture)
5. Glass / Interior: Windscreen installation, leather seat surface transfer (temperature resistant silicone / sponge suction cups, deformation protection)
6. Parts: engine cylinder body / gearbox housing grab (vacuum + mechanical lock, anti-fall)
D. Food and packaging industry
D.1 Core requirements: Food grade material (FDA certified), easy to clean, crush resistant
D.2 Key scenarios:
1. Food handling: baked goods / fresh meat / fruit sorting (low suction sponge suction cup, odorless and easy to wash)
2. Packaging automation: packaging bag opening, sterile carton molding (static elimination/ multi-point suction, suitable for thin/hard packaging)
E. Logistics and warehousing industry
E.1 Core requirements: efficient adaptation (multiple specifications of goods), stable pressure, anti-fall
E.2 Key scenarios:
1. Carton handling: e-commerce carton sorting (adjustable suction array, vacuum pressure)
2. Plate/roll: Wood board/plastic film roll transfer (long strip/annular suction cup, uniform adsorption to prevent offset)
F. New energy and special industries
F.1 New energy (lithium battery/pv):
1. Lithium battery plate (anti-static porous suction cup, anti-dust), photovoltaic glass (large suction silicone suction cup, no scratch)
F.2 Printing and paper
1. Paper/printed matter capture (absorbent paper material, slight negative pressure to prevent tearing and ink contamination)
III. Summary of core adaptation logic
| Workpiece characteristics | Pipette adaptation programme | Corresponding industry scenarios |
| Thin / Fragile / Precision | Silicone/ceramic material, micro negative pressure, micro suction nozzle | Electronic semiconductors, pharmaceuticals |
| Heavy items / Large size | Rubber material, large diameter suction cup, multi-suction cup array | Automobiles, logistics panels |
| Health/Prevention of pollution | Food/medical grade silicone, easy to clean structure | Medicine, food |
| Soft / irregular surfaces | Sponge material, deformable suction cup | Car interiors, food |
| Antistatic requirements | Antistatic silicone, ion wind assisted | electronic semi-conductor |
