Vacuum suction is a core solution for "flexible grasping" in industrial automation with four core advantages: non-damaging grasping, adaptability to multi-material/irregular workpieces, clean and environmental protection, and flexible operation. It can be adapted to different industry characteristics of workpieces (thin/thick, precision/coarse, sanitary/standard).

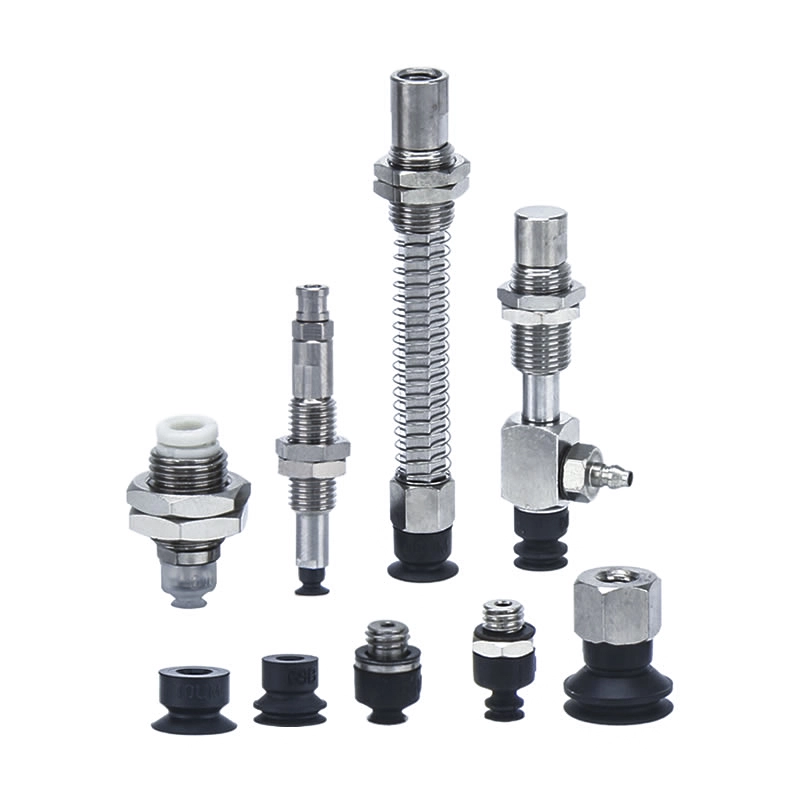

Compact Vacuum Suction Cups ZP3
The Commaelec factory maintains extensive ready-to-ship inventory and offers high-quality options in rubber, silicone, and specialized materials—including anti-static variants. The Compact Vacuum Suction Cups ZP3 features a diameter range spanning 1.5 mm to 16 mm; these miniature components are meticulously engineered specifically for the electronics industry.
Click and Start the Selection
》Return to Product Information
Compact Vacuum Suction Cups ZP3

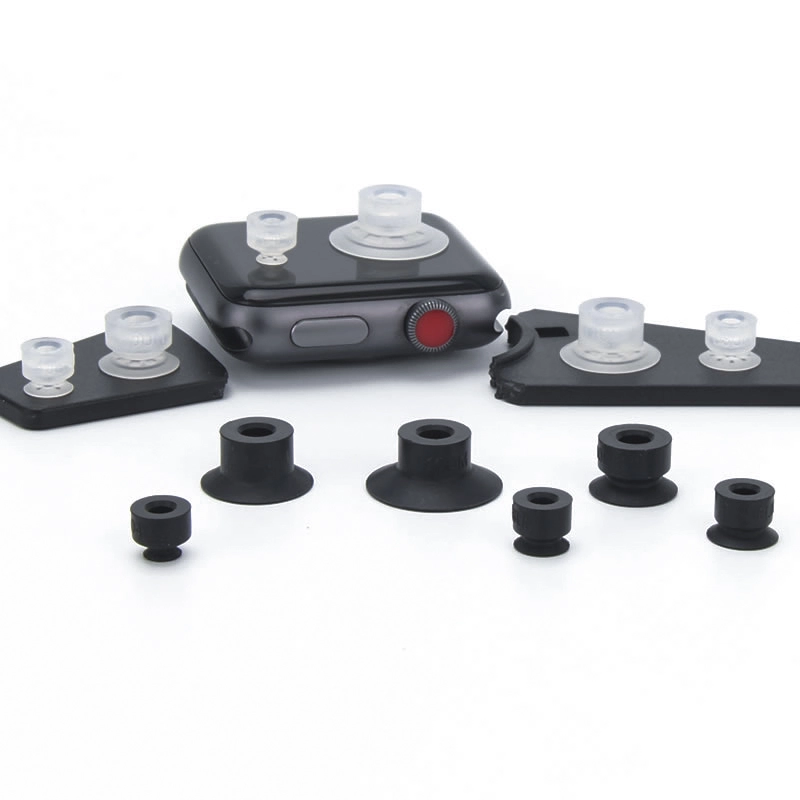

ZP3 Series Compact Vacuum Pad Unit

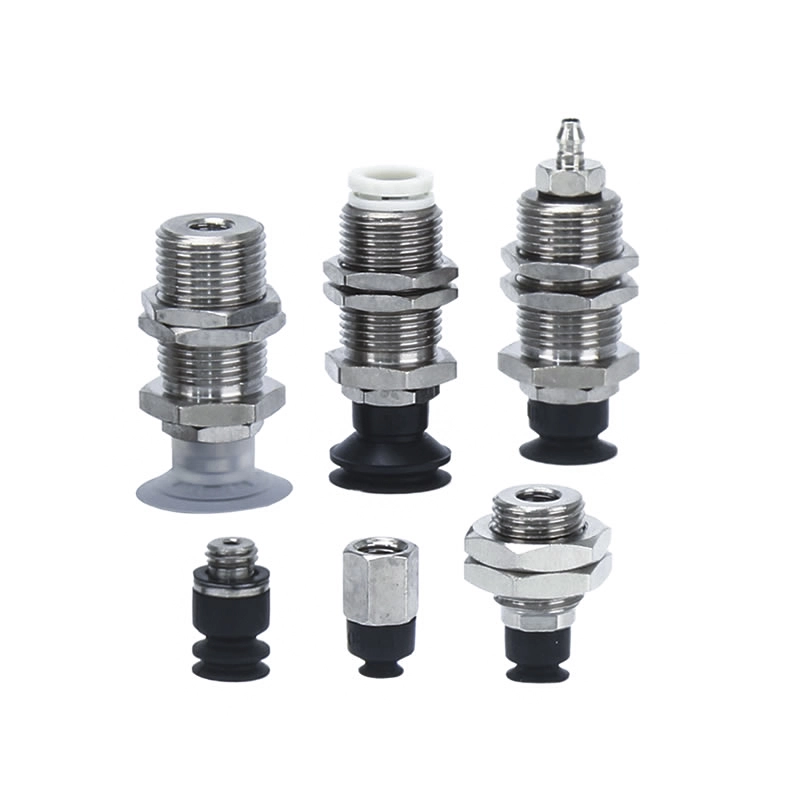

ZP3-T Series With Adapter Compact Vacuum Pads

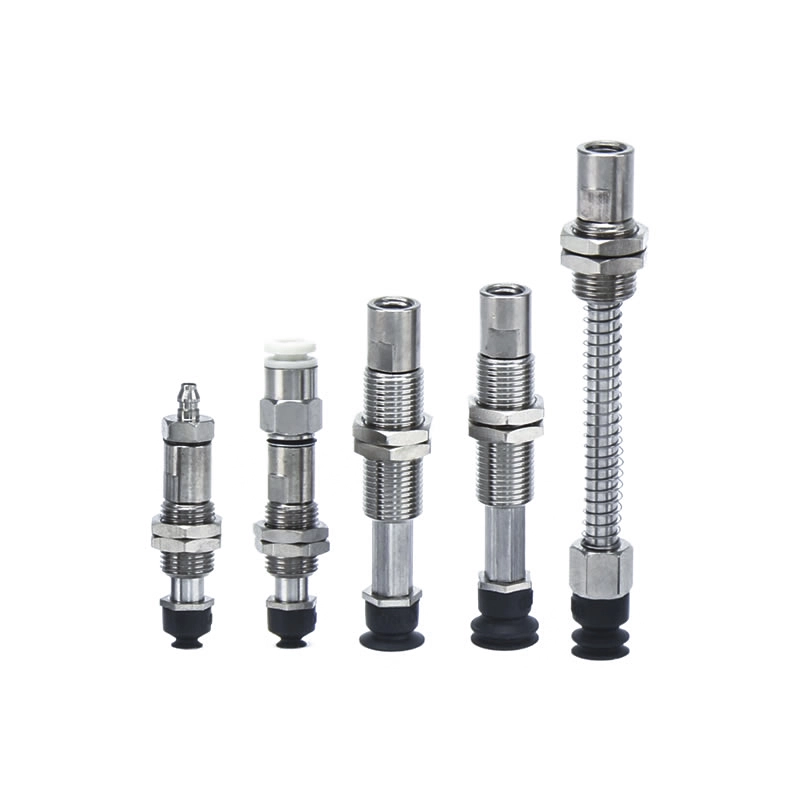

ZP3-T Series With Buffer Compact Vacuum Pads
ZP3-Y Series With Adapter Compact Vacuum Pads

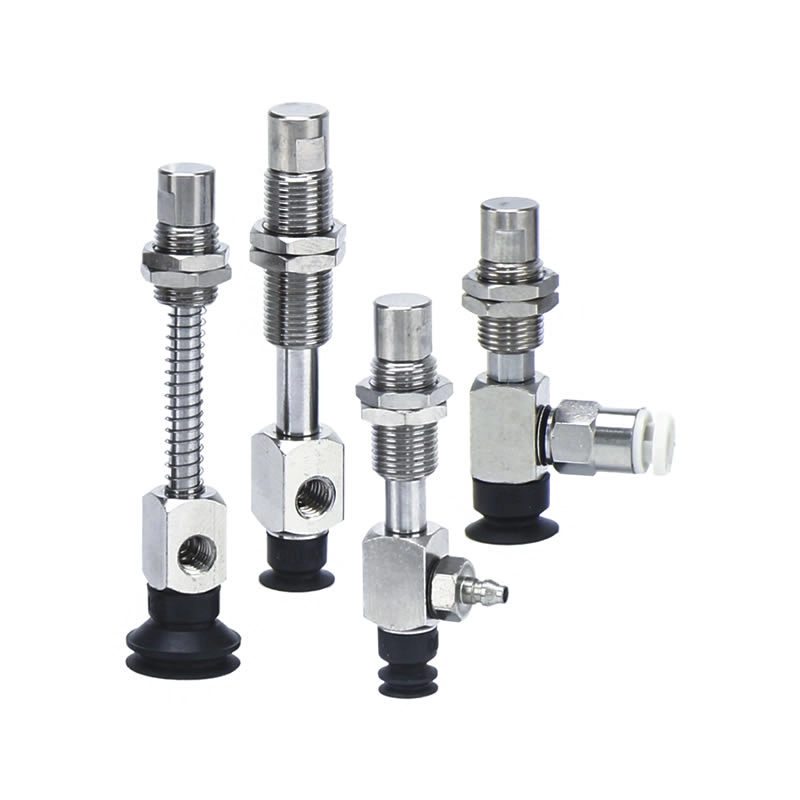

ZP3-Y Series With Buffer Compact Vacuum Pads
Description
How to Order
Specifications / Material
Applications
Resource
The Compact Vacuum Suction Cups ZP3 are specially designed for the electronics industry, providing precise, reliable gripping for small or delicate components. With diameters from 1.5mm to 16mm, they integrate seamlessly into automated production and robotic systems.
FAQ
What are Typical Applications?
Handling small electronic components and circuit boards.
Transporting precision metal parts and lithium battery cells.
Integration in robotic assembly lines for fast, repeatable pick-and-place operations.
What is the ZP3P Series?
A high-performance variant of the ZP3 designed for high-cycle automation.
Offers multiple sizes, shapes, and material options, meeting diverse industrial gripping needs.
What is the Difference Between ZP3 and ZP3-T?
ZP3: Standard compact vacuum cup for precise handling.
ZP3-T: Enhanced for high-temperature or chemically sensitive environments, using specialized materials.
Key Design Features
Compact size for tight installation spaces.
Flexible vacuum inlet directions (vertical and lateral).
Optional adapters, buffer brackets, and all-stainless steel accessories.
Designed for stable adhesion and minimal vacuum loss.
What Materials Are Available?
High-quality rubber and silicone.
Anti-static variants for electronics.
Stainless steel accessories for lithium battery applications.
Which Pad Shape Should I Use?
Flat: For smooth, even surfaces.
Bellows or Deep: For uneven, slightly deformed, or textured components.
Custom shapes: The Compact Vacuum Suction Cups ZP3 can be customized to meet the specific requirements of the workpiece and the demands of the automated integration system.

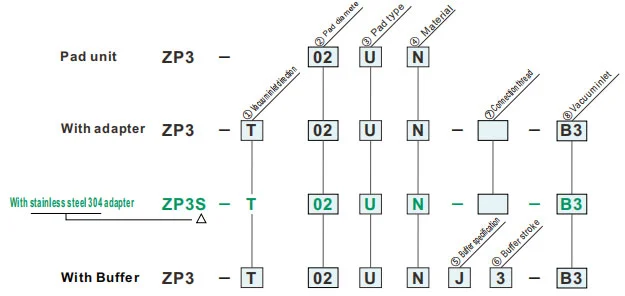

How to Order
| ①Vacuum inlet direction | ⑦Connection thread | ⑧Vacuum inlet | |||||
| T | Vertical |
|
— |
A3A4 |
|||
|
— |
B3 |
|||||
|
A6 |
B3U404U2 |
|||||
|
— |
B304U2U4 |
|||||
| Y | Lateral |
|
B3 |
B304U2U4 |
|||
|
— |
B304U2U4 |
|||||
| ②Pad diamete(mm) | |
| 015 | ø1.5 |
| 02 | ø2 |
| 035 | ø3.5 |
| ③Pad type | |
| U | Flat |
| ④Material | |
| N | NBR |
| S | Silicone rubber |
| U | Urethane rubber |
| F | FKM |
| GN | Conductive NBR |
| GS | Conductive silicone rubber |
Green symbol is customized models.
| ⑤Buffer specification | |
| J | Rotating |
| K | Non-rotating |
| ⑥Buffer stroke | |
| 3 | 3mm |
| 6 | 6mm |
| ⑦Connection thread | |
| A6 | M6x0.75 (Male thread) |
| B3 | M3x0.5 (Female thread) |
| ⑧Vacuum inlet | |
| A3 | M3x0.5(Male thread) |
| A4 | M4x0.7(Male thread) |
| B3 | M3x0.5(Female thread) |
| 04 | ø4(One-touch fitting) |
| U2 | ø2(Barb fitting) |
| U4 | ø4(Barb fitting) |
Spring reactiveforce
| Pad type | Buffer specification | Buffer stroke(mm) | Connection thread |
Tightening torque ±5% [N·m] |
Spring reactive force[N] | |
| At 0 stroke | At full stroke | |||||
| ø1.5~ø3.5 | J | 3,6 | M6 x0.75 | 1.5-1.8 | 0.2 |
0.4 0.5 |
| K | M8 x0.75 | 2.0-2.5 | ||||
| Adapter Mounting Dimensions |
|
Pad diamete: ø4 ~ø8
|
|
Pad diamete: ø10 ~ø16
|
| ①Vacuum inlet direction | ⑦Connection thread | ⑧Vacuum inlet | ||
| T | Vertical |
|
— |
A4A5H5 |
|
— |
B4B5 |
||
|
A10A12 |
B50406U2U4U6 |
||
|
— |
B50406U2U4U6 |
||
| Y | Lateral |
|
B5 |
B50406U2U4U6 |
|
— |
B50406U2U4U6 |
||
| ②Pad diamete(mm) | |
| 04 | ø4 |
| 06 | ø6 |
| 08 | ø8 |
| 10 | ø10 |
| 13 | ø13 |
| 16 | ø16 |
| ③Pad type | |
| UM | Flat with groove |
| B | Bellows |
| ④Material | |
| N | NBR |
| S | Silicone rubber |
| U | Urethane rubber |
| F | FKM |
| GN | Conductive NBR |
| GS | Conductive silicone rubber |
Green symbol is customized models.
|
⑤Buffer specification
⑥Buffer stroke(mm)
|
3 | 6 | 10 | 15 | 20 | |
| 3 | 6 | 10 | 15 | 20 | ||
| J | Rotating | ● | ● | ● | — | — |
| JB | Rotating (With Bushing) | — | — | — | ● | ● |
| K | Non-rotating | ● | ● | ● | ● | ● |
| ⑦Connection thread | |
| A10 | M10x1 (Male thread) |
| A12 | M12x1 (Male thread) |
| B5 | M5x0.8 (Female thread) |
| ⑧Vacuum inlet | |
| A4 | M4x0.7 (Male thread) |
| A5 | M5x0.8 (Male thread) |
| H5 | M5x0.8 (Male thread) |
| B4 | M4x0.7 (Female thread) |
| B5 | M5x0.8 (Female thread) |
| 04 | ø4 (One-touch fitting) |
| 06 | ø6 (One-touch fitting) |
| U2 | ø2 (Barb fitting) |
| U4 | ø4 (Barb fitting) |
| U6 | ø6 (Barb fitting) |
Dimensions(mm)
Green symbol is customized models.
U
Flat
| Model | øA | øB | |||
|
② Pad dia. |
③ Pad type |
④ Pad Material |
|||
| ZP2 | 015 | U |
N S U F GN GS |
1.5 | 3 |
| 02 | 2 | 4 | |||
| 035 | 3.5 | 6 | |||
Model for refer: ZP3-015UGN
Adapter Mounting Dimensions
UM
Flat with groove
| Model | øA | øB | øC | øD | E | Y | |||
|
② Pad dia. |
③ Pad type |
④ Pad Material |
|||||||
| ZP3 | 04 | UM |
N S U F GN GS |
4 | 4.5 | 1.2 | 7 | 6 | 0.5 |
| 06 | 6 | 6.5 | 2 | 0.8 | |||||
| 08 | 8 | 8.5 | |||||||
| 10 | 10 | 11 | 2 | 9 | 7 | 1 | |||
| 13 | 13 | 14 | 1.2 | ||||||
| 16 | 16 | 17 | |||||||
Model for refer: ZP3-04UMGN
B
Bellows
| Model | øA | øB | øC | øD | E | F | Y | |||
|
② Pad dia. |
③ Pad type |
④ Pad Material |
||||||||
| ZP3 | 04 | B |
N S U F GN GS |
4 | 4.5 | 1.8 | 1.8 | 7 | 8 | 2.2 |
| 06 | 6 | 7 | 2 | 3.4 | 3 | |||||
| 08 | 8 | 9 | 5.2 | |||||||
| 10 | 10 | 11 | 2 | 6 | 9 | 10 | 2 | |||
| 13 | 13 | 14 | 3 | 8.4 | ||||||
| 16 | 16 | 17 | 11.4 | |||||||
Model for refer: ZP3-04UMGN
Pad Material and Characteristics
⚪:Little or no influence △:Can be used depending on conditions X:Not suitable
| Pad type | Pad diameter(mm) | Application | Typical workpiece surfaces and shapes | |||||||
| Flat | Waved | Oblique | Different heights | Convex | Oily | |||||
|
|
|
|
|
|
|||||
| Compact P ad | Flat (U) |
|
ø1.5~ø3.5 | For adsorption of work pieces with flat and not deformed surface | ⚪ | X | X | X | X | X |
| Flat with groove (UM) |
|
ø4~ø16 | For a workpiece which is likely to deform | ⚪ | X | X | X | X | △ | |
| Bellows(B) |
|
ø4~ø16 | For adsorption of work pieces with inclined surface | ⚪ | △ | ⚪ | X | △ | X | |
Pad Material and Characteristics
⚪:Little or no influence △:Can be used depending on conditions X:Not suitable
|
Material
Characteristics
|
Symbol |
Durometer HS (±5°) |
Color of rubber |
Operating temperature range (°C) |
Oil resistance gasoline |
Oil resistance benzol |
Base resistance |
Acid resistance |
Weatherability |
Ozone resistance |
Abrasion resistance |
Waterproof |
Solvent resistance (Benzene, toluene) |
Application |
| NBR | N | 50 | Black | 0 ~ 120 | ⚪ | X | △ | △ | X | X | ⚪ | △ | X | Transfer of general work, Corrugated board, Veneer plate, Iron plate and others |
| Silicone rubber | S | 45 ~ 50 | White | -30 ~ 200 | X | X | △ | X | ⚪ | ⚪ | X | △ | X | Semiconductor, Removing from die-casting, Thin work, Food processor |
| Urethane rubber | U | 50 ~ 60 | Brown | 0 ~ 60 | ⚪ | X | X | X | △ | ⚪ | ⚪ | X | X | Corrugated board, Iron plate, Veneer plate |
| FKM | F | 60 | Black | 0 ~ 250 | ⚪ | ⚪ | X | ⚪ | ⚪ | ⚪ | △ | ⚪ | ⚪ | Chemical work |
| Conductive NBR | GN | 50 ~ 65 | 0 ~ 100 | △ | X | △ | X | △ | X | △ | △ | X | General work of semiconductor (Static electricity resistance) | |
| Conductive silicone rubbe | GS | 50 ~ 60 | -10 ~ 200 | X | X | △ | X | ⚪ | ⚪ | X | △ | X | Semiconductor (Static electricity) |
The above table covers only general characteristics of subject rubber materials. Blue symbol is customized models .
Application outline of pneumatic components (vacuum suction cup) in various industrial fields
I. Core strengths
II. Extraction of applications by industry
A. Medicine and medical industry
A.1：Core requirements: Clean and pollution-free (FDA/GMP compliant), gentle and non-damaging, and cross-contamination prevention
A.2 Key scenarios:
1. Pharmaceutical packaging: drug bottle / pharmaceutical plate / infusion bag pickup (food grade silicone suction cup, no particle shedding)
2. Medical device assembly: surgical instruments/medical catheters/pieces of prosthesis handling (adjustable negative pressure, deformation protection)
3. Biological laboratory: petri dish/centrifuge tube/reagent card transfer (chemical resistant, sterile compatible)
B. Electronics and semiconductor industry
B.1 Core requirements: anti-static (10⁶-10¹¹Ω), precision positioning (error ≤0.01mm), scratch resistance
B.2 Key scenarios:
1. Chip/Semiconductor: wafer handling, chip packaging (porous ceramic/anti-static silicone suction cup, uniform negative pressure to prevent rupture)
2. PCB/Components: Flexible PCB, micro components (0402 resistors) surface-mounted (thin silicone/gel/micro suction cups to prevent wrinkling/tearing)
3. Display: LCD/OLED panel, touch glass grab (high transparent material, no stains and scratches)
C. Automobile and auto parts industry
C.1 Core requirements: large suction (single suction disk ≥500N), multi-specification adaptation (metal/plastic/glass), non-slip
C.2 Key scenarios:
4. Body manufacturing: steel plate / door frame handling welding (large diameter rubber / multi-suction cup array, anti-slip texture)
5. Glass / Interior: Windscreen installation, leather seat surface transfer (temperature resistant silicone / sponge suction cups, deformation protection)
6. Parts: engine cylinder body / gearbox housing grab (vacuum + mechanical lock, anti-fall)
D. Food and packaging industry
D.1 Core requirements: Food grade material (FDA certified), easy to clean, crush resistant
D.2 Key scenarios:
1. Food handling: baked goods / fresh meat / fruit sorting (low suction sponge suction cup, odorless and easy to wash)
2. Packaging automation: packaging bag opening, sterile carton molding (static elimination/ multi-point suction, suitable for thin/hard packaging)
E. Logistics and warehousing industry
E.1 Core requirements: efficient adaptation (multiple specifications of goods), stable pressure, anti-fall
E.2 Key scenarios:
1. Carton handling: e-commerce carton sorting (adjustable suction array, vacuum pressure)
2. Plate/roll: Wood board/plastic film roll transfer (long strip/annular suction cup, uniform adsorption to prevent offset)
F. New energy and special industries
F.1 New energy (lithium battery/pv):
1. Lithium battery plate (anti-static porous suction cup, anti-dust), photovoltaic glass (large suction silicone suction cup, no scratch)
F.2 Printing and paper
1. Paper/printed matter capture (absorbent paper material, slight negative pressure to prevent tearing and ink contamination)
III. Summary of core adaptation logic
| Workpiece characteristics | Pipette adaptation programme | Corresponding industry scenarios |
| Thin / Fragile / Precision | Silicone/ceramic material, micro negative pressure, micro suction nozzle | Electronic semiconductors, pharmaceuticals |
| Heavy items / Large size | Rubber material, large diameter suction cup, multi-suction cup array | Automobiles, logistics panels |
| Health/Prevention of pollution | Food/medical grade silicone, easy to clean structure | Medicine, food |
| Soft / irregular surfaces | Sponge material, deformable suction cup | Car interiors, food |
| Antistatic requirements | Antistatic silicone, ion wind assisted | electronic semi-conductor |
