Vacuum suction is a core solution for "flexible grasping" in industrial automation with four core advantages: non-damaging grasping, adaptability to multi-material/irregular workpieces, clean and environmental protection, and flexible operation. It can be adapted to different industry characteristics of workpieces (thin/thick, precision/coarse, sanitary/standard).

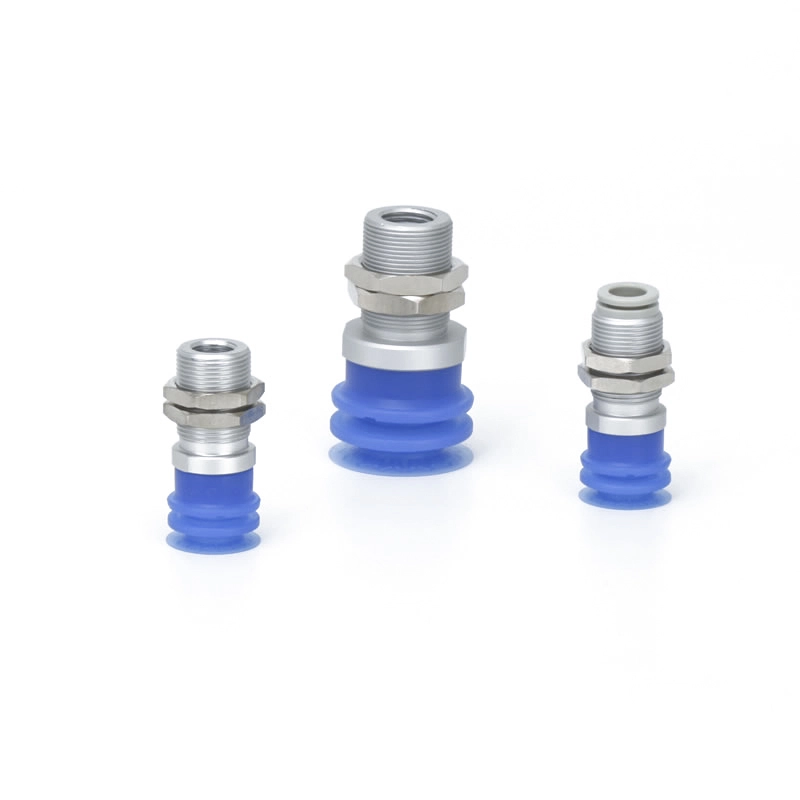

Bellows 2.5-stage Vacuum Suction Cups ZP3P-JT
For Bellows 2.5-stage Vacuum Suction Cups ZP3P-JT are specialized for high-precision handling of thin, flexible, and easily deformable materials. They are widely applied in automated packaging lines for food, medical, and consumer products, enabling stable gripping of film bags, plastic sheets, and soft packaging. With a flexible sealing lip and hygienic silicone materials, they ensure consistent adhesion, reduce deformation, and support clean, efficient operation in high-speed automation environments.
Click and Start the Selection
》Return to Product Information

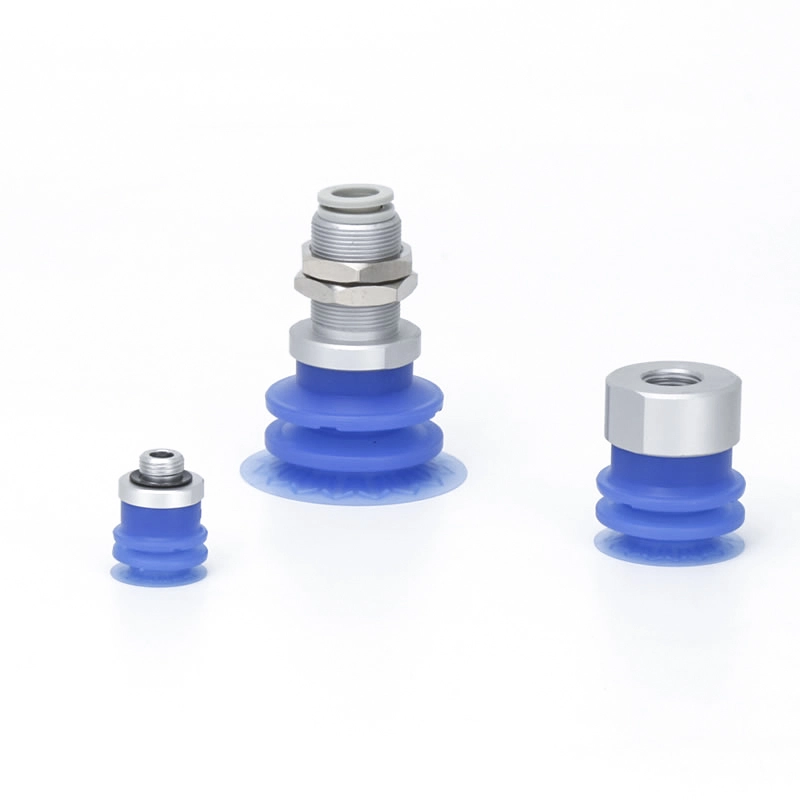

Bellows 2.5-stage Vacuum Suction Cups ZP3P-JT
ZP3P Series Bellows 2.5-stage Vacuum Pad Unit
ZP3P-T Series With Adapter Bellows 2.5-stage Vacuum Pads
Description
How to Order
Specifications / Material
Applications
Resource

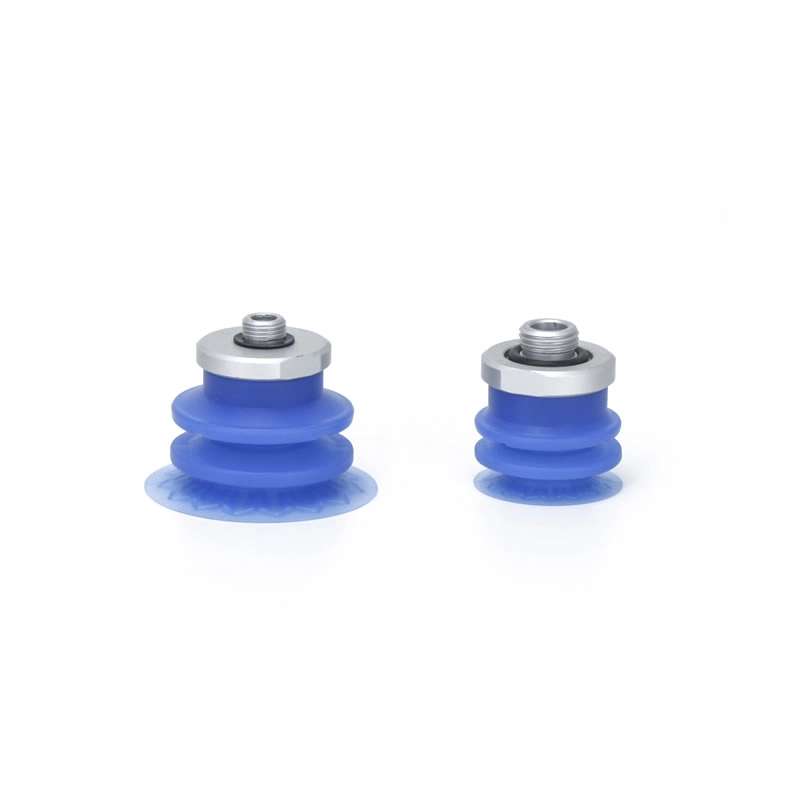

Key Advantages of Bellows 2.5-stage Vacuum Suction Cups ZP3P-JT
Optimum Adaptation & Flexibility: The bellows-type structure and flexible skirt conform to uneven or curved film surfaces, ensuring secure gripping.
Excellent Damping Effect: The accordion design absorbs vibration during high-speed operations, reducing film deformation.
Height Compensation: Multi-stage layers allow for handling films of varying thicknesses without loss of suction.
Reduced Damage/Marking: Soft silicone and specialized skirts protect delicate packaging, preventing wrinkles, tears, or marks.
Versatile Material Handling: Suitable for food, medical, and cosmetic packaging films, as well as thin plastics and ethylene sheets.
Simplified Design: Single-layer or multi-layer configurations support easy installation and integration into automated pick-and-place systems.
FAQ
What is the ZP3P-JT series used for?
The Bellows 2.5-stage Vacuum Suction Cups ZP3P-JT are used for handling flexible films and thin, deformable materials. They are widely applied in food and medical packaging, including beverage bags, powder bags, and pharmaceutical packaging, as well as logistics sorting and automated film processing.
Is there an option to reduce bag deformation?
Yes, the flexible sealing skirt and optimized rib structure help distribute pressure evenly
Minimizes wrinkling, leakage, and deformation during handling
What are the key features of the ZP3P-JT suction cup?
The Bellows 2.5-stage Vacuum Suction Cups ZP3P-JT features a 2.5-stage bellows structure, offering a combination of flexibility and shock-absorbing capabilities. Its skirt incorporates a reinforced rib design, effectively enhancing both sealing performance and stability. The flat suction surface ensures a secure grip on thin film materials, while the unit supports accelerations of up to 4G, effectively suppressing vibration and deformation.
Are they suitable for high-speed applications?
Yes, designed for high-speed automated production lines
Stable performance under rapid acceleration/deceleration (up to 4G)
Ideal for fast pick-and-place and packaging operations

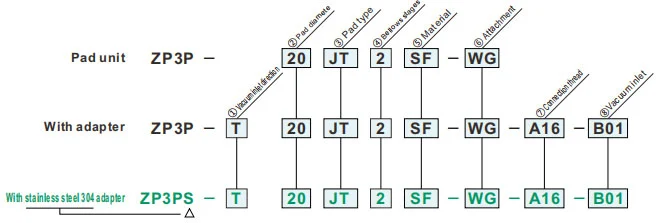

How to Order
- For the adsorption transfer of workpieces with flexible soft film packaging
- Thin film skirt and special shaped ribs
- Flat attachment for reducing wrinkles
- Blue colored pad, easy to distinguish the vacuum pad by color during contamination inspection
Specifications
| Operating temperature range | - 30 ~ 90℃ | |
| Pad | Material | Silicone rubber |
| Color | Blue | |
| Hardness (Shore A:±5°) | A40/S | |
| Attachment | Material | Synthetic resin / Stainless steel |
| Color | White | |
| ①Vacuum inlet direction | |
| T | Vertical |
| ②Pad diamete(mm) | |
| 20 | ø20 |
| 25 | ø25 |
| 32 | ø32 |
| 40 | ø40 |
| 50 | ø50 |
| ③Pad type | |
| JT | Bellows Type |
| ④Bellows stages | |
| 2 | 2.5-Stage |
| ⑤Material | |
| SF | Silicone rubber |
| ⑥Attachment | |
| Nil | Without attachment |
| W | Large hole attachment |
| WF | Flat attachment |
| WM | Mesh attachment |
| WG | Porous attachment |
| ⑦Connection thread | ⑧Vacuum inlet | Pad diameter | |||||
| ø20~ø25 | ø32~ø50 | ||||||
| - | Nil | - |
Male thread |
AG01 | G1/8 | ● | ● |
| AG02 | G1/4 | ● | ● | ||||
| AG03 | G3/8 | ● | ● | ||||
| AG04 | G1/2 | - | ● | ||||
|
Female thread |
BG01 | G1/8 | ● | - | |||
| BG02 | G1/4 | - | ● | ||||
|
Male thread |
A16 | M16 x1.0 |
Female thread |
B01 | Rc1/8 | ● | - |
|
One-touch fitting |
08 | Rc1/4 | ● | - | |||
| A20 | M20 x1.0 |
Female thread |
B02 | 8mm | - | ● | |
|
One-touch fitting |
10 | 10mm | - | ● | |||

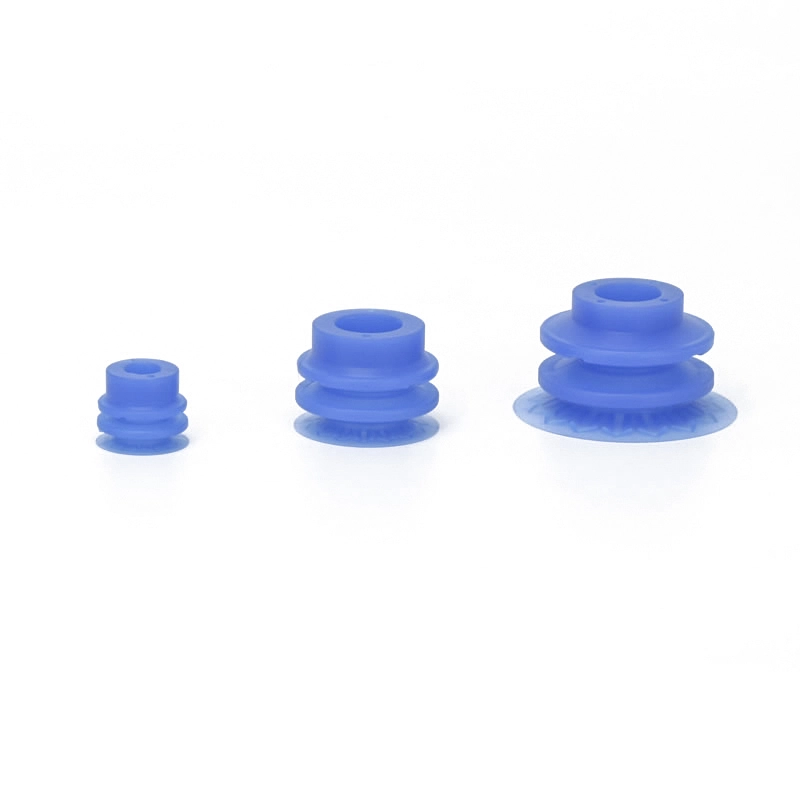

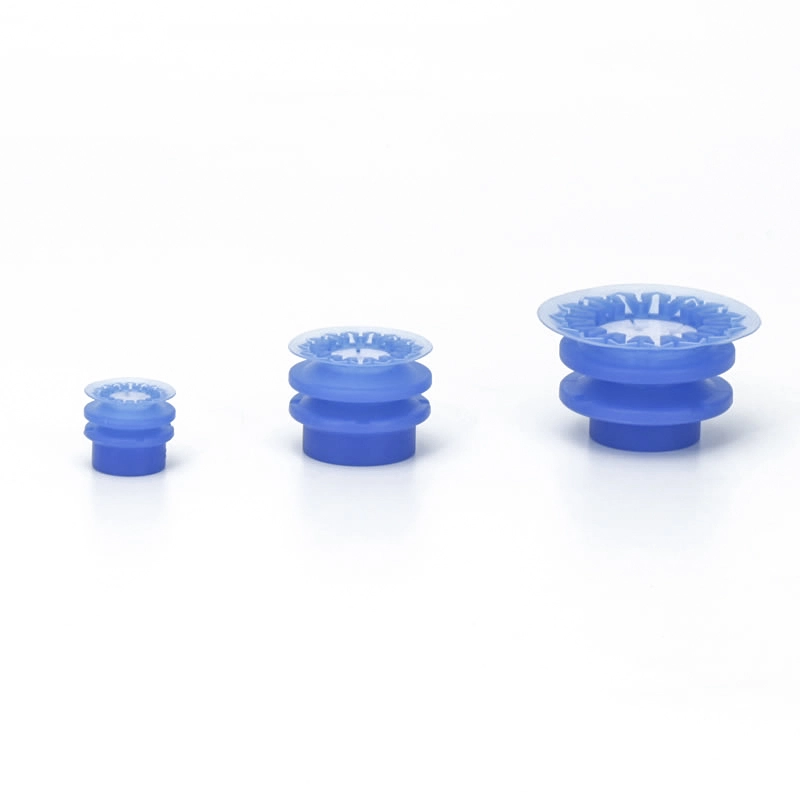

| Attachment | W | WF | WM | WG | |
| Part image |
|
|
|
|
|
| Description |
Expanded hole size to ensure suction flow rate Compatible with vacuum blower pumps |
For reducing wrinkles For thin workpieces with little deformation The suction port is sealed with a flat surface to suppress workpiece suction Limits the movement of the skirt and reduces damage to the workpiece |
Prevents the intrusion of foreign matter into piping Easy to check for clogging and easy to clean Reduced suction filter element replace ment frequency | - | |
| Part number | ø20 | ZP3PW-20JT2 | ZP3PWF-20JT2 | ZP3PWM-20JT2 | ZP3PWG-20JT2 |
| ø25 | ZP3PW-25JT2 | ZP3PWF-25JT2 | ZP3PWM-25JT2 | ZP3PWG-25JT2 | |
| ø32 | ZP3PW-32JT2 | ZP3PWF-32JT2 | ZP3PWM-32JT2 | ZP3PWG-32JT2 | |
| ø40 | ZP3PW-40JT2 | ZP3PWF-40JT2 | ZP3PWM-40JT2 | ZP3PWG-40JT2 | |
| ø50 | ZP3PW-50JT2 | ZP3PWF-50JT2 | ZP3PWM-50JT2 | ZP3PWG-50JT2 | |
Pad Material and Characteristics
⚪:Little or no influence △:Can be used depending on conditions X:Not suitable
|
Material
Characteristics
|
Symbol |
Durometer HS (±5°) |
Color of rubber |
Operating temperature range (°C) |
Oil resistance gasoline |
Oil resistance benzol |
Base resistance |
Acid resistance |
Weatherability |
Ozone resistance |
Abrasion resistance |
Waterproof |
Solvent resistance (Benzene, toluene) |
Application |
| NBR | N | 50 | Black | 0 ~ 120 | ⚪ | X | △ | △ | X | X | ⚪ | △ | X | Transfer of general work, Corrugated board, Veneer plate, Iron plate and others |
| Silicone rubber | S | 45 ~ 50 | White | -30 ~ 200 | X | X | △ | X | ⚪ | ⚪ | X | △ | X | Semiconductor, Removing from die-casting, Thin work, Food processor |
| Urethane rubber | U | 50 ~ 60 | Brown | 0 ~ 60 | ⚪ | X | X | X | △ | ⚪ | ⚪ | X | X | Corrugated board, Iron plate, Veneer plate |
| FKM | F | 60 | Black | 0 ~ 250 | ⚪ | ⚪ | X | ⚪ | ⚪ | ⚪ | △ | ⚪ | ⚪ | Chemical work |
| Conductive NBR | GN | 50 ~ 65 | 0 ~ 100 | △ | X | △ | X | △ | X | △ | △ | X | General work of semiconductor (Static electricity resistance) | |
| Conductive silicone rubbe | GS | 50 ~ 60 | -10 ~ 200 | X | X | △ | X | ⚪ | ⚪ | X | △ | X | Semiconductor (Static electricity) |
The above table covers only general characteristics of subject rubber materials. Blue symbol is customized models .
Application outline of pneumatic components (vacuum suction cup) in various industrial fields
I. Core strengths
II. Extraction of applications by industry
A. Medicine and medical industry
A.1：Core requirements: Clean and pollution-free (FDA/GMP compliant), gentle and non-damaging, and cross-contamination prevention
A.2 Key scenarios:
1. Pharmaceutical packaging: drug bottle / pharmaceutical plate / infusion bag pickup (food grade silicone suction cup, no particle shedding)
2. Medical device assembly: surgical instruments/medical catheters/pieces of prosthesis handling (adjustable negative pressure, deformation protection)
3. Biological laboratory: petri dish/centrifuge tube/reagent card transfer (chemical resistant, sterile compatible)
B. Electronics and semiconductor industry
B.1 Core requirements: anti-static (10⁶-10¹¹Ω), precision positioning (error ≤0.01mm), scratch resistance
B.2 Key scenarios:
1. Chip/Semiconductor: wafer handling, chip packaging (porous ceramic/anti-static silicone suction cup, uniform negative pressure to prevent rupture)
2. PCB/Components: Flexible PCB, micro components (0402 resistors) surface-mounted (thin silicone/gel/micro suction cups to prevent wrinkling/tearing)
3. Display: LCD/OLED panel, touch glass grab (high transparent material, no stains and scratches)
C. Automobile and auto parts industry
C.1 Core requirements: large suction (single suction disk ≥500N), multi-specification adaptation (metal/plastic/glass), non-slip
C.2 Key scenarios:
4. Body manufacturing: steel plate / door frame handling welding (large diameter rubber / multi-suction cup array, anti-slip texture)
5. Glass / Interior: Windscreen installation, leather seat surface transfer (temperature resistant silicone / sponge suction cups, deformation protection)
6. Parts: engine cylinder body / gearbox housing grab (vacuum + mechanical lock, anti-fall)
D. Food and packaging industry
D.1 Core requirements: Food grade material (FDA certified), easy to clean, crush resistant
D.2 Key scenarios:
1. Food handling: baked goods / fresh meat / fruit sorting (low suction sponge suction cup, odorless and easy to wash)
2. Packaging automation: packaging bag opening, sterile carton molding (static elimination/ multi-point suction, suitable for thin/hard packaging)
E. Logistics and warehousing industry
E.1 Core requirements: efficient adaptation (multiple specifications of goods), stable pressure, anti-fall
E.2 Key scenarios:
1. Carton handling: e-commerce carton sorting (adjustable suction array, vacuum pressure)
2. Plate/roll: Wood board/plastic film roll transfer (long strip/annular suction cup, uniform adsorption to prevent offset)
F. New energy and special industries
F.1 New energy (lithium battery/pv):
1. Lithium battery plate (anti-static porous suction cup, anti-dust), photovoltaic glass (large suction silicone suction cup, no scratch)
F.2 Printing and paper
1. Paper/printed matter capture (absorbent paper material, slight negative pressure to prevent tearing and ink contamination)
III. Summary of core adaptation logic
| Workpiece characteristics | Pipette adaptation programme | Corresponding industry scenarios |
| Thin / Fragile / Precision | Silicone/ceramic material, micro negative pressure, micro suction nozzle | Electronic semiconductors, pharmaceuticals |
| Heavy items / Large size | Rubber material, large diameter suction cup, multi-suction cup array | Automobiles, logistics panels |
| Health/Prevention of pollution | Food/medical grade silicone, easy to clean structure | Medicine, food |
| Soft / irregular surfaces | Sponge material, deformable suction cup | Car interiors, food |
| Antistatic requirements | Antistatic silicone, ion wind assisted | electronic semi-conductor |
Installation Manual
