Vacuum suction is a core solution for "flexible grasping" in industrial automation with four core advantages: non-damaging grasping, adaptability to multi-material/irregular workpieces, clean and environmental protection, and flexible operation. It can be adapted to different industry characteristics of workpieces (thin/thick, precision/coarse, sanitary/standard).
Bellows 5.5-stage Vacuum Suction Cups ZP3P-JT

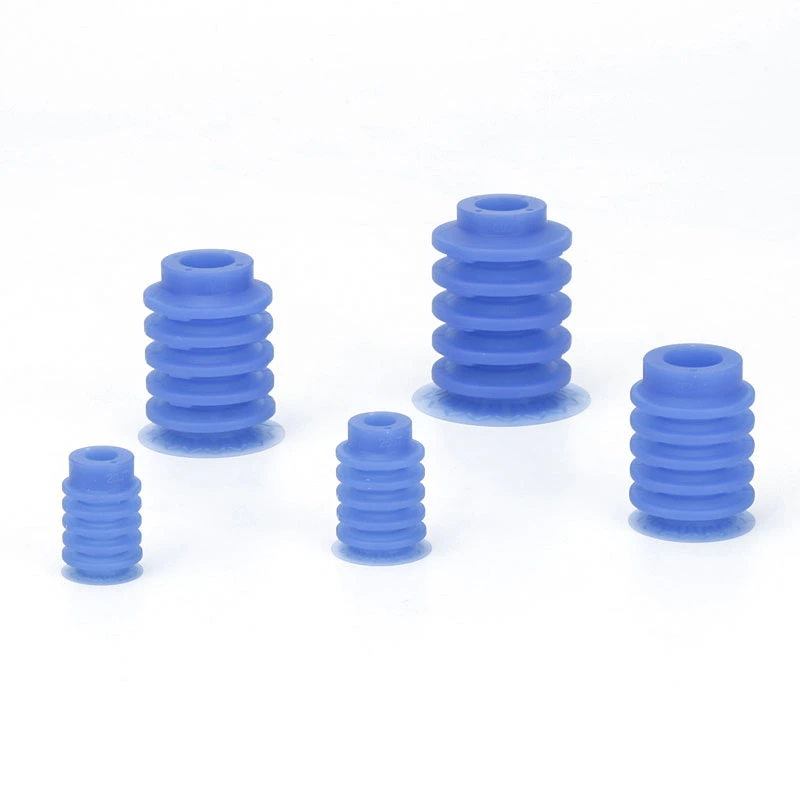

We invite you to select from our factory's Bellows 5.5-stage Vacuum Suction Cups ZP3P-JT, available in a range of diameters including 20mm, 25mm, 32mm, 40mm, and 50mm. This series is specifically engineered for automated film packaging applications within the food and medical industries, and is also ideally suited for handling various flexible materials prone to deformation. The 5.5-bellow (accordion) structure features embedded internal support ribs that effectively prevent the suction cup walls from sticking to one another; furthermore, the inherent cushioning stroke capability of this design automatically compensates for height discrepancies encountered when gripping bagged materials.
Click and Start the Selection
》Return to Product Information
Bellows 5.5-stage Vacuum Suction Cups ZP3P-JT
ZP3P Series Bellows 5.5-stage Vacuum Pad Unit
ZP3P-T Series With Adapter Bellows 5.5-stage Vacuum Pads
Description
How to Order
Specifications / Material
Applications
Resource
What Is the Bellows 5.5-stage Vacuum Suction Cups ZP3P-JT Used For?

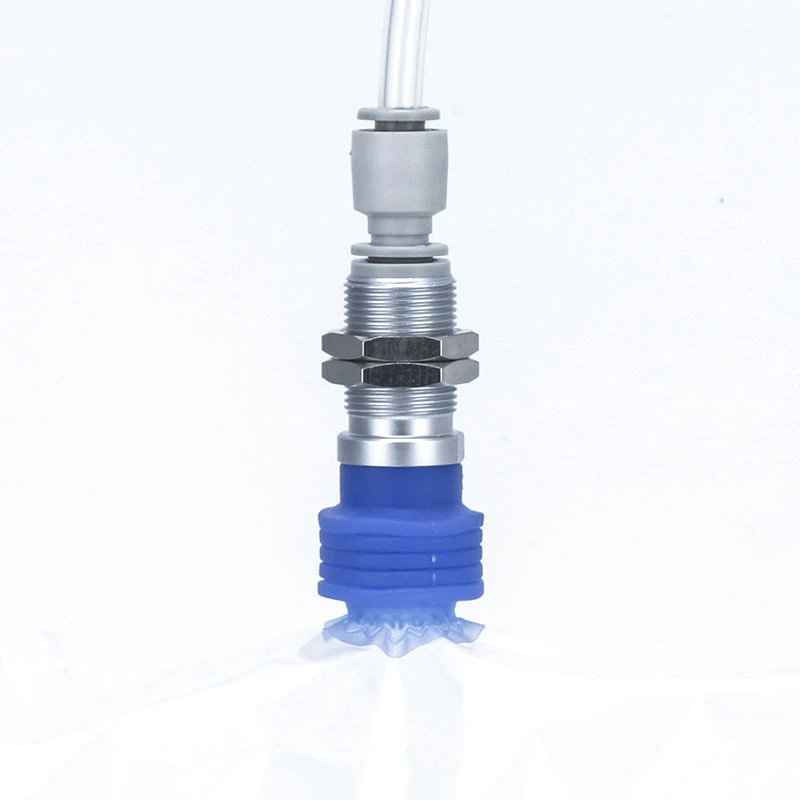

Designed for automated handling of highly deformable film packaging in food and medical industries.
Handles liquid/powder packaging, including beverage bags, sauce packets, milk powder bags, and flour bags.
Suitable for thin films, ethylene sheets, plastic sheets, and other flexible materials in high-precision automated pick-and-place systems.
Also supports light industrial automation scenarios with strict hygiene requirements.
Key Features of the 5.5-Stage Bellows
Accordion-Type Structure: The Bellows 5.5-stage Vacuum Suction Cups ZP3P-JT features a multi-layer bellows design reinforced with support ribs, effectively preventing adhesion and ensuring smooth operation.

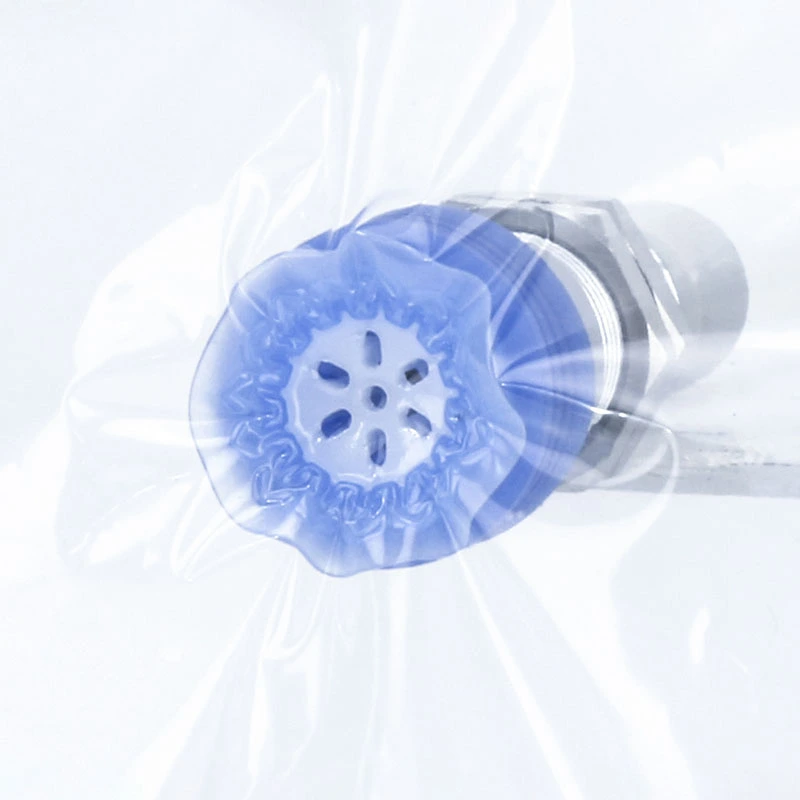

Flexible Film Skirt: Ensures tight seal, reduces leaks, and prevents wrinkles.
Labyrinth Vacuum Channels: Expand suction area and maintain vacuum flow for reliable gripping.

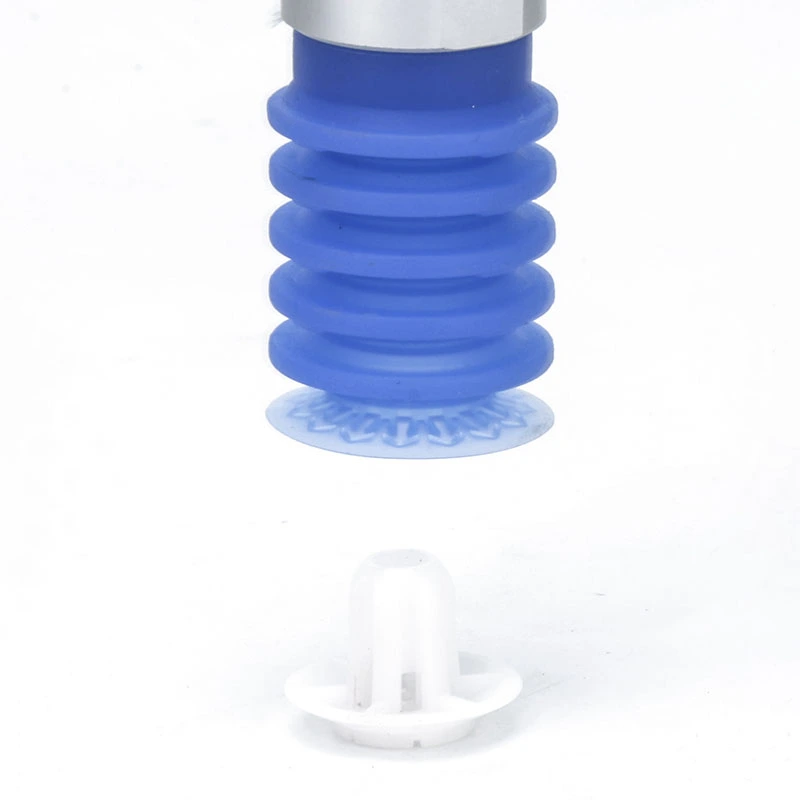

Guide Attachment: Minimizes cup deformation and component vibration during operation.
Cushioned Stroke: Compensates for height variations in bagged components.
Stainless Steel Filter Screen: Prevents foreign object intrusion and allows easy cleaning.
Material and Construction
Made from FDA-certified silicone for medical-grade films.
Blue silicone option suitable for food processing lines and cosmetic packaging, with contamination detection capability.
Available Attachments
Guide attachments for enhanced stability.
Optional buffers to reduce deformation.
Single or multi-layer configurations based on application needs.
Sizes Available
Diameters: 20mm, 25mm, 32mm, 40mm, 50mm.
Compatible with automated systems for various industrial and workpiece handling scenarios.

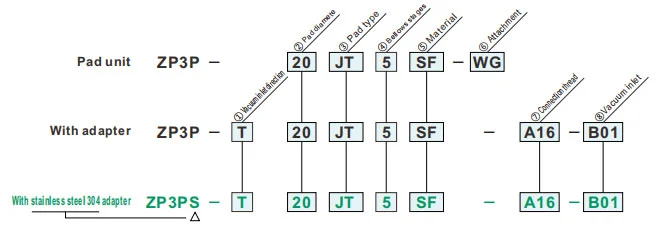

How to Order
- For the adsorption transfer of workpieces with flexible soft film packaging
- Thin film skirt and special shaped ribs
- Guide attachment, Acceleration/deceleration: Adsorption transfer possible at 4G
- Blue colored pad, easy to distinguish the vacuum pad by color during contamination inspection
| ①Vacuum inlet direction | |
| T | Vertical |
| ②Pad diamete(mm) | |
| 20 | ø20 |
| 25 | ø25 |
| 32 | ø32 |
| 40 | ø40 |
| 50 | ø50 |
| ③Pad type | |
| JT | Bellows Type |
| ④Bellows stages | |
| 5 | 5.5-Stage |
| ⑤Material | |
| SF | Silicone rubber |
| ⑥Attachment | |
| WG | With attachment |

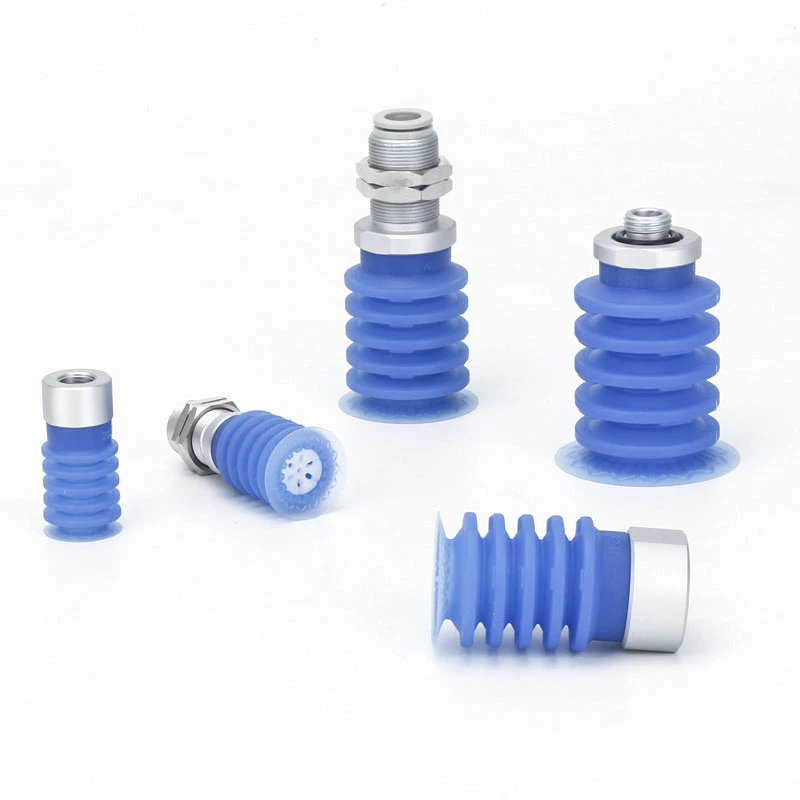

| ⑦Connection thread | ⑧Vacuum inlet | Pad diamete | |||||
| ø20~ø25 | ø32~ø50 | ||||||
| - | Nil | - |
Male thread |
AG01 | G1/8 | ● | ● |
| AG02 | G1/4 | ● | ● | ||||
| AG03 | G3/8 | ● | ● | ||||
| AG04 | G1/2 | - | ● | ||||
|
Female thread |
BG01 | G1/8 | ● | - | |||
| BG02 | G1/4 | - | ● | ||||
|
Male thread |
A16 | M16 x1.0 |
Female thread |
B01 | Rc1/8 | ● | - |
|
One-touch fitting |
08 | Rc1/4 | ● | - | |||
| A20 | M20 x1.0 |
Female thread |
B02 | 8mm | - | ● | |
|
One-touch fitting |
10 | 10mm | - | ● | |||
Replace the attachment
Specifications
| Operating temperature range | - 30 ~ 90℃ | |
| Pad | Material | Silicone rubber |
| Color | Blue | |
| Hardness (Shore A:±5°) | A40/S | |
| Attachment | Material | Synthetic resin |
| Color | White | |
Pad Material and Characteristics
⚪:Little or no influence △:Can be used depending on conditions X:Not suitable
|
Material
Characteristics
|
Symbol |
Durometer HS (±5°) |
Color of rubber |
Operating temperature range (°C) |
Oil resistance gasoline |
Oil resistance benzol |
Base resistance |
Acid resistance |
Weatherability |
Ozone resistance |
Abrasion resistance |
Waterproof |
Solvent resistance (Benzene, toluene) |
Application |
| NBR | N | 50 | Black | 0 ~ 120 | ⚪ | X | △ | △ | X | X | ⚪ | △ | X | Transfer of general work, Corrugated board, Veneer plate, Iron plate and others |
| Silicone rubber | S | 45 ~ 50 | White | -30 ~ 200 | X | X | △ | X | ⚪ | ⚪ | X | △ | X | Semiconductor, Removing from die-casting, Thin work, Food processor |
| Urethane rubber | U | 50 ~ 60 | Brown | 0 ~ 60 | ⚪ | X | X | X | △ | ⚪ | ⚪ | X | X | Corrugated board, Iron plate, Veneer plate |
| FKM | F | 60 | Black | 0 ~ 250 | ⚪ | ⚪ | X | ⚪ | ⚪ | ⚪ | △ | ⚪ | ⚪ | Chemical work |
| Conductive NBR | GN | 50 ~ 65 | 0 ~ 100 | △ | X | △ | X | △ | X | △ | △ | X | General work of semiconductor (Static electricity resistance) | |
| Conductive silicone rubbe | GS | 50 ~ 60 | -10 ~ 200 | X | X | △ | X | ⚪ | ⚪ | X | △ | X | Semiconductor (Static electricity) |
The above table covers only general characteristics of subject rubber materials. Blue symbol is customized models .
Application outline of pneumatic components (vacuum suction cup) in various industrial fields
I. Core strengths
II. Extraction of applications by industry
A. Medicine and medical industry
A.1：Core requirements: Clean and pollution-free (FDA/GMP compliant), gentle and non-damaging, and cross-contamination prevention
A.2 Key scenarios:
1. Pharmaceutical packaging: drug bottle / pharmaceutical plate / infusion bag pickup (food grade silicone suction cup, no particle shedding)
2. Medical device assembly: surgical instruments/medical catheters/pieces of prosthesis handling (adjustable negative pressure, deformation protection)
3. Biological laboratory: petri dish/centrifuge tube/reagent card transfer (chemical resistant, sterile compatible)
B. Electronics and semiconductor industry
B.1 Core requirements: anti-static (10⁶-10¹¹Ω), precision positioning (error ≤0.01mm), scratch resistance
B.2 Key scenarios:
1. Chip/Semiconductor: wafer handling, chip packaging (porous ceramic/anti-static silicone suction cup, uniform negative pressure to prevent rupture)
2. PCB/Components: Flexible PCB, micro components (0402 resistors) surface-mounted (thin silicone/gel/micro suction cups to prevent wrinkling/tearing)
3. Display: LCD/OLED panel, touch glass grab (high transparent material, no stains and scratches)
C. Automobile and auto parts industry
C.1 Core requirements: large suction (single suction disk ≥500N), multi-specification adaptation (metal/plastic/glass), non-slip
C.2 Key scenarios:
4. Body manufacturing: steel plate / door frame handling welding (large diameter rubber / multi-suction cup array, anti-slip texture)
5. Glass / Interior: Windscreen installation, leather seat surface transfer (temperature resistant silicone / sponge suction cups, deformation protection)
6. Parts: engine cylinder body / gearbox housing grab (vacuum + mechanical lock, anti-fall)
D. Food and packaging industry
D.1 Core requirements: Food grade material (FDA certified), easy to clean, crush resistant
D.2 Key scenarios:
1. Food handling: baked goods / fresh meat / fruit sorting (low suction sponge suction cup, odorless and easy to wash)
2. Packaging automation: packaging bag opening, sterile carton molding (static elimination/ multi-point suction, suitable for thin/hard packaging)
E. Logistics and warehousing industry
E.1 Core requirements: efficient adaptation (multiple specifications of goods), stable pressure, anti-fall
E.2 Key scenarios:
1. Carton handling: e-commerce carton sorting (adjustable suction array, vacuum pressure)
2. Plate/roll: Wood board/plastic film roll transfer (long strip/annular suction cup, uniform adsorption to prevent offset)
F. New energy and special industries
F.1 New energy (lithium battery/pv):
1. Lithium battery plate (anti-static porous suction cup, anti-dust), photovoltaic glass (large suction silicone suction cup, no scratch)
F.2 Printing and paper
1. Paper/printed matter capture (absorbent paper material, slight negative pressure to prevent tearing and ink contamination)
III. Summary of core adaptation logic
| Workpiece characteristics | Pipette adaptation programme | Corresponding industry scenarios |
| Thin / Fragile / Precision | Silicone/ceramic material, micro negative pressure, micro suction nozzle | Electronic semiconductors, pharmaceuticals |
| Heavy items / Large size | Rubber material, large diameter suction cup, multi-suction cup array | Automobiles, logistics panels |
| Health/Prevention of pollution | Food/medical grade silicone, easy to clean structure | Medicine, food |
| Soft / irregular surfaces | Sponge material, deformable suction cup | Car interiors, food |
| Antistatic requirements | Antistatic silicone, ion wind assisted | electronic semi-conductor |
