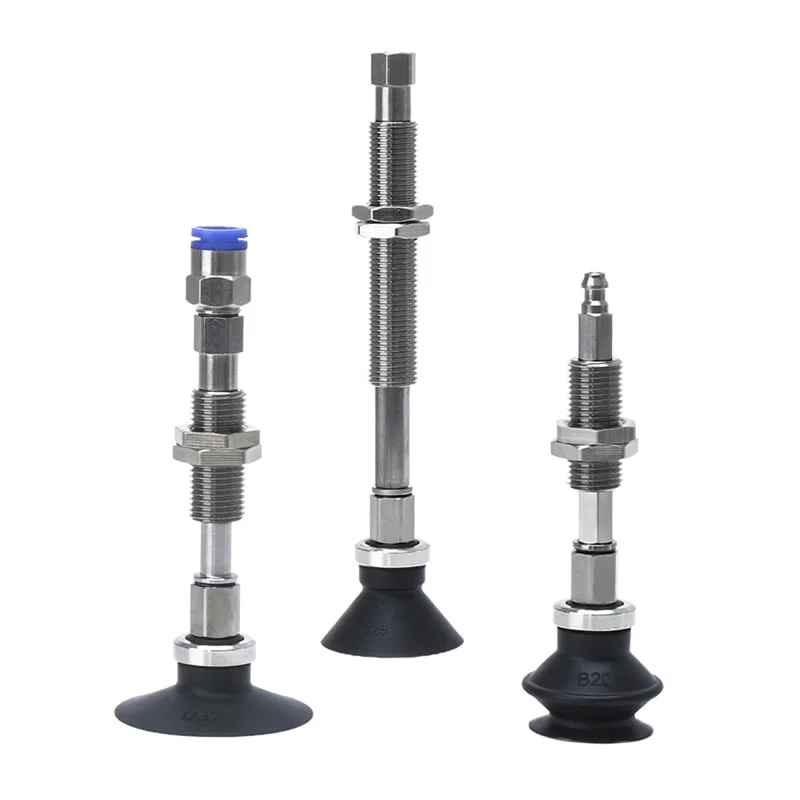

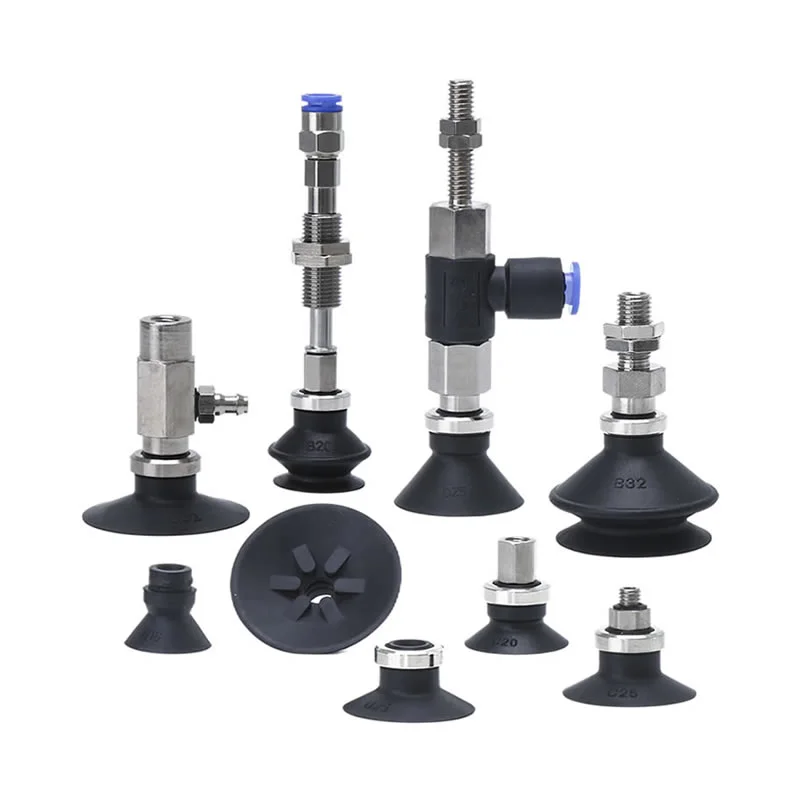

The Basic with Lock Ring Vacuum Suction Cups ZP are high-performance vacuum gripping components designed for stable and secure material handling in industrial automation. Featuring a locking ring structure, they ensure firm installation, enhanced sealing reliability, and long-term operational stability.
Manufactured by a professional China Manufacturer, Supplier, Factory, Commaelec delivers these suction cups with consistent quality, flexible configurations, and strong supply capability for global automation applications.
What are Basic with Lock Ring Vacuum Suction Cups ZP?
Definition & Function
• Vacuum Gripping Solution: Creates a strong seal to lift, move, and position workpieces
• Lock Ring Structure: Ensures secure fixation and prevents loosening during high-frequency operations
• Versatile Handling: Suitable for smooth, flat, or slightly irregular surfaces
• Automation Integration: Ideal for robotic arms, pick-and-place systems, and production lines
Features of Basic with Lock Ring Vacuum Suction Cups ZP
Secure Mounting:
The locking ring design ensures a firm and stable connection between the suction cup and mounting element, preventing loosening during high-speed or repetitive operations, thus improving overall system reliability and safety.
Modular Design:
The modular structure allows easy integration with different adapters, holders, and buffer units, enabling flexible configuration and quick replacement to suit various automation systems.

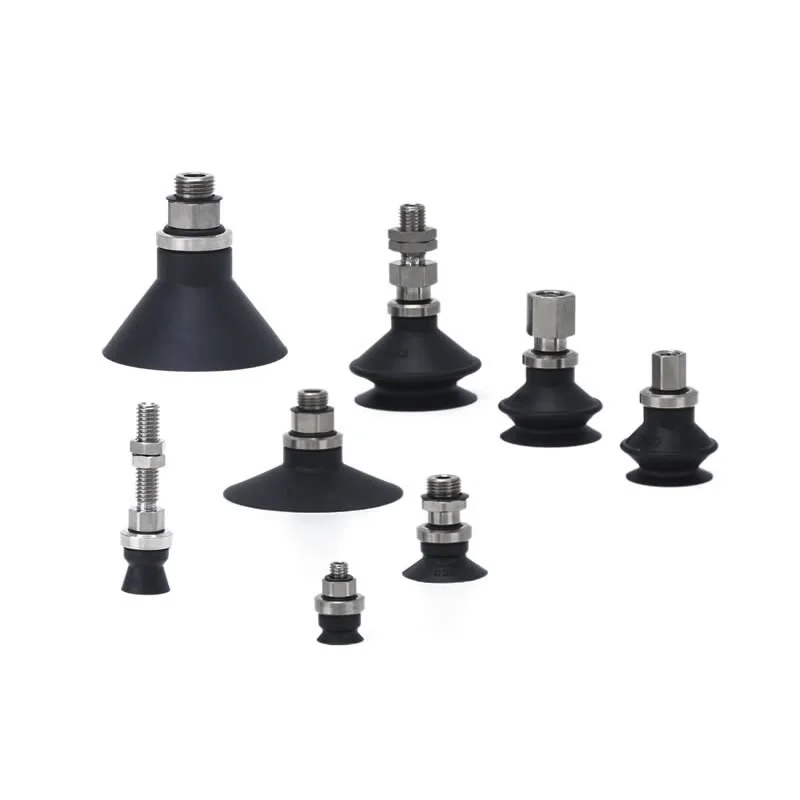

Versatile Pad Shapes:
The Basic with Lock Ring Vacuum Suction Cups ZP is available in multiple shapes to accommodate different surface conditions, ensuring optimal sealing and stable gripping across diverse applications.
Flat / Flat with Ribs:
Flat designs are ideal for smooth surfaces, while ribbed versions enhance sealing performance and reduce deformation, making them suitable for handling glass, metal sheets, and plastics.

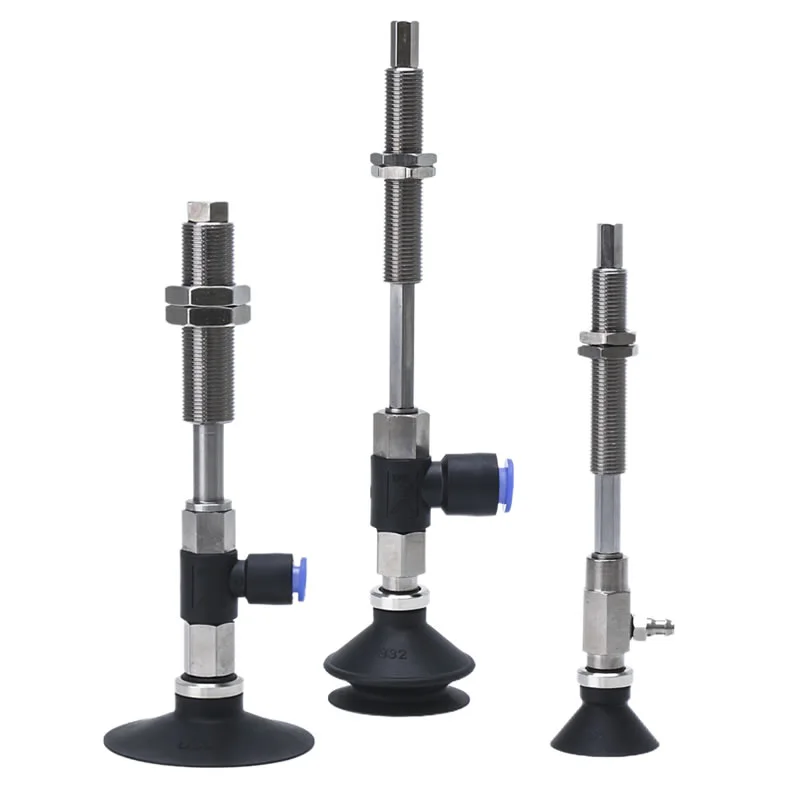

Bellows:
Bellows-type suction cups provide greater flexibility and stroke, allowing compensation for uneven surfaces and height variations, which is especially useful for delicate or irregular workpieces.
Deep:
Deep-type suction cups are designed for handling curved or recessed surfaces, offering improved adaptability and maintaining a secure grip in complex applications.
Material Options:
Available in silicone, polyurethane, NBR, and anti-static materials, these suction cups can be selected based on temperature resistance, wear durability, or industry-specific requirements such as electronics or clean environments.
Wide Range of Sizes:
With diameters ranging from 10mm to 50mm, the series covers a broad range of applications from small precision components to larger workpieces, ensuring flexible selection.
Non-slip Option:
Optional anti-slip surface designs improve friction between the suction cup and the workpiece, reducing the risk of slipping and enhancing handling stability in high-speed operations.

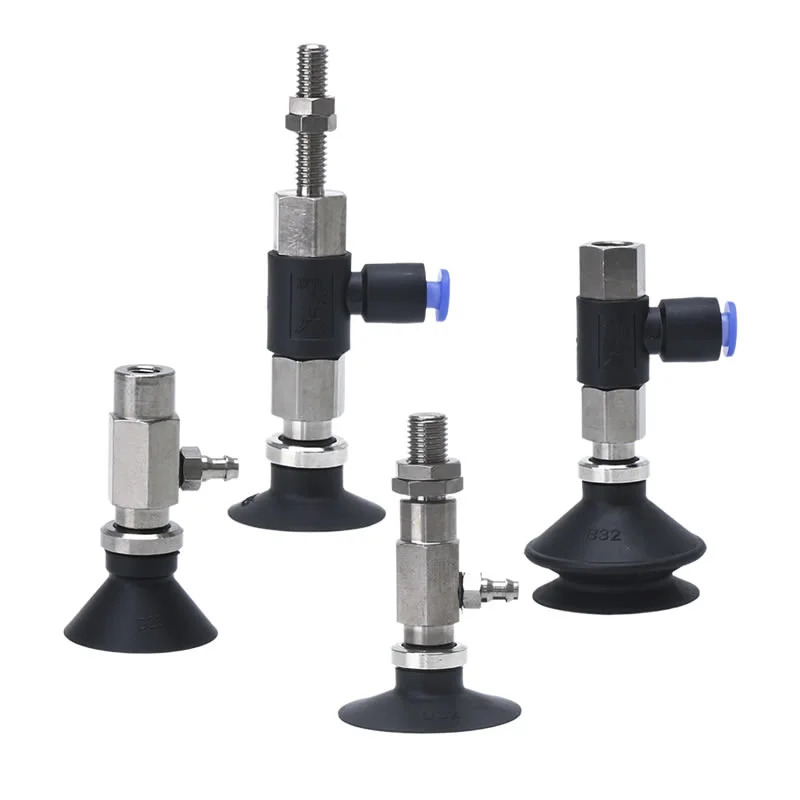

Compatibility:
Designed for seamless integration, these suction cups are compatible with various vacuum generators, ejectors, and mounting systems, supporting both vertical and horizontal vacuum connections for flexible installation.
FAQ
1. What is the advantage of the lock ring design?
The locking ring ensures secure installation, preventing loosening and improving stability during high-speed operations.
2. What materials are available?
Options include silicone, NBR, polyurethane, and anti-static materials for specialized industries.
3. Can the product be customized?
Yes, Commaelec provides full Customized solutions including size, material, structure, and mounting options.
4. What industries are these Basic with Lock Ring Vacuum Suction Cups ZP suitable for?
They are widely used in packaging, electronics, automotive, and general automation industries.
5. How does the buffer improve performance?
The buffer reduces impact and vibration, protecting both the workpiece and equipment while extending service life.
How to Order

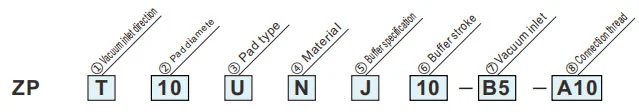

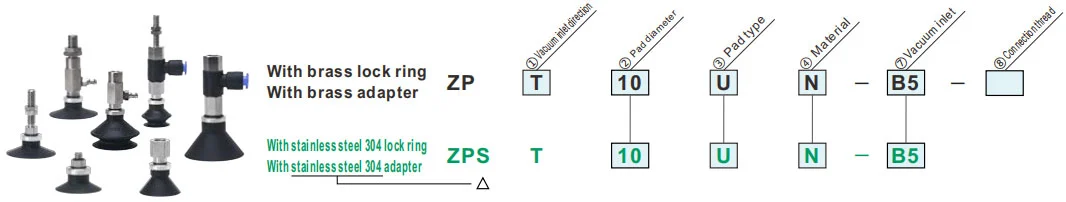

| Lock ring models/dimensions | ||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||
| △Nil/Brass S/Stainless steel | ||||||||||||||||||||||||||
|
③ Pad type
② Pad diameter(mm)
|
10 | 13 | 16 | 20 | 25 | 32 | 40 | 50 | |
| ø10 | ø13 | ø16 | ø20 | ø25 | ø32 | ø40 | ø50 | ||
| U | Flat Type | ● | ● | ● | ● | ● | ● | ● | ● |
| C | Flat Type with Ribs | ● | ● | ● | ● | ● | ● | ● | ● |
| B | Bellows Type | ● | ● | ● | ● | ● | ● | ● | ● |
| D | Deep Type | ● | 一 | ● | 一 | ● | 一 | ● | 一 |

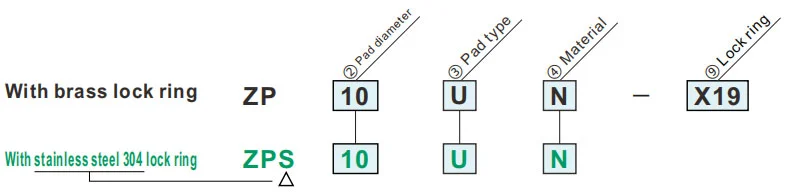

| ⑨Lock ring | |
| Nil | With lockring |
| X19 | Without lock ring |
| ④Material | |
| N | NBR |
| S | Silicone rubber |
| U | Urethane rubber |
| F | FKM |
| GN | Conductive NBR |
| GS | Condutieslionerube |
Green symbolis customized models.
| ④Material | |
| N | NBR |
| S | Silicone rubber |
| U | Urethane rubber |
| F | FKM |
| GN | Conductive NBR |
| GS | Canducie slicnerube |
Green symbol is oustomized madels.
|
③ Pad type
② Pad diameter(mm)
|
10 | 13 | 16 | 20 | 25 | 32 | 40 | 50 | ||||||
| ø10 | ø13 | ø16 | ø20 | ø25 | ø32 | ø40 | ø50 | |||||||
| U | Flat Type | ● | ● | ● | ● | ● | ● | ● | ● | |||||
| C | Flat Type with Ribs | ● | ● | ● | ● | ● | ● | ● | ● | |||||
| B | Bellows Type | ● | ● | ● | ● | ● | ● | ● | ● | |||||
| ①Vacuum inlet direction | D | Deep Type | ● | - | ● | - | ● | - | ● | - | ||||
| T | Vertical |
|
⑦vacuuminlet | Male thread | AS5 | M5×0.8 | ● | ● | - | |||||
| AS6 | M6x1.0 | ● | ● | ● | ||||||||||
| AG1 | G1/8 | ● | ● | ● | ||||||||||
| AG2 | G1/4 | - | - | ● | ||||||||||
|
A5 | M5×0.8 | ● | - | - | |||||||||
| A6 | M6×1.0 | ● | ● | ● | ||||||||||
| A8 | M8x1.0 | - | ● | ● | ||||||||||
|
Female thread | B5 | M5×0.8 | ● | ●- | - | ||||||||
| B6 | M6×1.0 | ● | ● | ● | ||||||||||
| B8 | M8×125 | ● | ● | |||||||||||
| B01 | Rc1/8 | ● | ● | ● | ||||||||||
| BG01 | G1/8 | ● | ● | ● | ||||||||||
| BG2 | G1/4 | - | - | ● | ||||||||||
| R | Lateral |

|
One-touch fitting | 04 | ø4 | ● | ● | - | ||||||
| 06 | ø6 | ● | ● | ● | ||||||||||
| 08 | ø8 | - | ● | ● | ||||||||||
| ⑧Connectionthread | Male thread | A5 | M5×0.8 | ● | - | - | ||||||||
| A6 | M6×1.0 | ● | ● | ● | ||||||||||
| A8 | M8×1.0 | - | ● | ● | ||||||||||
| Female thread | B5 | M5×0.8 | ● | ● | - | |||||||||
| B6 | M6×1.0 | ● | ● | ● | ||||||||||
| B8 | MB×125 | - | ● | ● | ||||||||||
| Y |

|
⑦ Vacuum inlet | B5 | M5×0.8 | ● | ● | ● | |||||||
| Barb fitting | U4 | For ø4 soft tubing | ● | ● | - | |||||||||
| N4 | For ø4 nylon tubing | ● | ● | - | ||||||||||
| U6 | For ø6 soft tubing | ● | ● | ● | ||||||||||
| N6 | For ø6 nylon tubing | ● | ● | - | ||||||||||
| ⑧onnectionthread | Male thread | A5 | M5×0.8 | ● | - | - | ||||||||
| A6 | M6×1.0 | ● | ● | ● | ||||||||||
| A8 | M8×1.0 | - | ● | ● | ||||||||||
| Female thread | B5 | M5×0.8 | ● | ● | - | |||||||||
| B6 | M6×1.0 | ● | ● | ● | ||||||||||
| B8 | M8×1.25 | - | ● | ● | ||||||||||
| How to Replace the Pad |
|
Since pads are essentially rubber, deterioration is unavoidable. The rate of deterioration depends upon factors such as conditions of use, environment and temperature. Regular maintenance should be performed. If any damage, splitting, cracking or abrasion has occurred in a pad which appears to be harmful, replace it immediately. Also, take care not to damage the outside surface of the pad.
1.Pull the lock ring upward,and,after lifting it up to the adapter,remove the old pad bypulling it downward.
|
| ④Material | |
| N | NBR |
| S | Silioone rubber |
| U | Urethanerubber |
| F | FKM |
| GN | Conductive NBR |
| GS | Conducivesicnerubbe |
Green symbolis oustomizedmodels.
|
③ Pad type
② Pad diameter(mm)
|
10 | 13 | 16 | 20 | 25 | 32 | 40 | 50 | ||||
| ø10 | ø13 | ø16 | ø20 | ø25 | ø32 | ø40 | ø50 | |||||
| U | Flat Type | ● | ● | ● | ● | ● | ● | ● | ● | |||
| C | Flat Type with Ribs | ● | ● | ● | ● | ● | ● | ● | ● | |||
| B | BellowsType | ● | ● | ● | ● | ● | ● | ● | ● | |||
| D | Deep Type | ● | - | ● | - | ● | - | ● | - | |||
| ⑥Bufferstroke | 6 | 6mm | ● | - | - | |||||||
| 10 | 10 mm | ● | ● | ● | ||||||||
| 15 | 15 mm | ● | - | - | ||||||||
| 20 | 20 mm | ● | ● | ● | ||||||||
| 25 | 25 mm | ● | - | - | ||||||||
| 30 | 30 mm | ● | ● | ● | ||||||||
| 40 | 40 mm | ● | ● | - | ||||||||
| 50 | 50 mm | ● | ● | ● | ||||||||
| ⑦vacuuminlet | Female thread | B5 | M5×0.8 | ● | ● | ● | ||||||
| B01 | Rc1/8 | - | - | ● | ||||||||
| One-touch fitting | 04 | ø4 | ● | ● | - | |||||||
| 06 | ø6 | ● | ● | ● | ||||||||
| 08 | ø8 | - | - | ● | ||||||||
| Barb fitting | U4 | For ø4 soft tubing | ● | - | - | |||||||
| N4 | For ø4 nylon tubing | ● | - | - | ||||||||
| U6 | For ø6 soft tubing | ● | ● | ● | ||||||||
| N6 | For ø6 nylon tubing | ● | ● | ● | ||||||||
| One-touch fitting | 04 | ø4 | ● | ● | - | |||||||
| 06 | ø6 | ● | ● | ● | ||||||||
| 08 | ø8 | - | ● | ● | ||||||||
| Female thread | B5 | M5×0.8 | ● | ● | ● | |||||||
| Barb fitting | U4 | For ø4 soft tubing | ● | ● | - | |||||||
| N4 | For ø4 nylon tubing | ● | ● | - | ||||||||
| U6 | For ø6 soft tubing | ● | ● | ● | ||||||||
| N6 | For ø6 nylon tubing | ● | ● | ● | ||||||||
| ⑧Connection thread | Male thread | A8 | M8×1 | ● | - | - | ||||||
| A10 | M10×1 | ● | ● | - | ||||||||
| A14 | M14×1 | - | ● | ● | ||||||||
| ⑤Buffer specification | |
| J | Rotating |
| K | Non-rotating |
| ① Vacuum inlet direction | ||
| T | Vertical |
|
| R | Lateral |
|
| Y |
|
|
Spring reactiveforce
| Connection thread | M8×1 | M10×1 | M14×1 | |
| Tightening torque [N ·m] | 1.5~2.0 | 2.5~3.5 | 6.5~7.5 | |
| Spring reactieforce[N] | At0 stroke | 0.8 | 1.0 | 2.0 |
| At full stroke | 1.2 | 3.0 | 5.0 | |
Specifications
| Lock ring/ Pad type | Pad diameter/dimensions | Application | ||||||||||||||||
| 2×4 | 3.5×7 | 4×10 | ø2 | ø4 | ø6 | ø8 | ø10 | ø13 | ø16 | ø20 | ø25 | ø32 | ø40 | ø50 | ||||
| Without Lock Ring |
Flat Type (U) |
|
— | — | — | ● | ● | ● | ● | — | — | — | — | — | — | — | — | For workpieces with flat and undeformed surfaces |
|
Oval Type (U) |
|
● | ● | ● | — | — | — | — | — | — | — | — | — | — | — | — | For work pieces with limitations on the adsorptionsurface | |
|
Thin Flat Type (UT) |
|
— | — | — | — | — | — | — | ● | ● | ● | — | — | — | — | — | For soft workpieces such as thin sheets or vinyl . Wrinkling or deformation during adsorption can be reduced. | |
|
Thin Flat Type with Ribs (CT) |
|
— | — | — | — | — | — | — | ● | ● | ● | — | — | — | — | — |
For soft workpieces such as thin sheets or vinyl . Workpieces can be removed easily thanks to the ribs |
|
|
Bellows Type (B) |
|
— | — | — | — | — | ● | ● | — | — | — | — | — | — | — | — | For use where there is no space for a buf- fer or for workpieces with inclined surfaces | |
| With Lock Ring |
Flat Type (U) |
|
— | — | — | — | — | — | — | ● | ● | ● | ● | ● | ● | ● | ● | For workpieces with flat and undeformed surfaces |
|
Flat Type with Ribs (C) |
|
— | — | — | — | — | — | — | ● | ● | ● | ● | ● | ● | ● | ● | For workpieces which are easily deformed. Workpieces can be removed easily thanks to the ribs | |
|
Bellows Type (B) |
|
— | — | — | — | — | — | — | ● | ● | ● | ● | ● | ● | ● | ● | For use where there is no space for a buf- fer or for workpieces with inclined surfaces | |
|
Deep Type (D) |
|
— | — | — | — | — | — | — | ● | — | ● | — | ● | — | ● | — | For workpieces with curved surfaces or for spherical workpieces | |
Pad Material and Characteristics
⚪:Little or no influence △:Can be used depending on conditions X:Not suitable
|
Material
Characteristics
|
Symbol |
Durometer HS (±5°) |
Color of rubber |
Operating temperature range (°C) |
Oil resistance gasoline |
Oil resistance benzol |
Base resistance |
Acid resistance |
Weatherability |
Ozone resistance |
Abrasion resistance |
Waterproof |
Solvent resistance (Benzene, toluene) |
Application |
| NBR | N | 50 | Black | 0 ~ 120 | ⚪ | X | △ | △ | X | X | ⚪ | △ | X | Transfer of general work, Corrugated board, Veneer plate, Iron plate and others |
| Silicone rubber | S | 45 ~ 50 | White | -30 ~ 200 | X | X | △ | X | ⚪ | ⚪ | X | △ | X | Semiconductor, Removing from die-casting, Thin work, Food processor |
| Urethane rubber | U | 50 ~ 60 | Brown | 0 ~ 60 | ⚪ | X | X | X | △ | ⚪ | ⚪ | X | X | Corrugated board, Iron plate, Veneer plate |
| FKM | F | 60 | Black | 0 ~ 250 | ⚪ | ⚪ | X | ⚪ | ⚪ | ⚪ | △ | ⚪ | ⚪ | Chemical work |
| Conductive NBR | GN | 50 ~ 65 | 0 ~ 100 | △ | X | △ | X | △ | X | △ | △ | X | General work of semiconductor (Static electricity resistance) | |
| Conductive silicone rubbe | GS | 50 ~ 60 | -10 ~ 200 | X | X | △ | X | ⚪ | ⚪ | X | △ | X | Semiconductor (Static electricity) |
The above table covers only general characteristics of subject rubber materials. Blue symbol is customized models .
Application outline of pneumatic components (vacuum suction cup) in various industrial fields
I. Core strengths
II. Extraction of applications by industry
A. Medicine and medical industry
A.1：Core requirements: Clean and pollution-free (FDA/GMP compliant), gentle and non-damaging, and cross-contamination prevention
A.2 Key scenarios:
1. Pharmaceutical packaging: drug bottle / pharmaceutical plate / infusion bag pickup (food grade silicone suction cup, no particle shedding)
2. Medical device assembly: surgical instruments/medical catheters/pieces of prosthesis handling (adjustable negative pressure, deformation protection)
3. Biological laboratory: petri dish/centrifuge tube/reagent card transfer (chemical resistant, sterile compatible)
B. Electronics and semiconductor industry
B.1 Core requirements: anti-static (10⁶-10¹¹Ω), precision positioning (error ≤0.01mm), scratch resistance
B.2 Key scenarios:
1. Chip/Semiconductor: wafer handling, chip packaging (porous ceramic/anti-static silicone suction cup, uniform negative pressure to prevent rupture)
2. PCB/Components: Flexible PCB, micro components (0402 resistors) surface-mounted (thin silicone/gel/micro suction cups to prevent wrinkling/tearing)
3. Display: LCD/OLED panel, touch glass grab (high transparent material, no stains and scratches)
C. Automobile and auto parts industry
C.1 Core requirements: large suction (single suction disk ≥500N), multi-specification adaptation (metal/plastic/glass), non-slip
C.2 Key scenarios:
4. Body manufacturing: steel plate / door frame handling welding (large diameter rubber / multi-suction cup array, anti-slip texture)
5. Glass / Interior: Windscreen installation, leather seat surface transfer (temperature resistant silicone / sponge suction cups, deformation protection)
6. Parts: engine cylinder body / gearbox housing grab (vacuum + mechanical lock, anti-fall)
D. Food and packaging industry
D.1 Core requirements: Food grade material (FDA certified), easy to clean, crush resistant
D.2 Key scenarios:
1. Food handling: baked goods / fresh meat / fruit sorting (low suction sponge suction cup, odorless and easy to wash)
2. Packaging automation: packaging bag opening, sterile carton molding (static elimination/ multi-point suction, suitable for thin/hard packaging)
E. Logistics and warehousing industry
E.1 Core requirements: efficient adaptation (multiple specifications of goods), stable pressure, anti-fall
E.2 Key scenarios:
1. Carton handling: e-commerce carton sorting (adjustable suction array, vacuum pressure)
2. Plate/roll: Wood board/plastic film roll transfer (long strip/annular suction cup, uniform adsorption to prevent offset)
F. New energy and special industries
F.1 New energy (lithium battery/pv):
1. Lithium battery plate (anti-static porous suction cup, anti-dust), photovoltaic glass (large suction silicone suction cup, no scratch)
F.2 Printing and paper
1. Paper/printed matter capture (absorbent paper material, slight negative pressure to prevent tearing and ink contamination)
III. Summary of core adaptation logic
| Workpiece characteristics | Pipette adaptation programme | Corresponding industry scenarios |
| Thin / Fragile / Precision | Silicone/ceramic material, micro negative pressure, micro suction nozzle | Electronic semiconductors, pharmaceuticals |
| Heavy items / Large size | Rubber material, large diameter suction cup, multi-suction cup array | Automobiles, logistics panels |
| Health/Prevention of pollution | Food/medical grade silicone, easy to clean structure | Medicine, food |
| Soft / irregular surfaces | Sponge material, deformable suction cup | Car interiors, food |
| Antistatic requirements | Antistatic silicone, ion wind assisted | electronic semi-conductor |
Installation Manual
PDF Download
Warning +Caution （Read Before Use）
PDF Download
Hot Tags: Basic with Lock Ring Vacuum Suction Cups ZP, China, Manufacturer, Supplier, Factory
Send Inquiry
Contact Info
-
Address
Xiaruan Village Baishi Town Yueqing City Zhejiang Province China
-
Tel
-
E-mail
For inquiries about vacuum suction cups, vacuum generators, pneumatic components accessories or price list, please leave your email to us and we will be in touch within 24 hours.
