Vacuum Saving Valve ZP2Vs

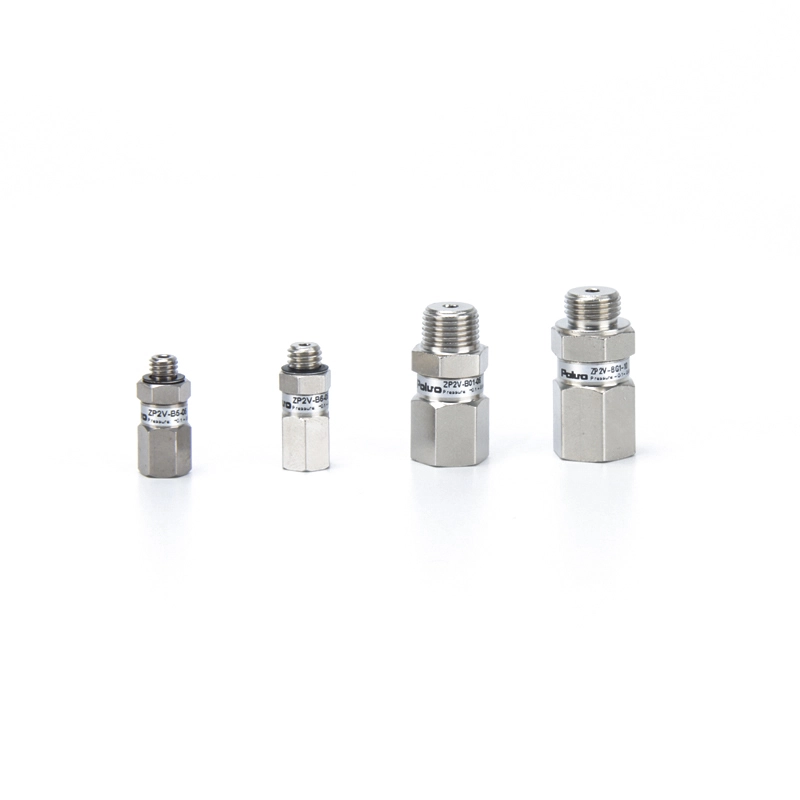

ZP2VS Series Vacuum Saving Valves
Description
How to Order
Specifications / Material
Applications
Resource
Comma ZP2VS stainless steel vacuum logic valve — buy wholesale from the manufacturer at the best price. This compact M5 vacuum sequence valve maintains system vacuum when one generator feeds multiple suction cups, so a single un-gripped cup can no longer collapse the vacuum level on the others. All-stainless SUS304 construction makes it ideal for zinc-free and copper-free zones in food, pharmaceutical, electronics and cleanroom automation. Three fixed orifice sizes (0.3 / 0.5 / 0.7 mm), a built-in filter, and four porting variants cover suction cups up to Ø125 mm — order online or request a quote today.
First-100-character keyword layout (for reference)
Comma ZP2VS stainless steel vacuum logic valve — buy wholesale from the manufacturer at the best
- Brand word: Comma
- Product keywords: ZP2VS, stainless steel, vacuum logic valve
- Purchase-behavior words: buy, wholesale, manufacturer, price

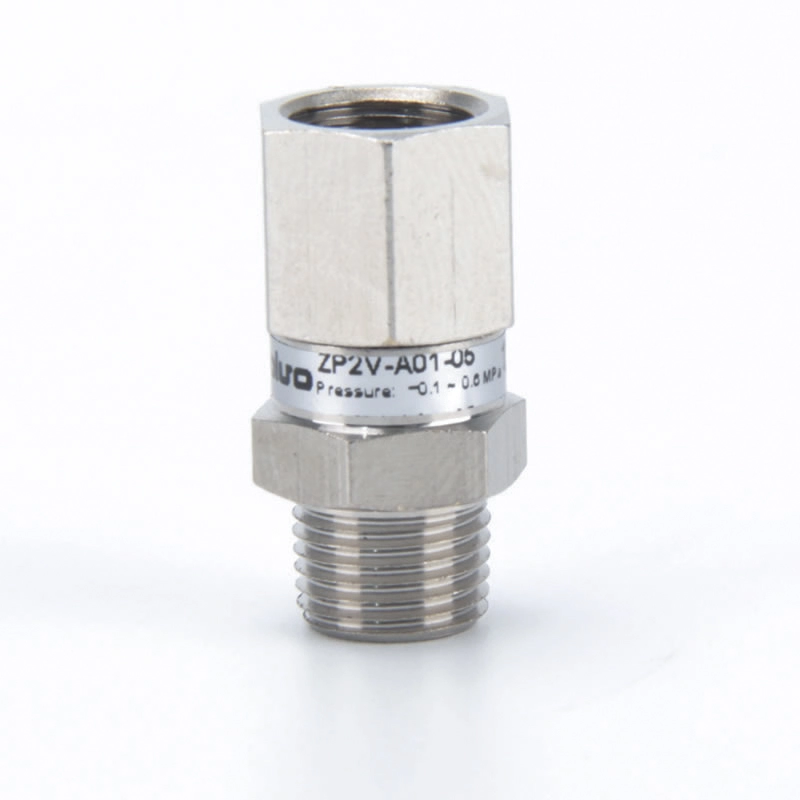

The Vacuum Saving Valve ZP2Vs is a stainless steel vacuum logic valve (vacuum limiting / sequence valve) designed for multi-cup vacuum handling systems where one vacuum generator serves several suction cups.
In conventional systems, a cup that fails to pick up a workpiece keeps drawing air and drags down the vacuum pressure of the entire system — weakening grip on the parts that are held. The ZP2VS solves this automatically: while a cup is empty, airflow pushes the valve element closed and suction passes only through a fixed orifice; once the cup seals on a workpiece, the reduced suction flow lets the spring open the valve element and full suction flow resumes. No control wiring, no switching work, no manual adjustment when workpieces change.
Working Principle
1. No workpiece (valve closed): Airflow through the empty cup pushes the resin valve element closed. Suction flow is limited to the fixed orifice (0.3 / 0.5 / 0.7 mm), so the cup draws only a small, defined airflow and system vacuum is preserved.
1. Workpiece held (valve open): Suction flow drops sharply when the cup seals; the spring force overcomes the airflow force and opens the valve element, releasing full suction flow between element and housing for maximum holding force.
1. Blow-off release: Supplying compressed air through the same port blows the workpiece off quickly and positively.
| # | Advantage | Customer Benefit |
| 1 | All-stainless SUS304 body and spring | Approved for zinc-free / copper-free applications (food, pharma, electronics, battery, cleanroom) |
| 2 | Prevents vacuum drop on empty cups | One vacuum generator safely serves multiple cups; reliable gripping even with missing or uneven workpieces |
| 3 | Zero switching work when workpieces change | Fully passive, self-regulating operation — no re-programming or manual changeover required |
| 4 | Built-in filter (40 μm) | Protects the valve element and orifice from contamination; longer maintenance intervals |
| 5 | Compact M5 × 0.8 interface, hex 8 mm | Installs directly on cup fittings or manifold blocks in tight robotic end-of-arm tooling |
| 6 | Blow-off capable | Supports positive-pressure air blow for fast, clean workpiece release |
| 7 | Three orifice sizes (0.3 / 0.5 / 0.7 mm) | Fine matching to cup size and vacuum generator capacity |
| 8 | Wide operating envelope | −100 ~ +0.7 MPa vacuum side pressure, 5–60 °C (no freezing) fluid and ambient temperature |
How to Order
- The overall material is 304 stainless steel, which can be used in situations where zinc and copper are prohibited.
- Can restrict the reduction of vacuum pressure even when there is no workpiece.
- A switching operation is not required when changing workpieces.
- Built-in filter (40 μm).

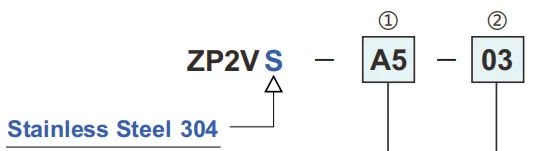

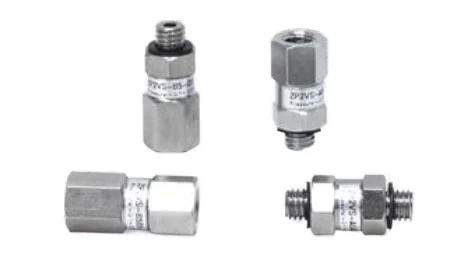

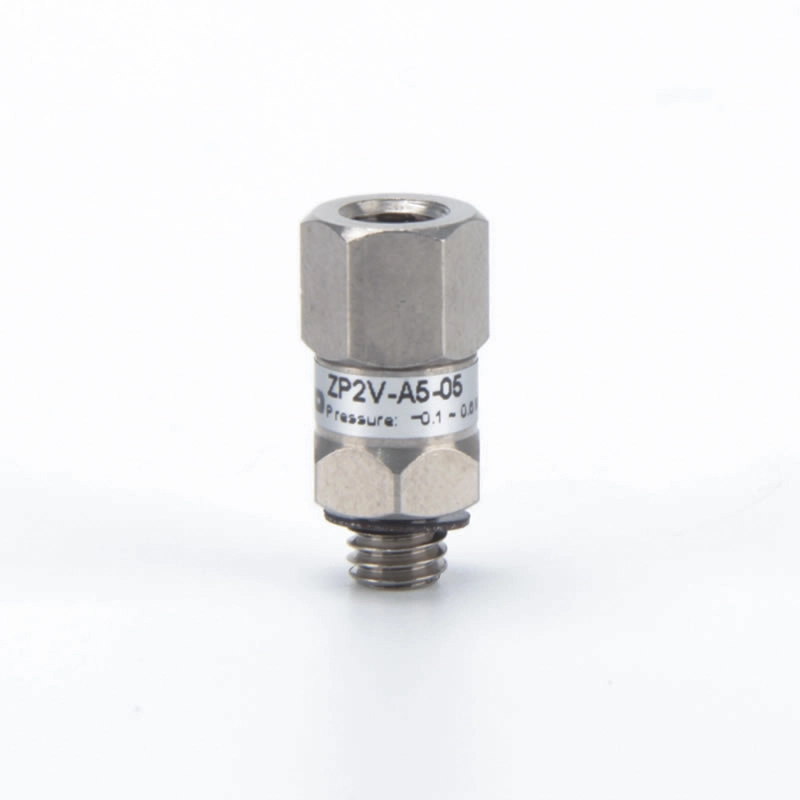

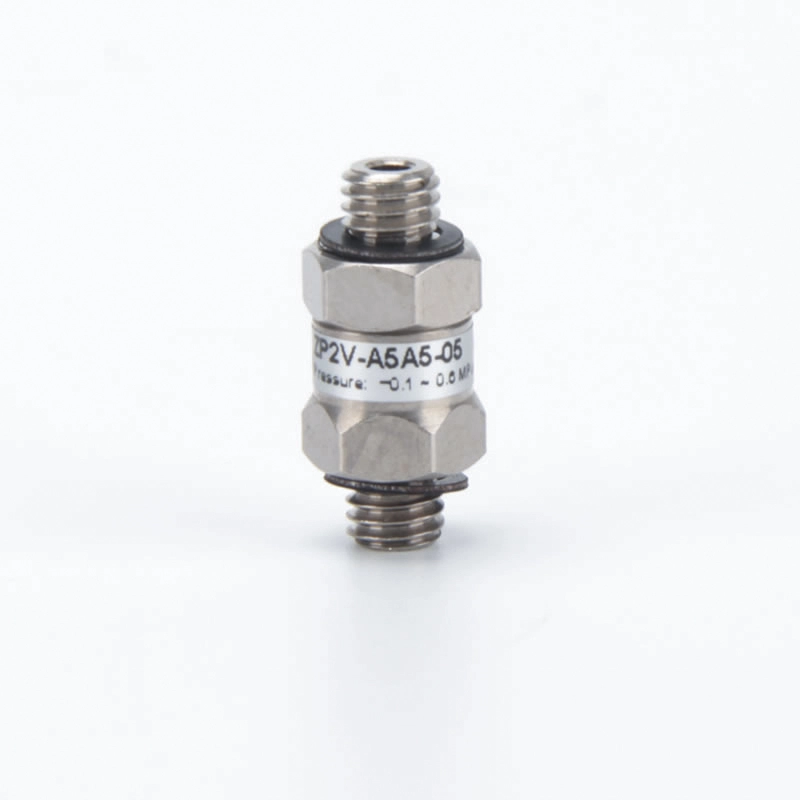

| ① Connection Thread | |||
| Symbol | Thread | Vacuum Generator Side | Pad Side |
| A5 | M5×0.8 | Female thread | Male thread |
| A5A5 | M5×0.8 | Male thread | Male thread |
| B5 | M5×0.8 | Male thread | Female thread |
| B5B5 | M5×0.8 | Female thread | Female thread |
| ② Fixed Orifice Size (mm) | |
| 03 | ø0.3 |
| 05 | ø0.5 |
| 07 | ø0.7 |
Specifications
| Fixed orifice size (mm) | 0.3 | 0.5 | 0.7 |
| Fluid | Air | ||
| Max. operating pressure range (MPa) | 0 ~ 0.7 | ||
| Max. operating vacuum pressure range (kPa) | 0 ~ -100 | ||
| Ambient and fluid temperatures (℃) | 5 ~ 60 (No freezing) | ||
| Element nominal filtration rating (μm) | 40 | ||
| Min. operating flow rate (L/min) | 3 | 5 | 8 |
| Applicable pad diameter (mm) | ≤25 | ||
Construction
| No. | Description | Material |
| 1 | Body A | SUS304 |
| 2 | Body B | SUS304 |
| 3 | Valve | Resin |
| 4 | Spring | SUS304 |
| 5 | Element | SUS304 |
| 6 | Gasket | Resin |
Typical Applications

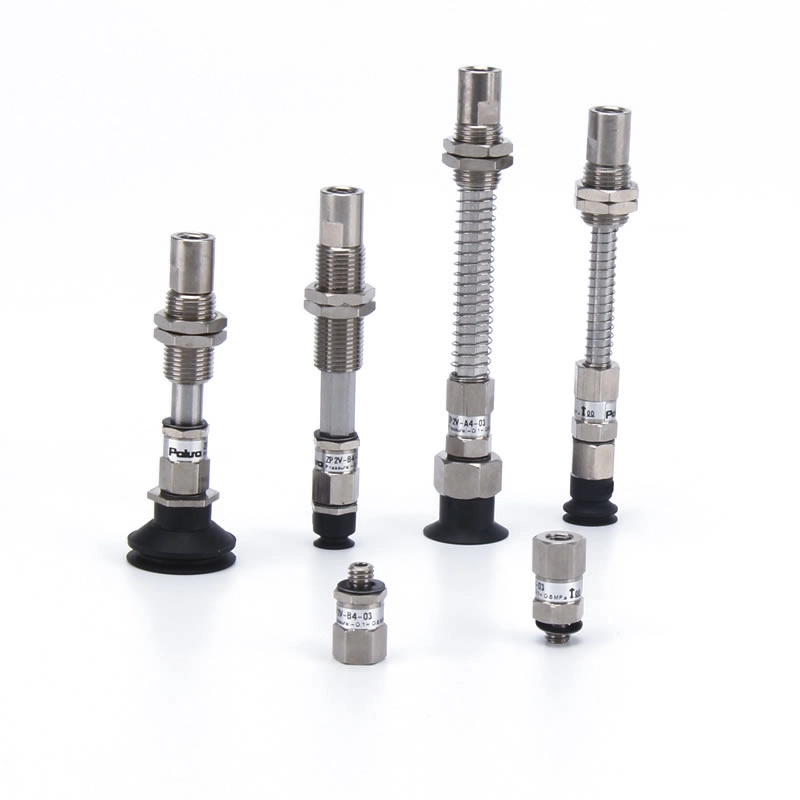

• Robotic pick-and-place with multi-cup grippers (sheet, glass, PCB, food trays)
• Handling lines with missing or variable workpieces — cups that miss a part no longer spoil the vacuum for the rest
• Zinc-free / copper-free regulated environments: food & beverage packaging, pharmaceutical filling, semiconductor and battery manufacturing
• Manifold-mounted vacuum distribution on end-of-arm tooling
Warning +Caution
