Vacuum suction is a core solution for "flexible grasping" in industrial automation with four core advantages: non-damaging grasping, adaptability to multi-material/irregular workpieces, clean and environmental protection, and flexible operation. It can be adapted to different industry characteristics of workpieces (thin/thick, precision/coarse, sanitary/standard).
Short-type Vacuum Suction Cups ZP2-MU

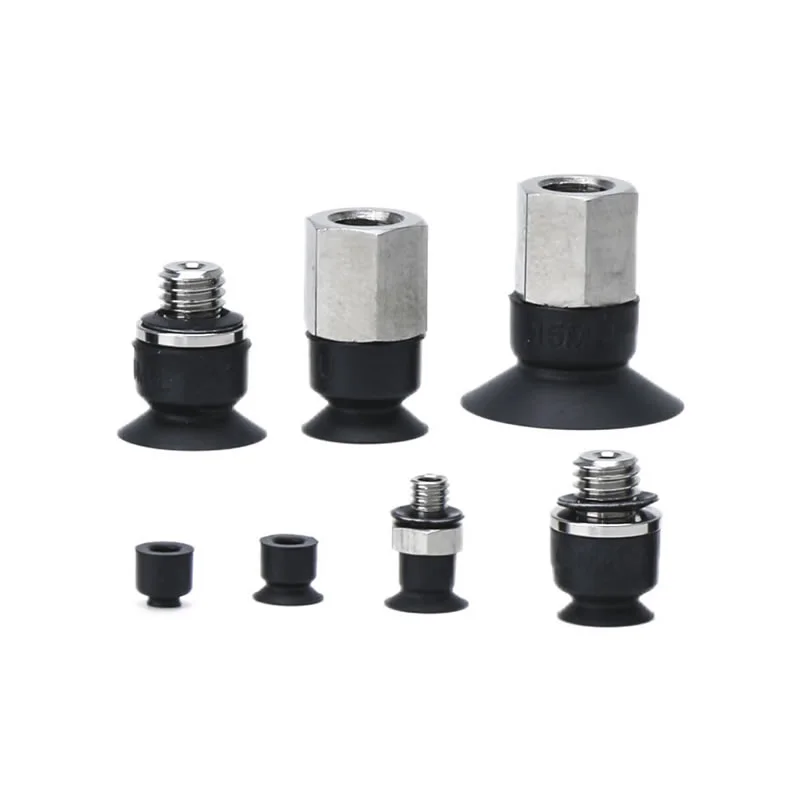

As a leading China manufacturer, our factory offers Customized Short-type Vacuum Suction Cups ZP2-MU (ø2-15mm). Featuring a low profile for tight spaces and anti-static silicone. Utilizing imported silicone, NBR, and anti-static materials, combined with all-stainless steel components, this product is suitable for use in the lithium battery and semiconductor industries.
Click and Start the Selection
》Return to Product Information
Short-type Vacuum Suction Cups ZP2-EU
ZP2 Series Short-type Vacuum Pad Unit
ZP2-T Series With Adapter Short-type Vacuum Pad
Description
How to Order
Specifications / Material
Applications
Resource

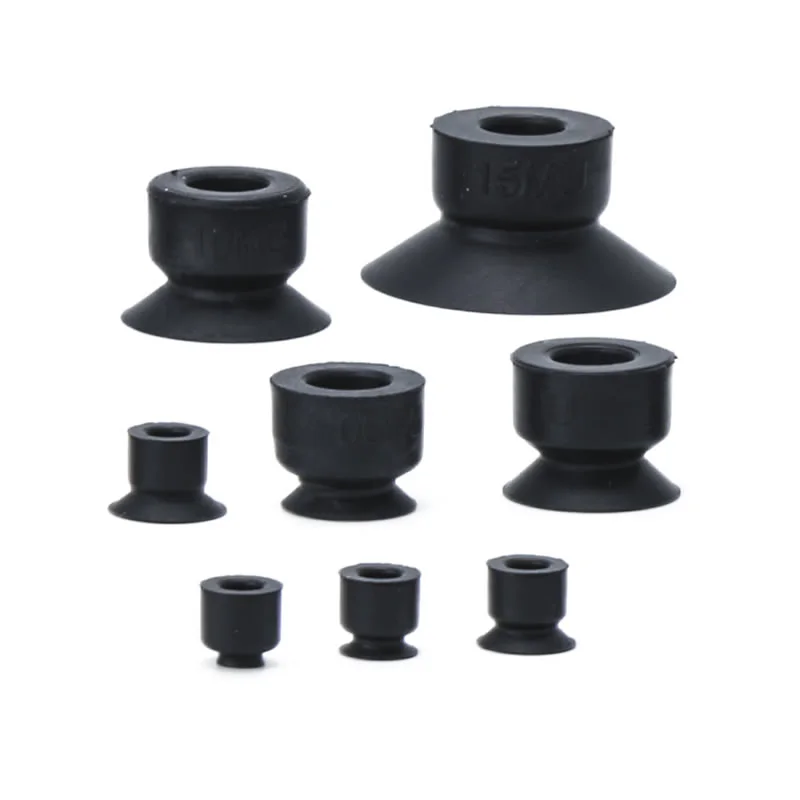

Short-type Vacuum Suction Cups ZP2-MU are designed with a compact structure and provide stable, reliable adsorption.
Product Features:
This low-profile suction cup is ideal for installations with limited space. Its flat contact surface ensures close fitting to the workpiece, delivering consistent suction while minimizing deformation—making it well-suited for precision handling tasks. Selected models offer anti-static properties, meeting the requirements of sensitive environments such as electronics manufacturing.
Specifications:
Available in a wide range of small diameters, including φ2, φ3.5, φ4, φ5, φ6, φ8, φ10, and φ15, suitable for handling small and lightweight components.
Materials:
Options include NBR (nitrile rubber), imported silicone, and anti-static silicone, allowing flexible selection based on temperature, wear resistance, and electrostatic protection needs.
Connection Options:

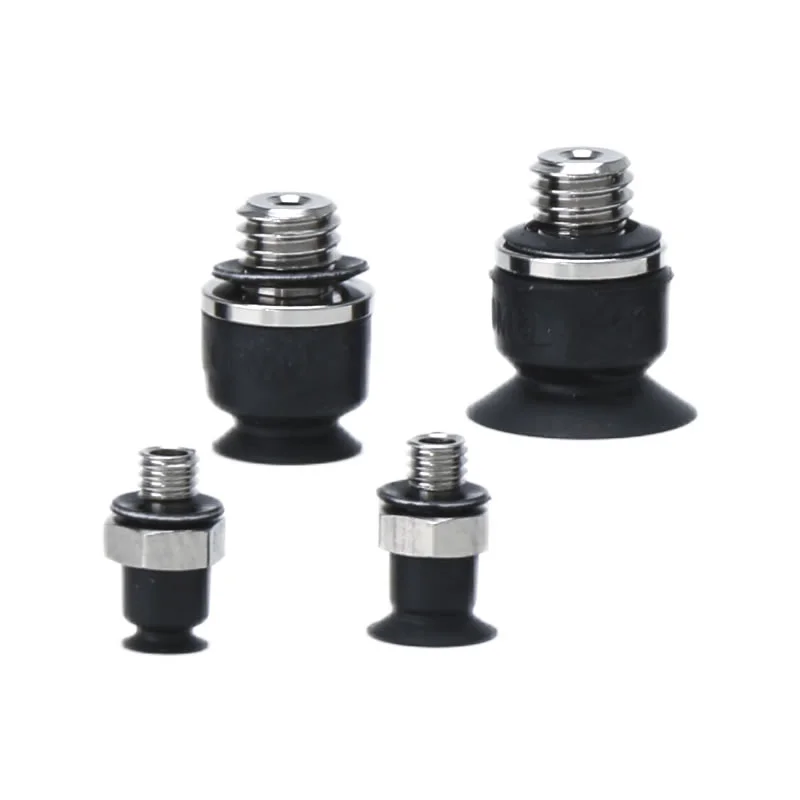

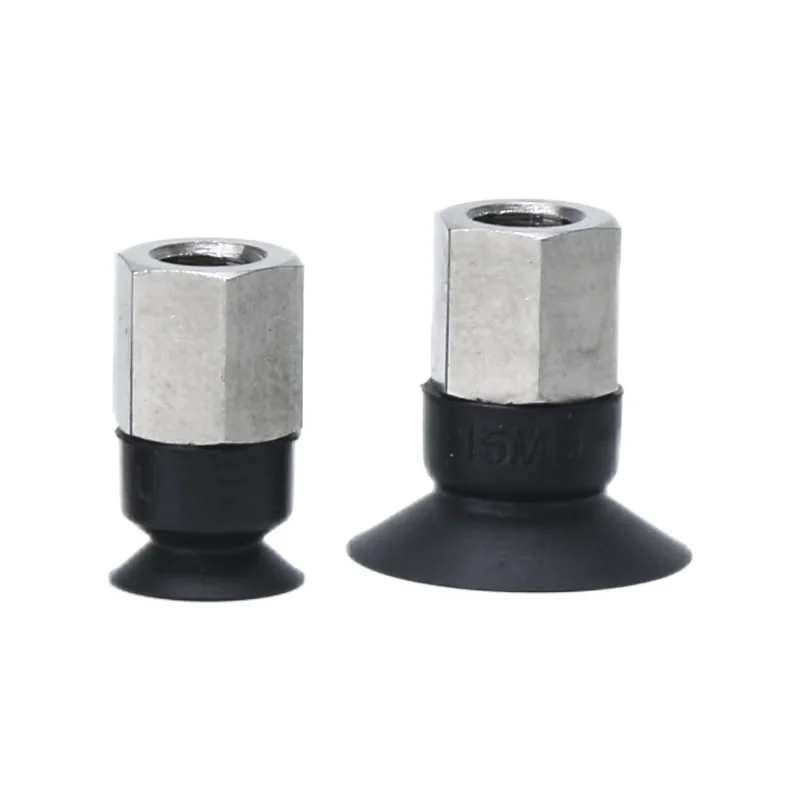

The Short-type Vacuum Suction Cups ZP2-MU support multiple mounting configurations, including external threads (A3) and internal threads (B5), ensuring easy integration into a wide range of equipment systems.
FAQ
What is the "MU" type in ZP2?
The "MU" type refers to a mini, ultra-compact (micro) design within the ZP2 series.
Very small diameters (φ2–φ15) for precision handling
Low-profile structure for tight installation spaces
Optimized for lightweight, small-sized workpieces
Commaelec manufactures Short-type Vacuum Suction Cups ZP2-MU with stable dimensional accuracy, ensuring consistent performance in high-precision systems.
What are the key benefits of ZP2-MU?
Compact size: ideal for dense layouts and limited space
Stable adsorption: flat design ensures reliable sealing on small parts
Precision handling: minimizes deformation during pick-and-place
Material flexibility: NBR, silicone, and anti-static options available
High consistency: Commaelec’s controlled production ensures uniform quality in bulk use
What are the applications?
Electronics industry: chips, small components, PCB handling (anti-static options available)
Precision assembly lines: small plastic or metal parts
Packaging automation: lightweight items and fast cycle operations
Micro-component handling: where space and accuracy are critical

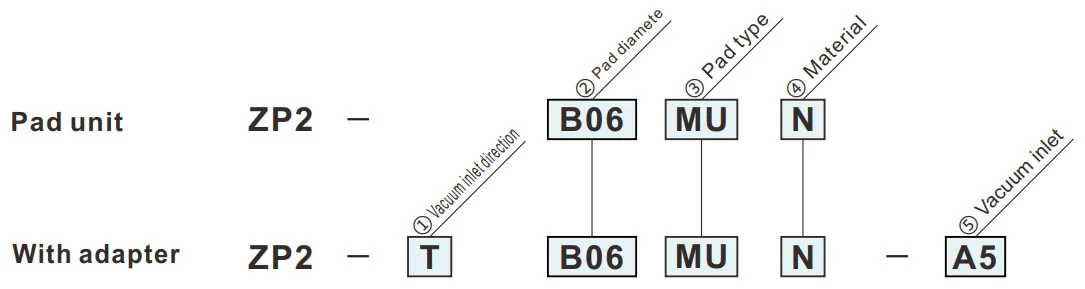

How to Order
- Space-saving in the height direction.
| ①Vacuum inlet direction | |
| T | Vertical |
| ③Pad type | |
| MU | Flat type |
|
⑤ Vacuum inlet
② Pad diameter(mm)
|
B02 | B035 | B04 | B05 | B06 | B08 | B10 | B15 | |
| ø2 | ø3.5 | ø4 | ø5 | ø6 | ø8 | ø10 | ø15 | ||
| A3 | M3x0.5 (Male) | ● | ● | ● | ● | — | — | — | — |
| H5 | M5x0.8 (Male) | — | — | — | — | ● | ● | ● | ● |
| B5 | M5x0.8 (Female) | — | — | — | — | ● | ● | ● | ● |
| ④Material | |
| N | NBR |
| S | Silicone rubber |
| U | Urethane rubber |
| F | FKM |
| GN | Conductive NBR |
| GS | Conductive silicone rubber |
Green symbol is customized models.
Dimensions(mm)
Green symbol is customized models.
MU
Flat type
| Model | øA | øB | øC | D | øE | øF | øG | H | Y | |||
|
② Pad dia. |
③ Pad type |
④ Pad Materia |
||||||||||
| ZP2 | B02 | MU |
N S U F GN GS |
2 | 2.4 | 4 | 4 | 1 | 3 | 2 | 2.5 | 0.5 |
| B035 | 3.5 | 3.8 | ||||||||||
| B04 | 4 | 4.8 | 1.4 | 0.8 | ||||||||
| B05 | 5 | 5.8 | ||||||||||
| B06 | 6 | 6.7 | 7.5 | 6.5 | 2 | 6 | 4 | 4 | 0.8 | |||
| B08 | 8 | 8.8 | 8 | 7 | 1.2 | |||||||
| B10 | 10 | 10.6 | ||||||||||
| B15 | 15 | 15.6 | 9 | 8 | 2 | |||||||
Model for refer: ZP2-B035MUN

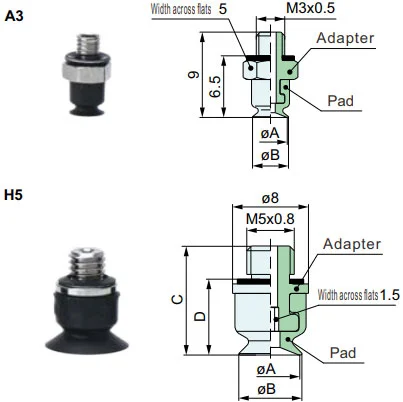

Adapter Mounting Dimensions
Applicable pad: B02MU/B035MU/B04MU/B05MU
Applicable pad: B06MU/B08MU/B10MU/B15MU
ZP2-T
Vertical
A3,H5
| Model | øA | øB | C | D | Adapter | |||||
|
① Vacuum inlet direction |
② Pad dia. |
③ Pad type |
④ Pad Material |
⑤ Vacuum inlet |
||||||
| ZP2 | T | B02 | MU |
N S U F GN GS |
A3 | 2 | 2.4 | — | — | ZP2A-M01P |
| B035 | 3.5 | 3.8 | ||||||||
| B04 | 4 | 4.8 | ||||||||
| B05 | 5 | 5.8 | ||||||||
| B06 | H5 | 6 | 6.7 | 11.5 | 8 | ZP2A-M02P | ||||
| B08 | 8 | 8.8 | 12 | 8.5 | ||||||
| B10 | 10 | 10.6 | ||||||||
| B15 | 15 | 15.6 | 13 | 9.5 | ||||||
Model for refer: ZP2-TB10MUGS-H5
ZP2-T
Vertical
B5
| Model | øA | øB | C | D | Adapter | |||||
|
① Vacuum inletdirection |
② Pad dia. |
③ Pad type |
④ Pad Material |
⑤ Vacuum inlet |
||||||
| ZP2 | T | B06 | MU |
N S U F GN GS |
B5 | 6 | 6.7 | 14.5 | 6.5 | ZP2A-M04 |
| B08 | 8 | 8.8 | 15 | 7 | ||||||
| B10 | 10 | 10.6 | ||||||||
| B15 | 15 | 15.6 | 16 | 8 | ||||||
Model for refer: ZP2-TB10MUGS-B5
Pad Material and Characteristics
⚪:Little or no influence △:Can be used depending on conditions X:Not suitable
|
Material
Characteristics
|
Symbol |
Durometer HS (±5°) |
Color of rubber |
Operating temperature range (°C) |
Oil resistance gasoline |
Oil resistance benzol |
Base resistance |
Acid resistance |
Weatherability |
Ozone resistance |
Abrasion resistance |
Waterproof |
Solvent resistance (Benzene, toluene) |
Application |
| NBR | N | 50 | Black | 0 ~ 120 | ⚪ | X | △ | △ | X | X | ⚪ | △ | X | Transfer of general work, Corrugated board, Veneer plate, Iron plate and others |
| Silicone rubber | S | 45 ~ 50 | White | -30 ~ 200 | X | X | △ | X | ⚪ | ⚪ | X | △ | X | Semiconductor, Removing from die-casting, Thin work, Food processor |
| Urethane rubber | U | 50 ~ 60 | Brown | 0 ~ 60 | ⚪ | X | X | X | △ | ⚪ | ⚪ | X | X | Corrugated board, Iron plate, Veneer plate |
| FKM | F | 60 | Black | 0 ~ 250 | ⚪ | ⚪ | X | ⚪ | ⚪ | ⚪ | △ | ⚪ | ⚪ | Chemical work |
| Conductive NBR | GN | 50 ~ 65 | 0 ~ 100 | △ | X | △ | X | △ | X | △ | △ | X | General work of semiconductor (Static electricity resistance) | |
| Conductive silicone rubbe | GS | 50 ~ 60 | -10 ~ 200 | X | X | △ | X | ⚪ | ⚪ | X | △ | X | Semiconductor (Static electricity) |
The above table covers only general characteristics of subject rubber materials. Blue symbol is customized models .
Application outline of pneumatic components (vacuum suction cup) in various industrial fields
I. Core strengths
II. Extraction of applications by industry
A. Medicine and medical industry
A.1：Core requirements: Clean and pollution-free (FDA/GMP compliant), gentle and non-damaging, and cross-contamination prevention
A.2 Key scenarios:
1. Pharmaceutical packaging: drug bottle / pharmaceutical plate / infusion bag pickup (food grade silicone suction cup, no particle shedding)
2. Medical device assembly: surgical instruments/medical catheters/pieces of prosthesis handling (adjustable negative pressure, deformation protection)
3. Biological laboratory: petri dish/centrifuge tube/reagent card transfer (chemical resistant, sterile compatible)
B. Electronics and semiconductor industry
B.1 Core requirements: anti-static (10⁶-10¹¹Ω), precision positioning (error ≤0.01mm), scratch resistance
B.2 Key scenarios:
1. Chip/Semiconductor: wafer handling, chip packaging (porous ceramic/anti-static silicone suction cup, uniform negative pressure to prevent rupture)
2. PCB/Components: Flexible PCB, micro components (0402 resistors) surface-mounted (thin silicone/gel/micro suction cups to prevent wrinkling/tearing)
3. Display: LCD/OLED panel, touch glass grab (high transparent material, no stains and scratches)
C. Automobile and auto parts industry
C.1 Core requirements: large suction (single suction disk ≥500N), multi-specification adaptation (metal/plastic/glass), non-slip
C.2 Key scenarios:
4. Body manufacturing: steel plate / door frame handling welding (large diameter rubber / multi-suction cup array, anti-slip texture)
5. Glass / Interior: Windscreen installation, leather seat surface transfer (temperature resistant silicone / sponge suction cups, deformation protection)
6. Parts: engine cylinder body / gearbox housing grab (vacuum + mechanical lock, anti-fall)
D. Food and packaging industry
D.1 Core requirements: Food grade material (FDA certified), easy to clean, crush resistant
D.2 Key scenarios:
1. Food handling: baked goods / fresh meat / fruit sorting (low suction sponge suction cup, odorless and easy to wash)
2. Packaging automation: packaging bag opening, sterile carton molding (static elimination/ multi-point suction, suitable for thin/hard packaging)
E. Logistics and warehousing industry
E.1 Core requirements: efficient adaptation (multiple specifications of goods), stable pressure, anti-fall
E.2 Key scenarios:
1. Carton handling: e-commerce carton sorting (adjustable suction array, vacuum pressure)
2. Plate/roll: Wood board/plastic film roll transfer (long strip/annular suction cup, uniform adsorption to prevent offset)
F. New energy and special industries
F.1 New energy (lithium battery/pv):
1. Lithium battery plate (anti-static porous suction cup, anti-dust), photovoltaic glass (large suction silicone suction cup, no scratch)
F.2 Printing and paper
1. Paper/printed matter capture (absorbent paper material, slight negative pressure to prevent tearing and ink contamination)
III. Summary of core adaptation logic
| Workpiece characteristics | Pipette adaptation programme | Corresponding industry scenarios |
| Thin / Fragile / Precision | Silicone/ceramic material, micro negative pressure, micro suction nozzle | Electronic semiconductors, pharmaceuticals |
| Heavy items / Large size | Rubber material, large diameter suction cup, multi-suction cup array | Automobiles, logistics panels |
| Health/Prevention of pollution | Food/medical grade silicone, easy to clean structure | Medicine, food |
| Soft / irregular surfaces | Sponge material, deformable suction cup | Car interiors, food |
| Antistatic requirements | Antistatic silicone, ion wind assisted | electronic semi-conductor |
